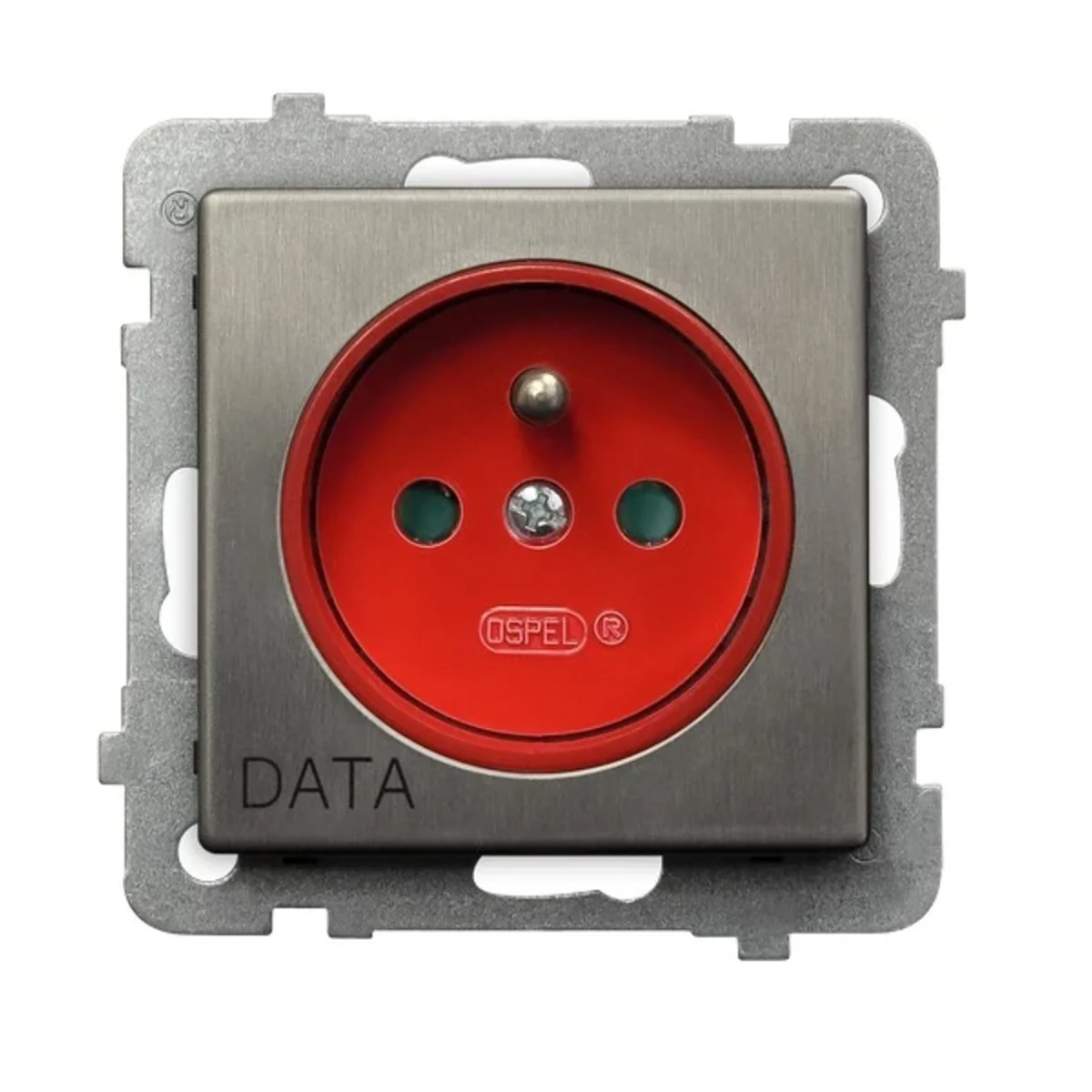

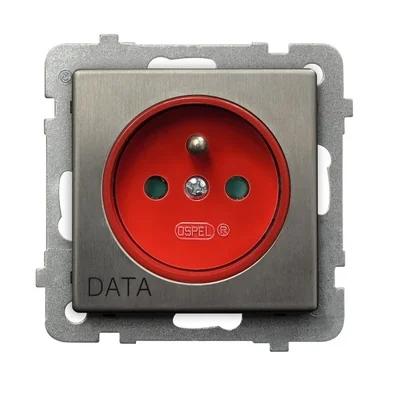

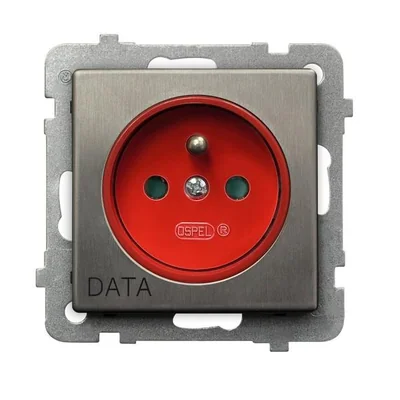

SONATA STEEL INOX Single socket with earthing DATA, stainless steel, equipped with shutters for current paths GP-1RMZDP/M/37

local index:
MEE537OSPE
Catalog No:
GP-1RMZDP/M/37
EAN code:
5907577450090
Manufacturer: OSPEL
Depth [mm]: 37
Number of sockets: 1
Color: silver | Red
Price:
20,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket from the Sonata Steel Inox series, from Ospel. The product part number is GP-1RMZDP/M/37.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • With shutters for current paths.
  • DATA.
  • Color steel inox.
  • Rated current 16A.
  • Rated voltage 230V.
  • Grade IP20.
  • Flushmount.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Sonata Stal Inox  series attracts attention with its appearance, it is a strong, characteristic accent on the wall. Particularly recommended for lofts and in the implementation of bold and minimalist projects.

Products from the Sonata Stal Inox series are made of high-quality, brushed stainless steel, characterized by modern style. These unusual and extremely elegant products will certainly find the appreciation of modern people and give the interiors a unique character.

Technical data

  • Depth [mm]
    37
  • Color
    silver Red
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    DATE
  • Rated current [A]
    16
  • Family
    SONATA STAINLESS STEEL
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Brushing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Imprint/indication
    Data
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9023
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Brass
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Brass
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
