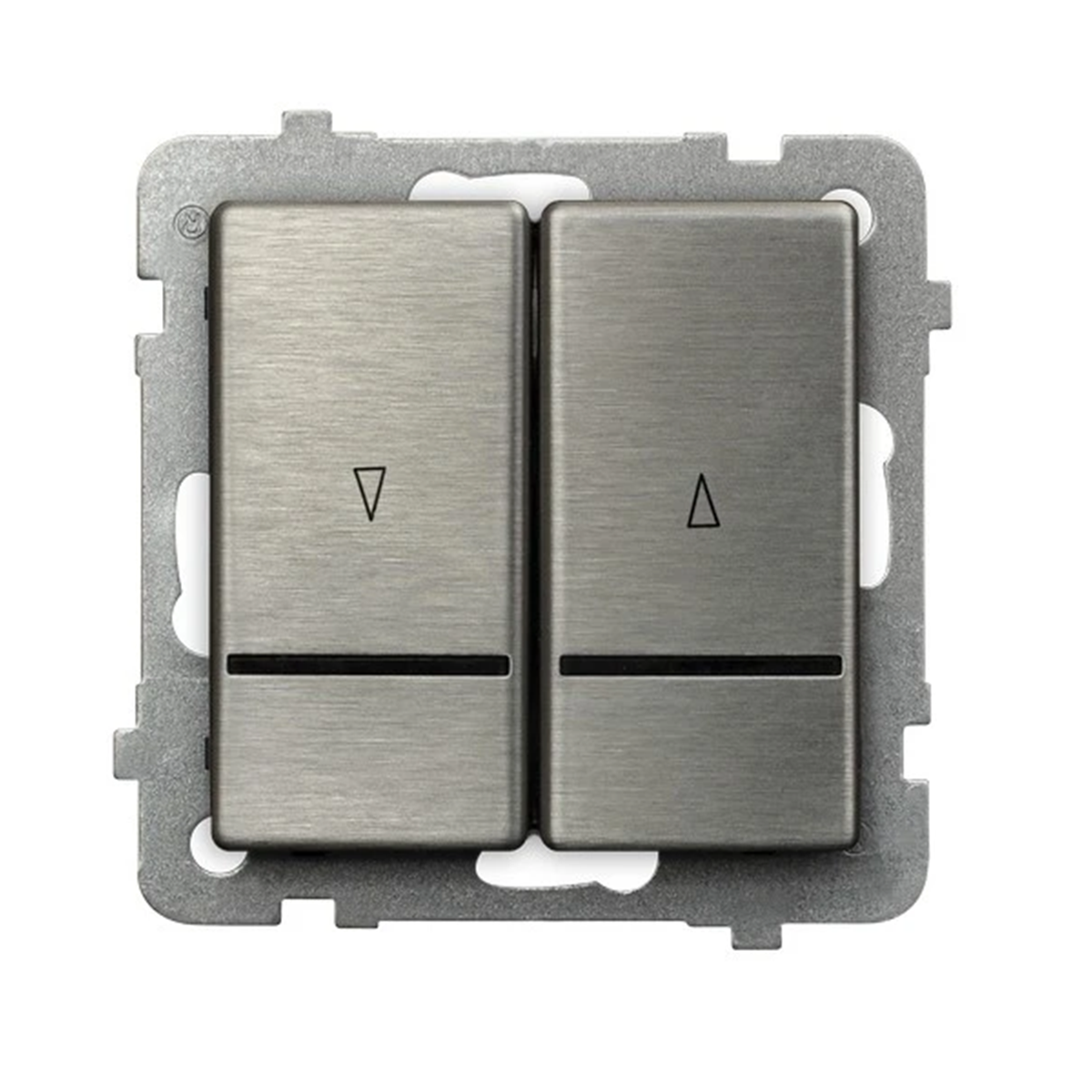

SONATA STEEL INOX Shutter connector with backlight stainless steel, without a frame ŁP-7RMS/M/37

local index:
MMO050OSPE
Catalog No:
ŁP-7RMS/M/37
EAN code:
5907577450007
Price:
31,27 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Louvre connector from the Sonata Steel Inox series, from Ospel. The product's catalog number is ŁP-7RMS/M/37.

  • Making.
  • With backlight.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SONATA STAINLESS STEEL
  • Width [mm]
    71
  • Version
    Single
  • Surface protection
    Brushing
  • Backlight
    Yes
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LTS lamp
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    26
  • Variant
    Two-position normally open
  • Exact material
    stainless steel
  • Backlight color
    Blue

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Mechanical controllable
    yes
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9023
  • Label space/information surface
    no
  • Rated current
    10 A
  • Number of buttons
    2
  • Min. depth of built-in installation box
    40 mm
  • Model
    Other
  • Blokada elektryczna i mechaniczna
    yes
  • Electronic controllable
    no
  • Material
    Metal
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • Colour
    Brass
  • Transparent
    no
  • Suitable for degree of protection (IP)
    IP20
  • Nominal voltage
    250 V
  • Number of modules (module system)
    1
