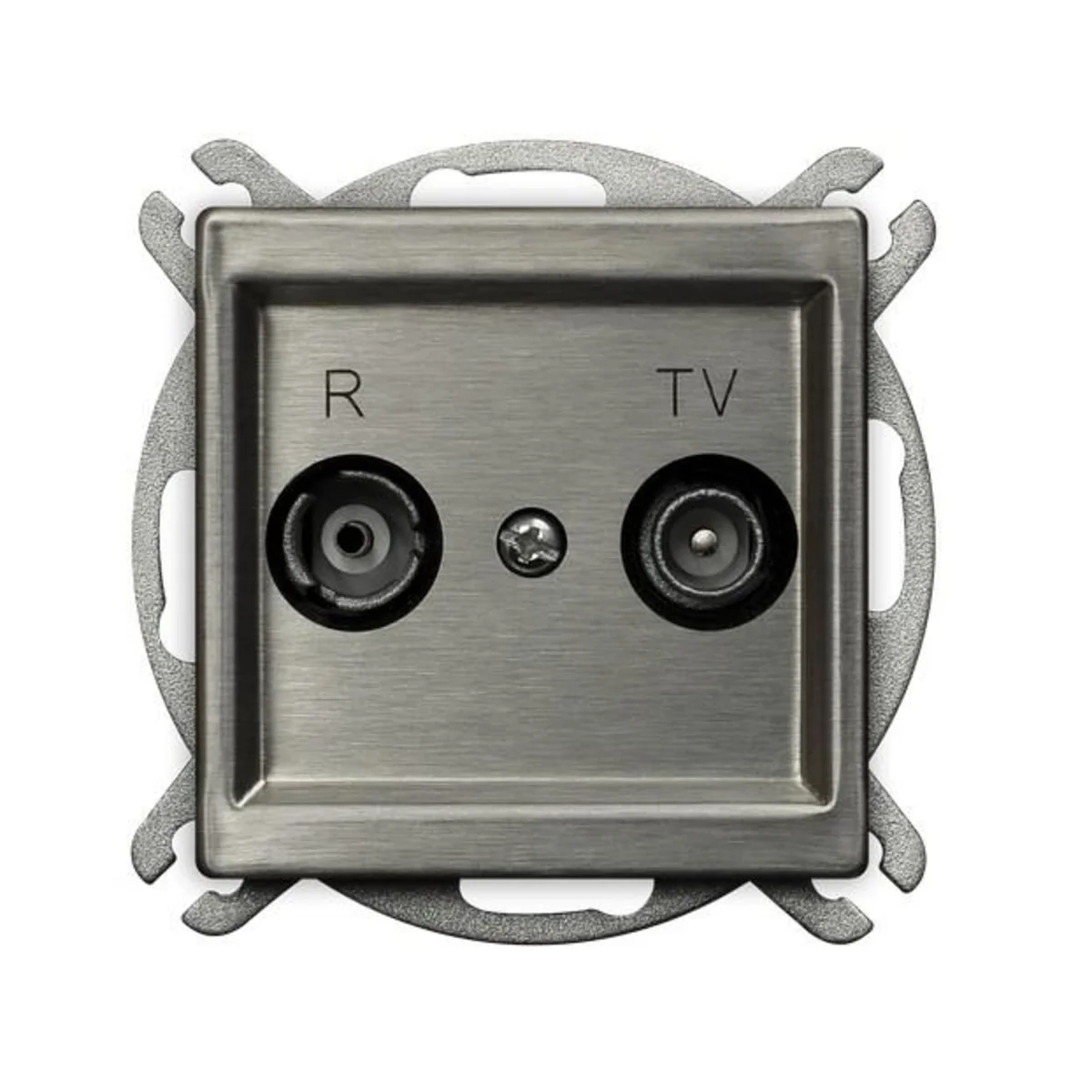

SONATA STEEL INOX RTV end socket ZAR stainless steel GPA-RMK/M/37

local index:
MEA273OSPE
Catalog No:
GPA-RMK/M/37
EAN code:
5907577450151
Manufacturer: OSPEL
Depth [mm]: 36
Number of sockets: 2
Color: Silver
Price:
24,32 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV antenna socket from the Sonata Stal Inox series. It is designed for parallel installation, in which an independent cable from the antenna runs to each receiver. To be fitted with a frame.

Technical data

  • Depth [mm]
    36
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 1-1.5 TV: 1-1.5
  • Version
    Final
  • Surface protection
    Brushing
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    26
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    SONATA STAINLESS STEEL
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    2.5 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9023
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Other
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
