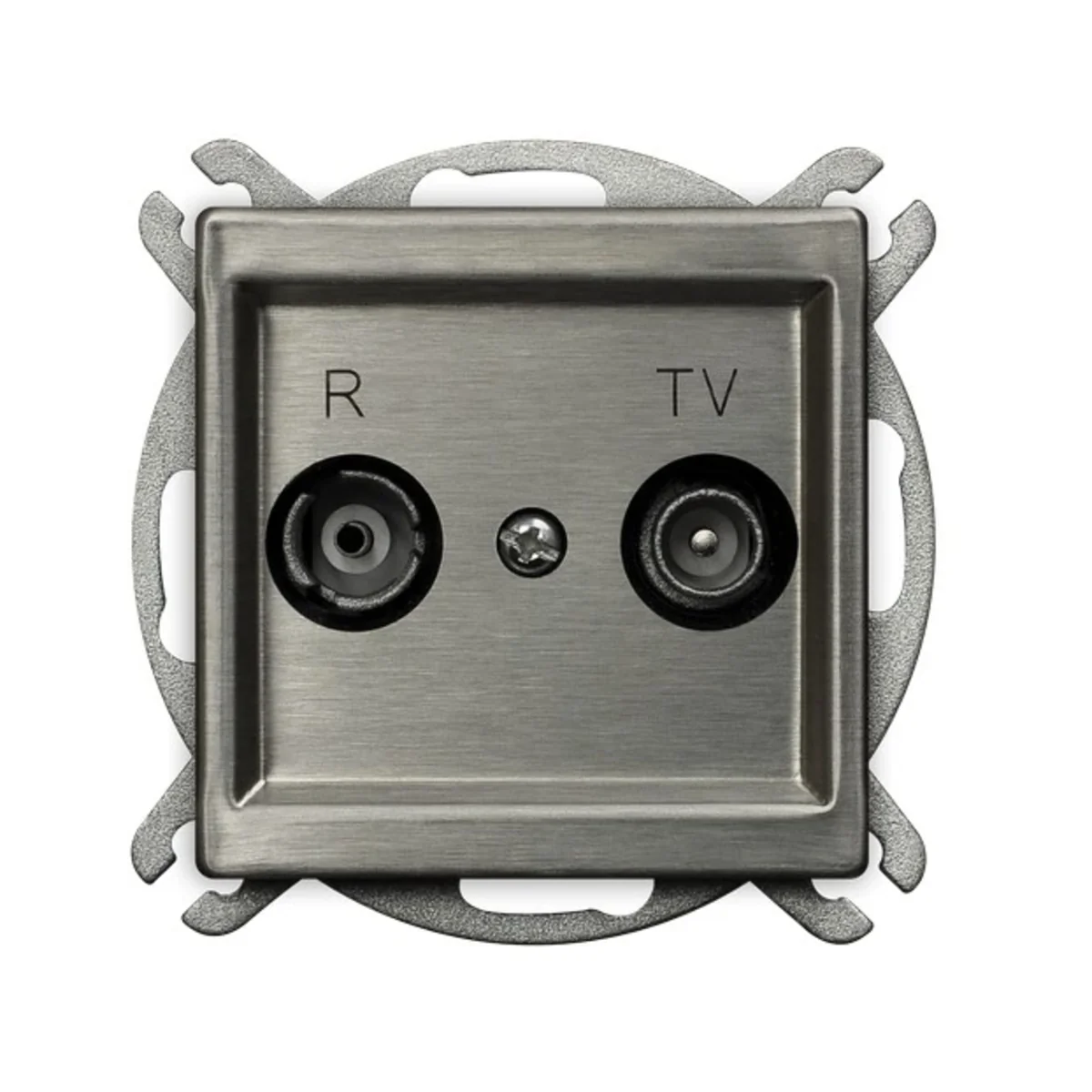

SONATA STEEL INOX Pass-through RTV socket ZAP-14 stainless steel GPA-14RMP/M/37

local index:
MEA087OSPE
Catalog No:
GPA-14RMP/M/37
EAN code:
5907577450120
Manufacturer: OSPEL
Depth [mm]: 36
Number of sockets: 2
Color: Silver
Price:
26,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

RTV antenna socket pass-through socket from the Sonata Stal Inox series. It is designed for serial installation, where one cable passes through various receivers. To be fitted with a frame.

Technical data

  • Depth [mm]
    36
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 14 TV: 14
  • Version
    through
  • Surface protection
    Brushing
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    26
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    Yes
  • Family
    SONATA STAINLESS STEEL
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    14 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9023
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Other
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
