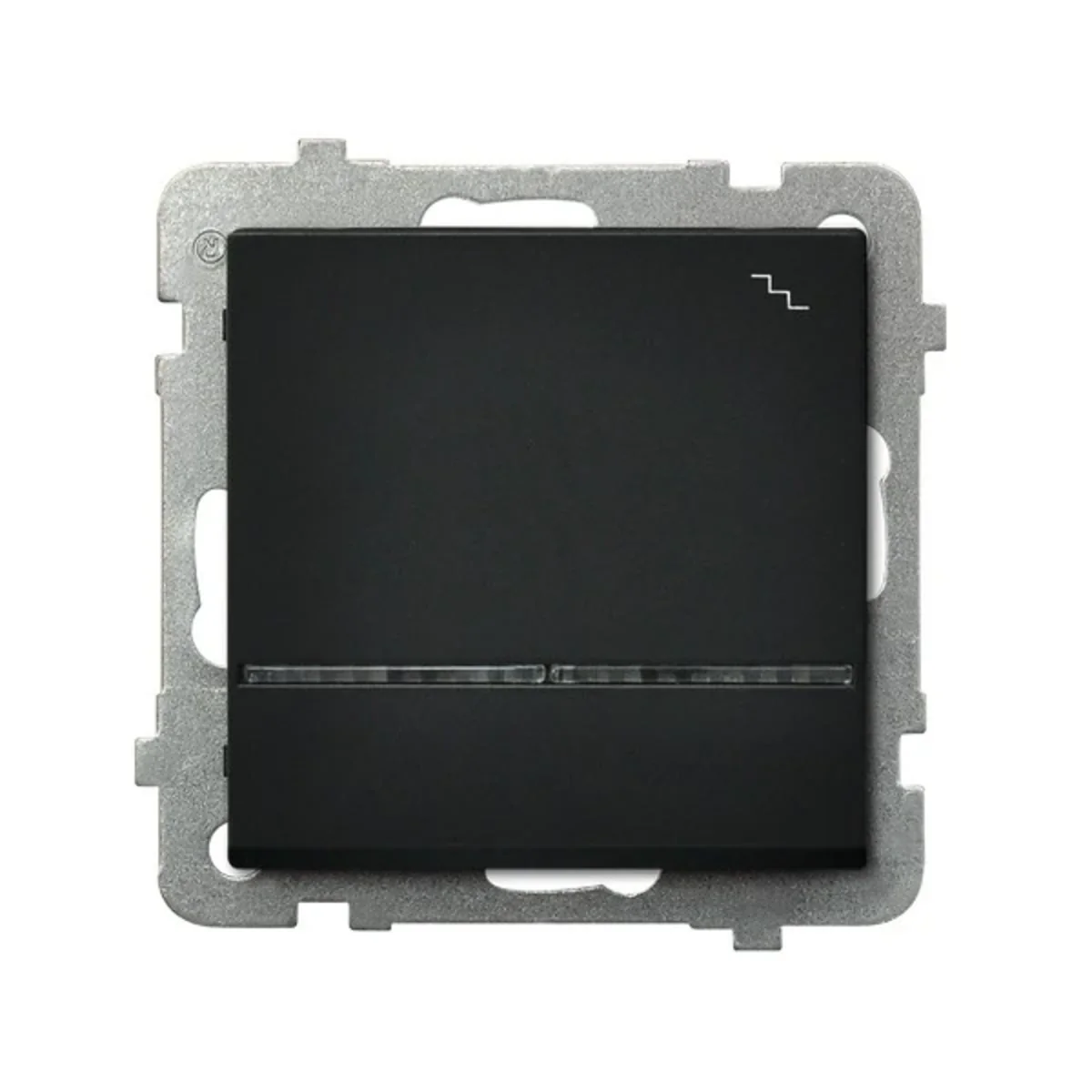

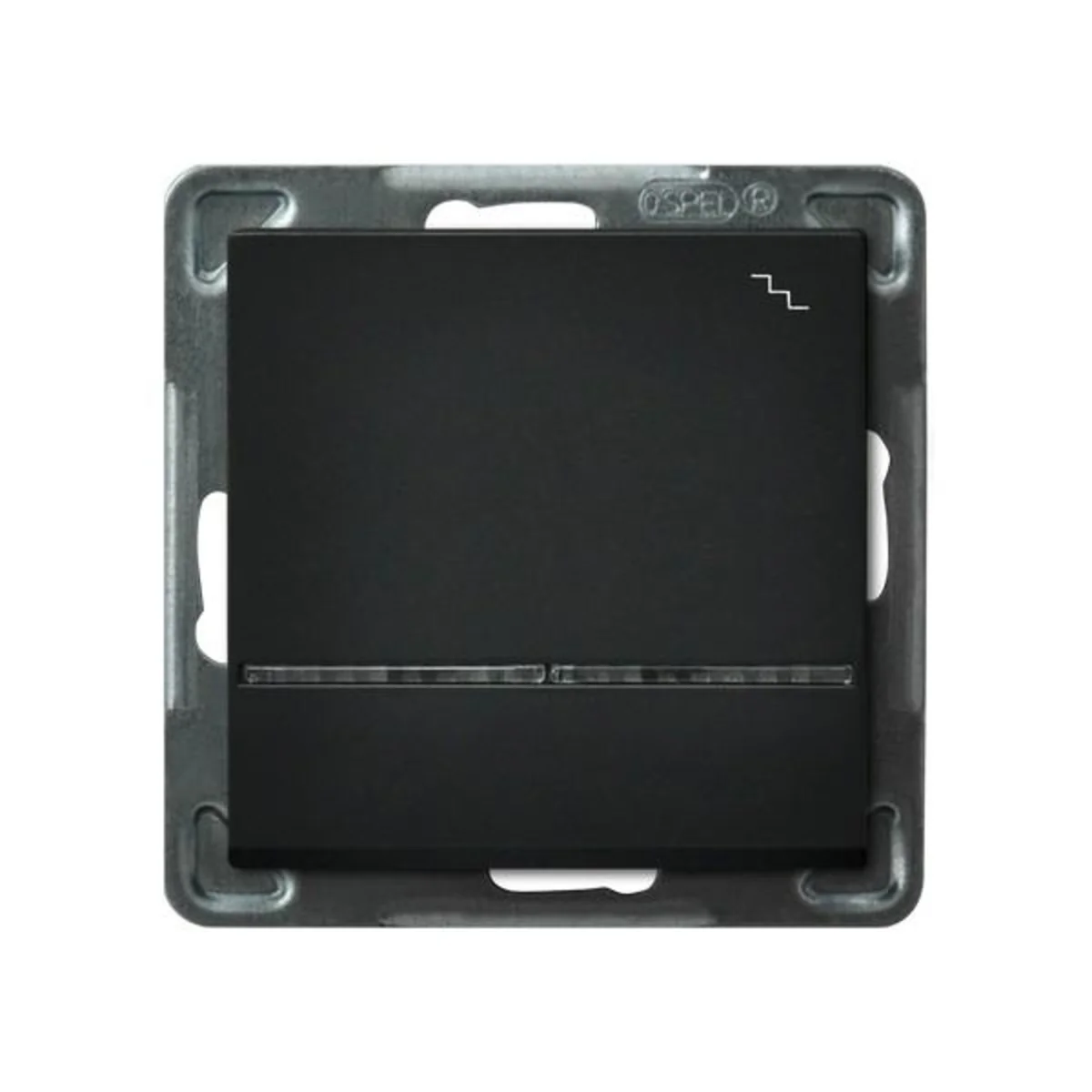

SONATA Stair switch with backlight black metallic, without frame ŁP-3RS/M/33
local index:
MMS077OSPE
Catalog No:
ŁP-3RS/M/33
EAN code:
5907577446178
Price:
8,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Sonata series, from the manufacturer Ospel. The product catalog number is ŁP-3RS/M/33.
FEATURES
- Single.< /li>
- With blue backlight (LTS lamp).
- Symbol "stairs" on
- Module without frame.
- Threadless terminals.
- Color metallic black .
- Rated current 16AX.
- Rated voltage 230V.
- Mounting flush.
- Ingress protection IP20.
- Dimensions: 71 x 71 mm (height x width).
SERIES DESCRIPTION
The Sonata collection is a comprehensive and functional arrangement solution meeting the highest technological standards . This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]42
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
SymbolStairs
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
BacklightYes
-
Terminal typeThreadless
-
Exact materialPlastic Metal
-
Backlight colorBlue
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Width [mm]71
-
Height [mm]71
-
Accurate colorBlack metallic
-
Mounting depth [mm]25
-
For the frame systemYes
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourBlack
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9005
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
