81054
0
SONATA STAINLESS STEEL Single socket with grounding stainless steel GP-1RMZ/M/37
local index:
MEE533OSPE
Catalog No:
GP-1RMZ/M/37
EAN code:
5907577450069
Price:
19,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

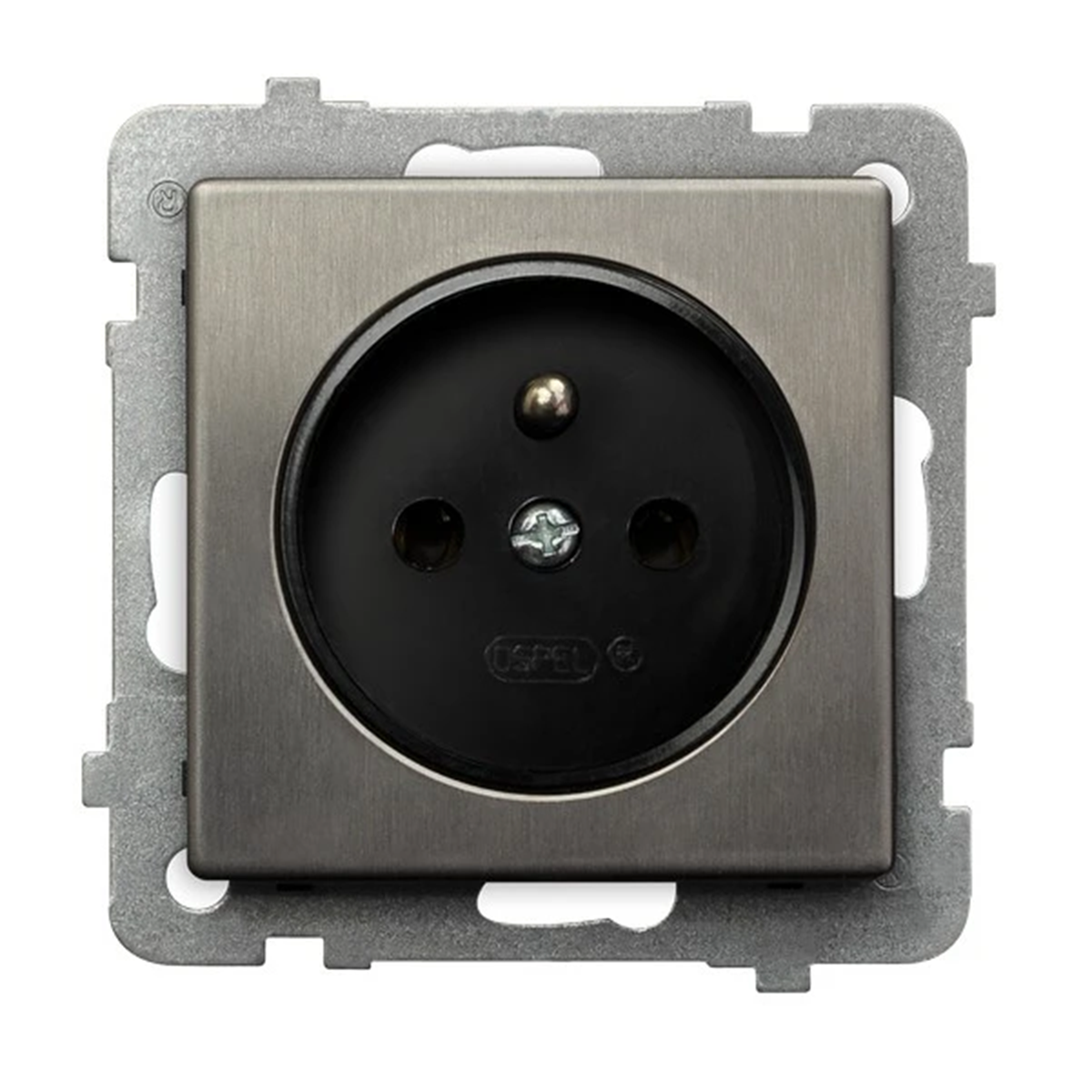

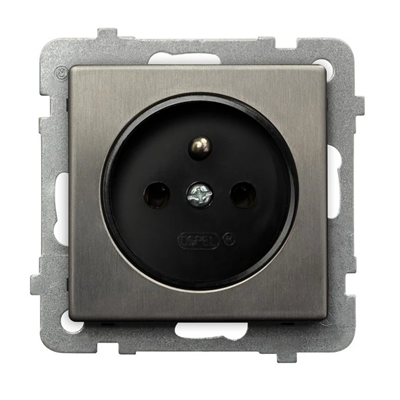

Electric socket from the Sonata Steel Inox series, from Ospel. The product part number is GP-1RMZ/M/37.
FEATURES
- Single.
- Earth.
- To be fitted with frame.
- Thread terminals .
- Color stainless steel.
- Rated current 16A.
- Rated voltage 230V .
- Ingress protection IP20.
- flush mounting.
- Dimensions: 71 ;x 71 mm (height x width).
SERIES DESCRIPTION
Series Sonata Steel Inox draws attention with its appearance, it is a strong, characteristic accent on the wall. Particularly recommended for lofts and for the implementation of bold and minimalist projects.
Products from the Sonata Stal Inox series are made of high-quality, brushed stainless steel, characterized by modern style. These unusual and extremely elegant products will certainly find the appreciation of modern people and give the interiors a unique character.
Technical data
-
Depth [mm]37
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA STAINLESS STEEL
-
Width [mm]71
-
GroundHurt
-
Surface protectionBrushing
-
BacklightNO
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorstainless steel
-
Mounting depth [mm]26
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourBrass
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialMetal
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9023
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityBrass
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth38 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
