SONATA STAINLESS STEEL NO switch "bell" with illuminated stainless steel, without frame ŁP-6RMS/M/37
local index:
MMZ137OSPE
Catalog No:
ŁP-6RMS/M/37
EAN code:
5907577449995
Price:
20,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

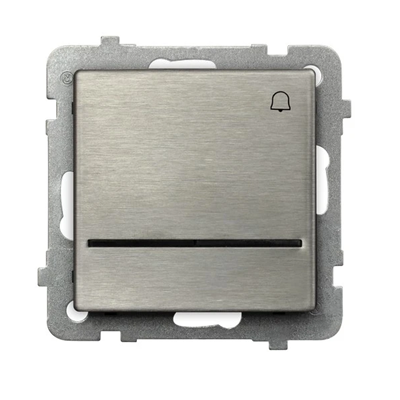

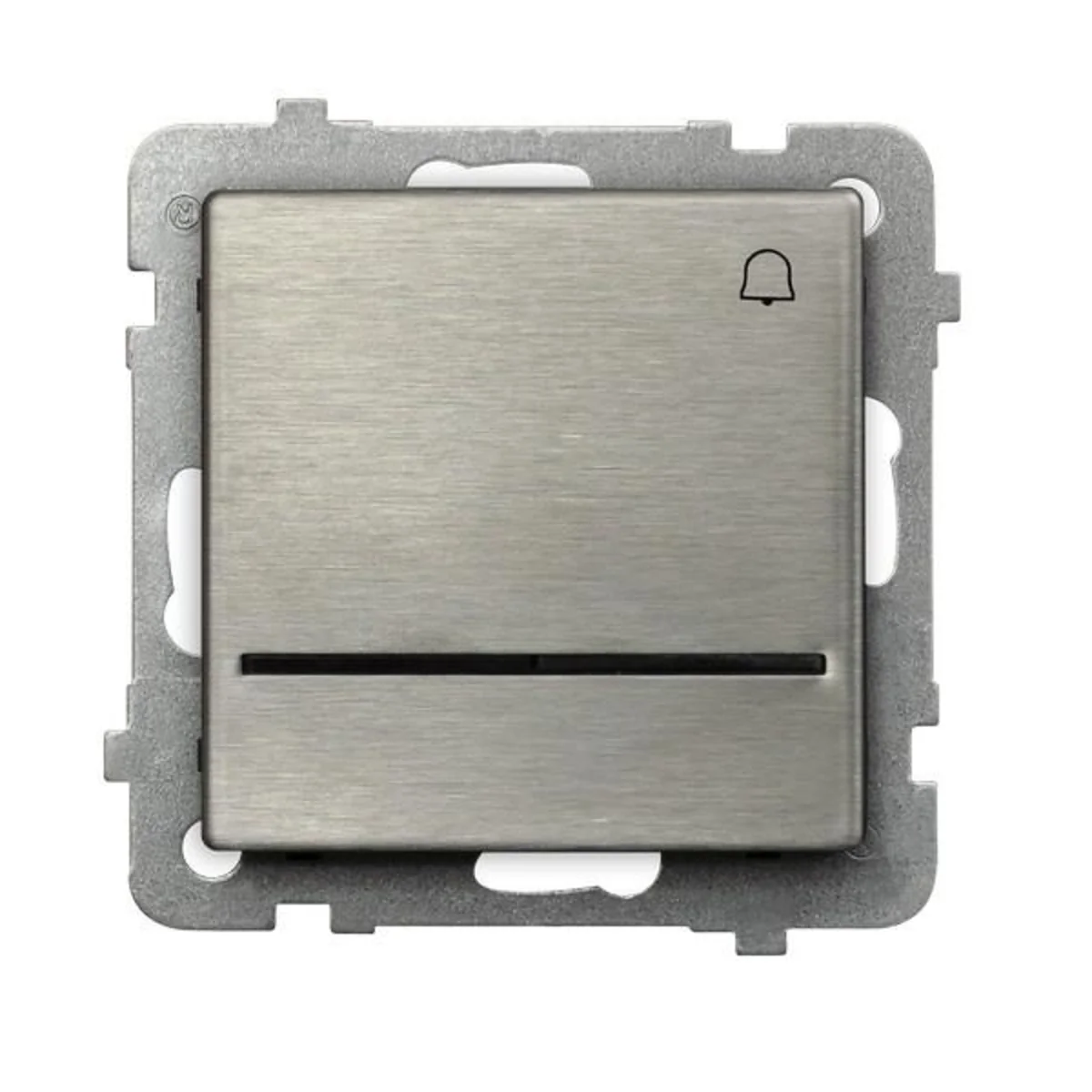

Short-circuit switch "bell" with backlight, from Sonata Steel Inox series, from Ospel. The product catalog number is ŁP-6RMS/M/37. In stainless steel color.
FEATURES
- To be equipped with a frame.
- "Bell" symbol on the key.
- Blue highlight.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialMetal
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySONATA STAINLESS STEEL
-
SymbolBell
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorstainless steel
-
Mounting depth [mm]26
-
VariantBell
-
Exact materialstainless steel
-
Backlight colorBlue
-
Number of keys1
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShort
-
Level of securityIP20
-
Width [mm]71
-
VersionConfident
-
Surface protectionBrushing
-
BacklightYes
-
Terminal typeThreadless
-
For the frame systemYes
-
Backlight typeLTS
-
PKWIU27.33.11.0
Other technical data
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialMetal
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9023
-
IlluminationYes
-
Type of lightingGlow lamp
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
-
Assembly arrangementBasic element with complete housing
-
Push button switchYes
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityOther
-
Surface protectionUntreated
-
ColourBrass
-
Label space/information surfaceNo
-
Function lightingOrientation
-
Suitable for degree of protection (IP)IP20
-
Rated current10 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
