SONATA Speaker socket, single black metallic GG-1R/M/33

local index:
MEG013OSPE
Catalog No:
GG-1R/M/33
EAN code:
5907577446666
Manufacturer: OSPEL
Depth [mm]: 40
Number of sockets: 1
Color: Black
Price:
10,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

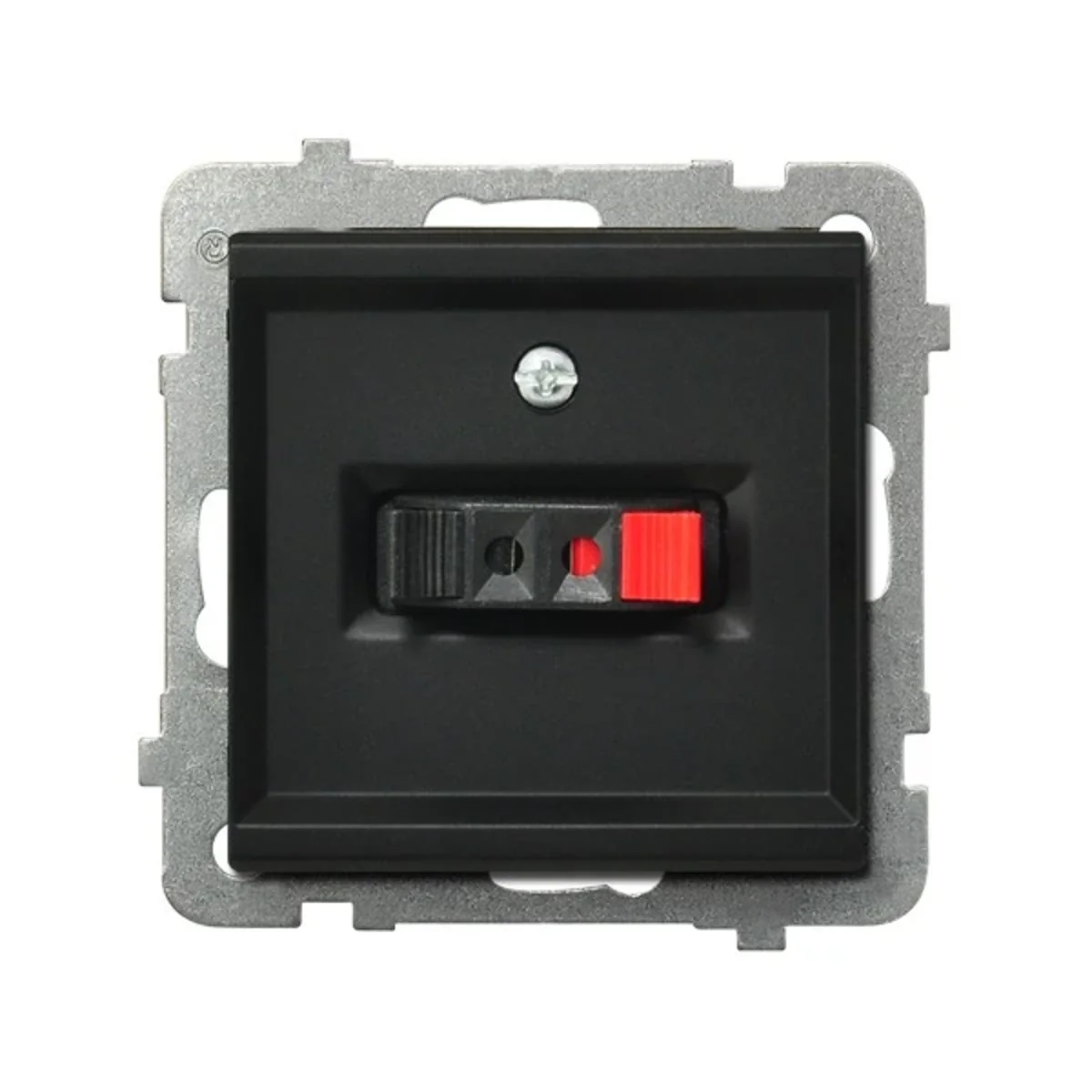

Speaker socket from the Sonata series, from Ospel. The product part number is GG-1R/M/33.



FEATURES

  • Single .
  • Borderless module.
  • Solderable.
  • Color black metallic.
  • flushmount.
  • Wire connectivity 0.75 mm2 .



SERIES DESCRIPTION

The Sonata  collection is a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square. Products from the Sonata series, diversified in terms of usability and safety, are easily used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces - kitchens and bathrooms. The loudspeaker socket has all the features of this unique series.

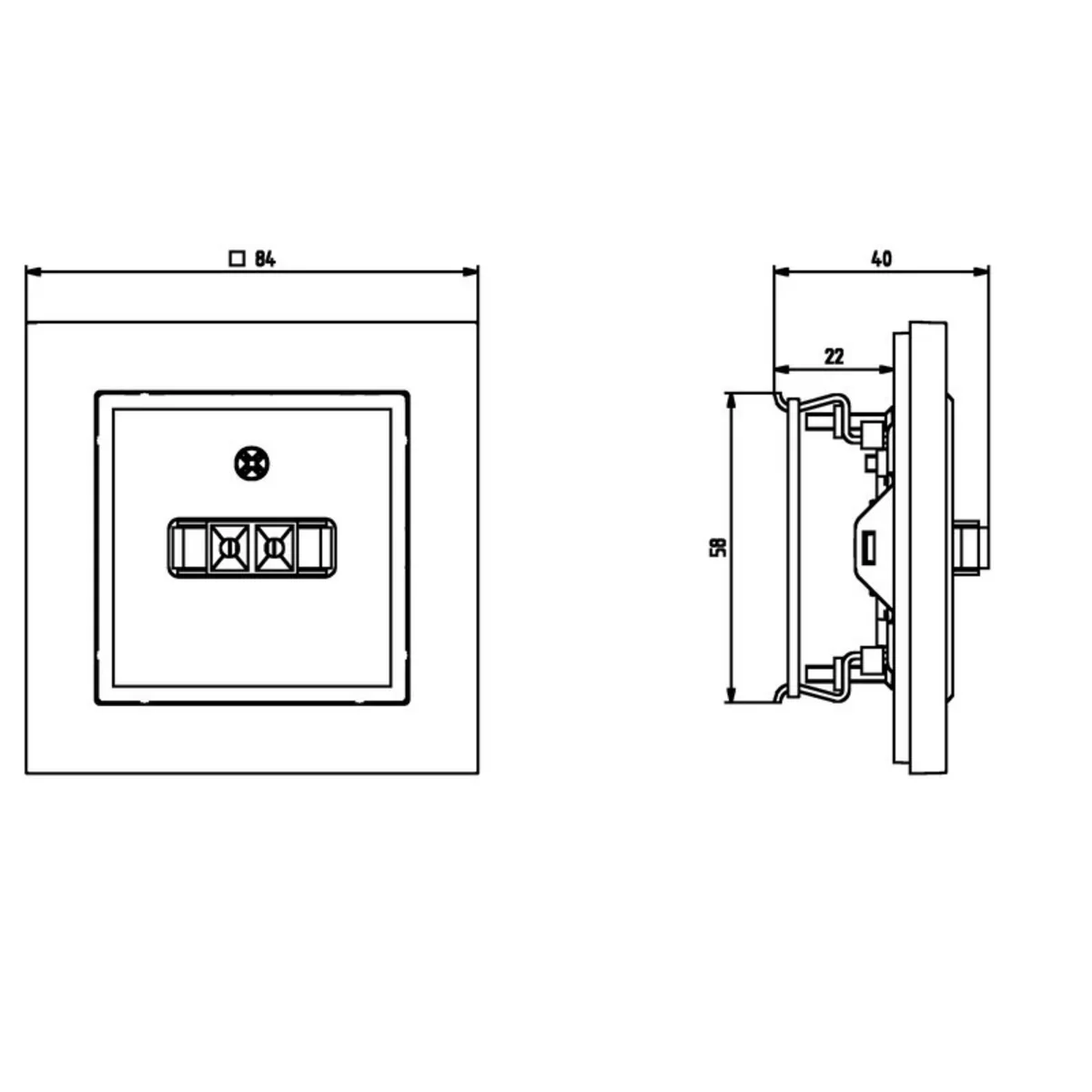

Technical data

  • Depth [mm]
    40
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    SONATA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    20
  • Variant
    Pin-type plugs
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Type
    speaker
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    For soldering
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Other technical data

  • Surface mounting
    No
  • Floor box/subfloor mounted
    No
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    Yes
  • Category
    Other
  • RAL-number
    9005
  • Shielded buses
    No
  • Separate earthing connection
    No
  • Compatible with third-party covers
    No
  • Mounting method shielding connection
    None
  • With dust cover
    No
  • Mechanical coding
    No
  • Device width
    71 mm
  • Device depth
    40 mm
  • Duct installation
    No
  • Type of fastening
    Screwing
  • Type of connector
    Other
  • Suitable for number of connectors
    1
  • Colour
    Black
  • Connection type
    Other
  • Shielded housing
    No
  • With label space
    Yes
  • Separate strain relief
    No
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    No
  • Device height
    71 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
