el12 Electrical equipment Sockets Flush-mounted sockets SONATA Single socket with shutters silver mat
el12 Electrical equipment Sockets Electric sockets SONATA Single socket with shutters silver mat

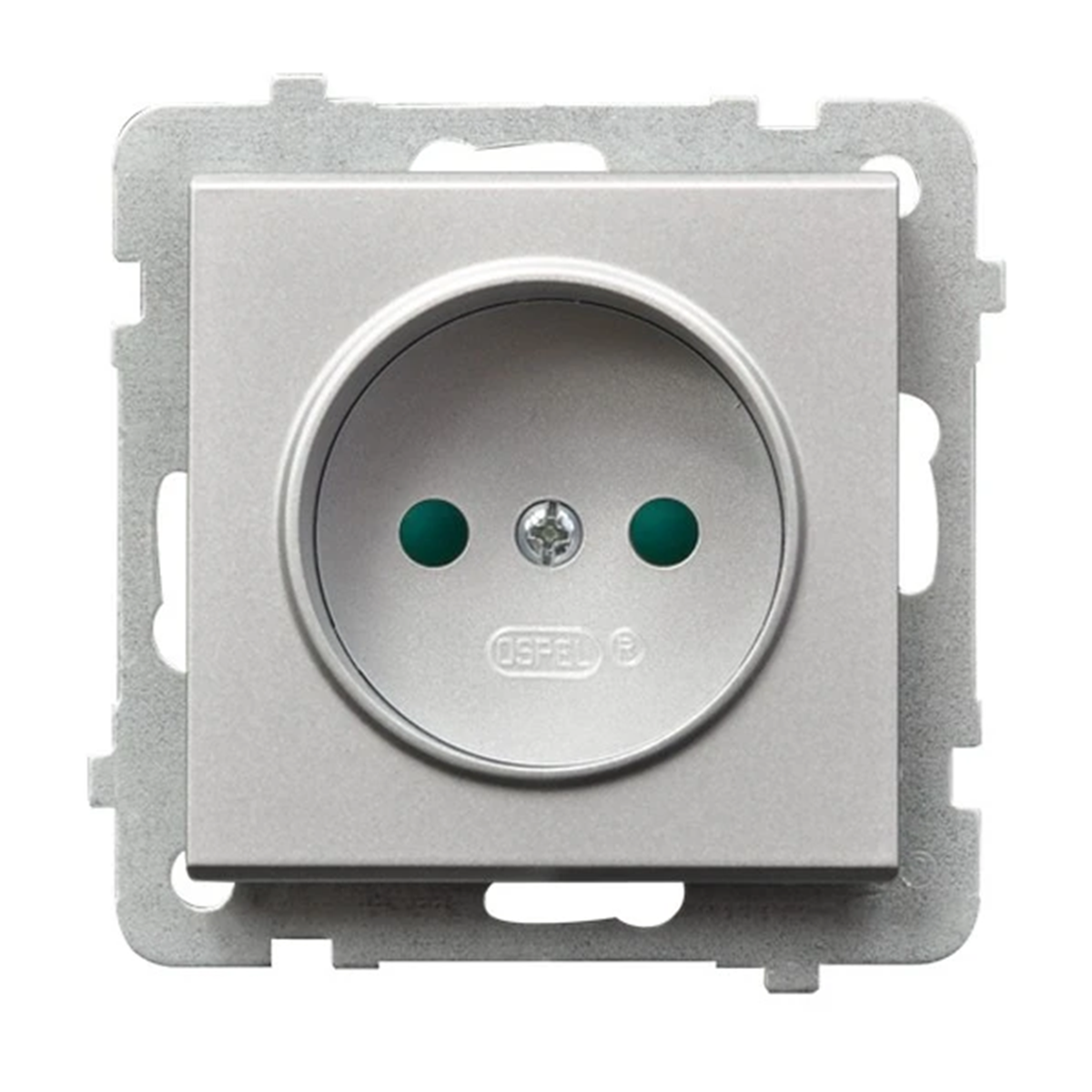

SONATA Single socket with shutters silver mat
SONATA Single socket with shutters silver mat

Click on the photo to enlarge

SONATA Single socket with shutters silver mat
SONATA Single socket with shutters silver mat
OSPEL

SONATA Single socket with shutters silver mat GP-1RP/M/38

local index:
MEE546OSPE
Catalog No:
GP-1RP/M/38
EAN code:
5907577447298
Price:
6,29 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Electric socket from the Sonata series, from the manufacturer Ospel. The product part number is GP-1RP/M/38.



FEATURES

  • Single.
  • Ungrounded.
  • To be fitted with frame.
  • Thread terminals .
  • With shutters for current paths.
  • Color matte silver.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71 x 71 mm (height x width).



< h3>SERIES DESCRIPTION

The Sonata  collection is a comprehensive and functional arrangement solution meeting the highest technological standards. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Print the product sheet Report an error

Technical data

  • Depth [mm]
    38
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    matt silver
  • Mounting depth [mm]
    24
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    no
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    yes
  • Colour
    Silver
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    no
  • Number of active contacts (round)
    0
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    7047
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm
