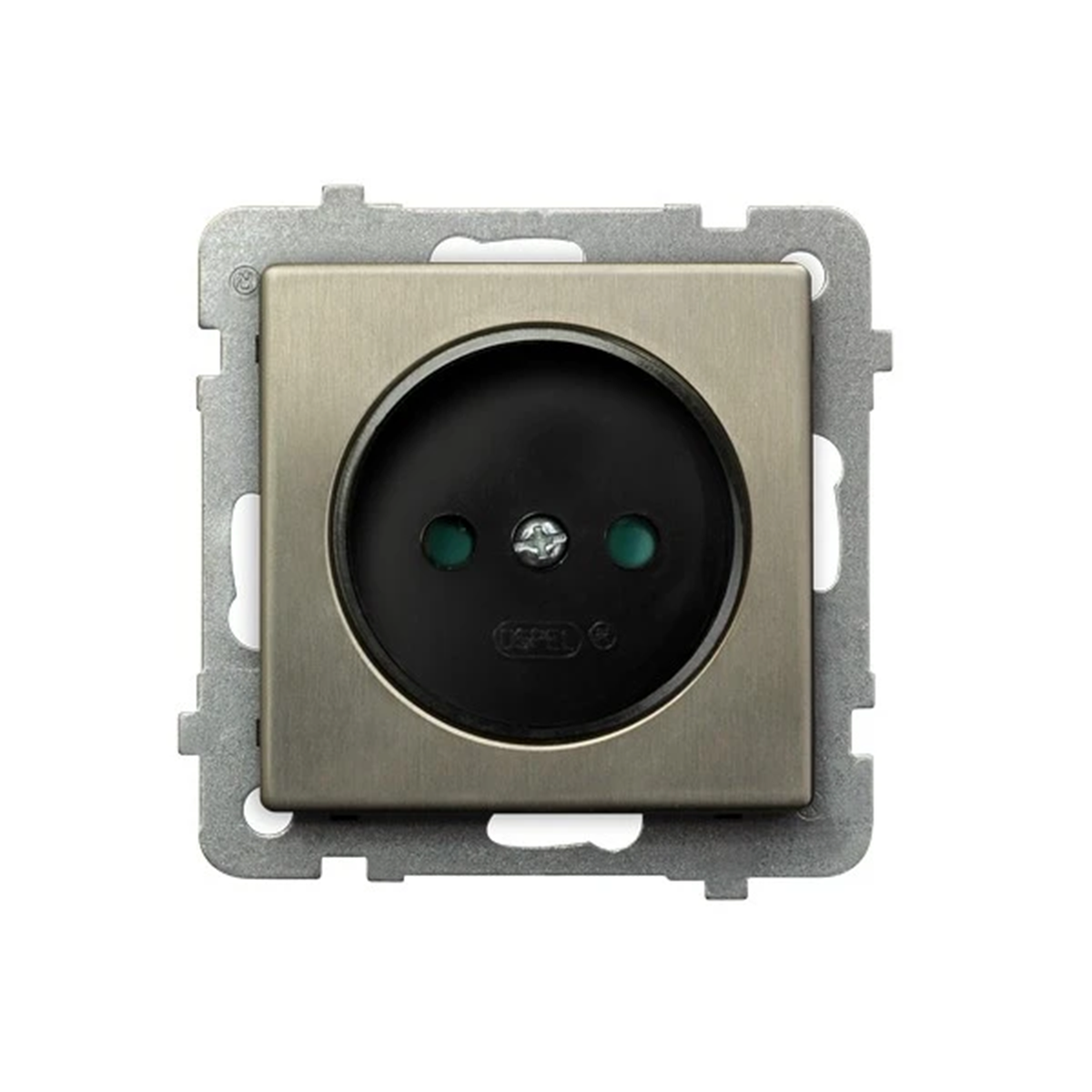

SONATA Single socket with shutters new silver GP-1RMP/M/44

Lokaler Index:
MEE532OSPE
Katalognummer:
GP-1RMP/M/44
EAN-Code:
5907577471170
Hersteller: OSPEL
Depth [mm]: 37
Number of sockets: 1
Color: Silver
Preis:
101,44 zł
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Electric socket from the Sonata New Silver series, from the Ospel manufacturer. The product part number is GP-1RMP/M/44.



FEATURES

  • Single.
  • Ungrounded.
  • To be fitted with frame.
  • Thread terminals .
  • With shutters for current paths.
  • Color new silver.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71 x 71 mm (height x width).



< h3>SERIES DESCRIPTION

The accessories of the Sonata New Silver series are made of antimicrobial copper. The addition of nickel present in the products in this series makes them resistant to discoloration and oxidation of the surface. The silvery white luster of nickel also gives these products an elegant, sophisticated appearance and high aesthetic values. This equipment can be used not only at home, but also in public places: schools, kindergartens, hospitals, shopping centers, as well as in other public buildings.

Technische Daten

  • Depth [mm]
    37
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA NEW SILVER
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    Brushing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    New silver
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Weitere technische Daten

  • Model
    Multi-standard socket
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    1
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9023
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Brass
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Brass
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm

Hersteller-Details

  • Hersteller
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Großpackungen

Eine Art Paket Pudełko
Menge 4 stk.
Breite (m) 0,140
Länge (m) 0,162
Tiefe (m) 0,090
