SONATA Single socket with grounding white GP-1RZ/M/00

local index:
MEE567OSPE
Catalog No:
GP-1RZ/M/00
EAN code:
5907577444273
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 1
Color: White
Price:
5,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 75 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

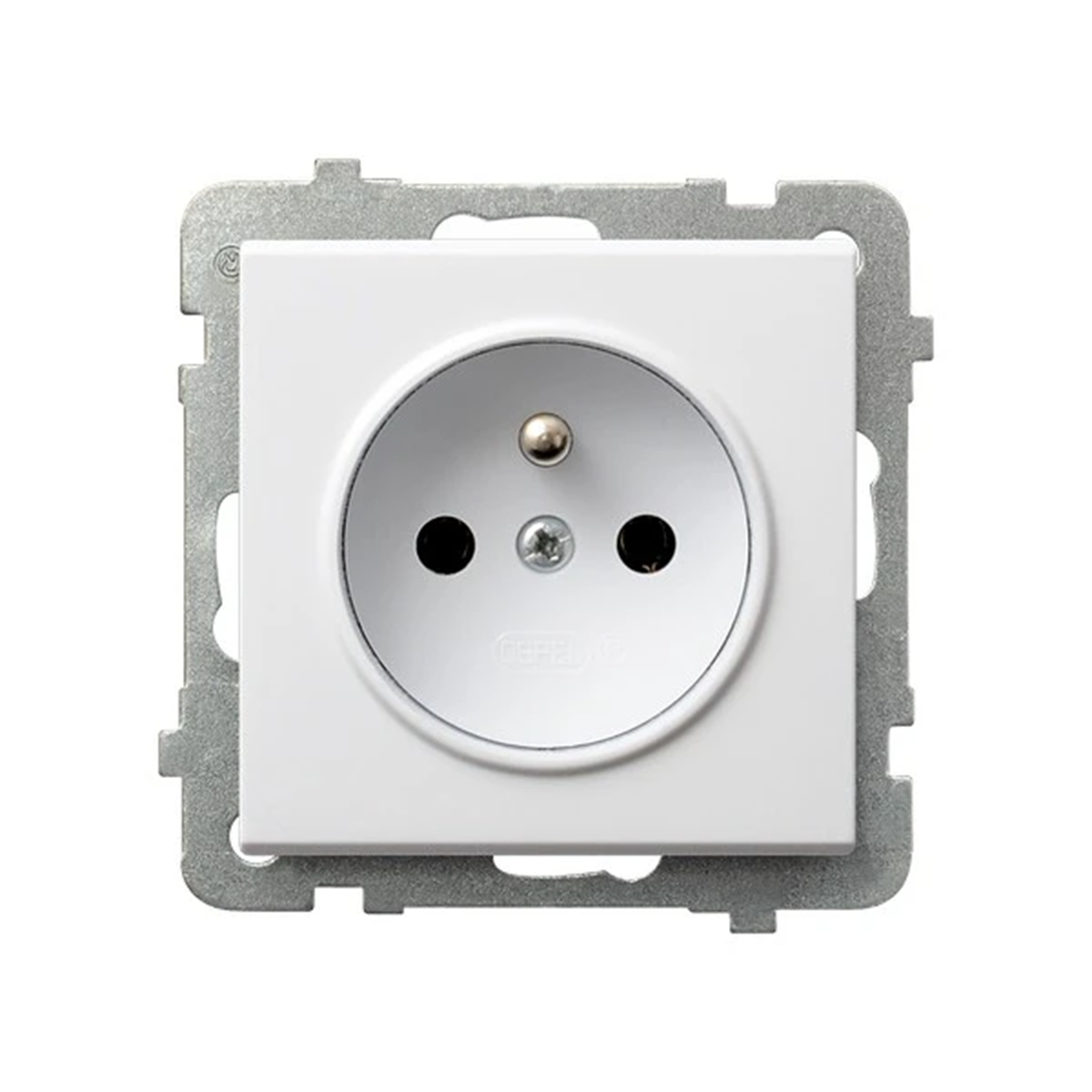

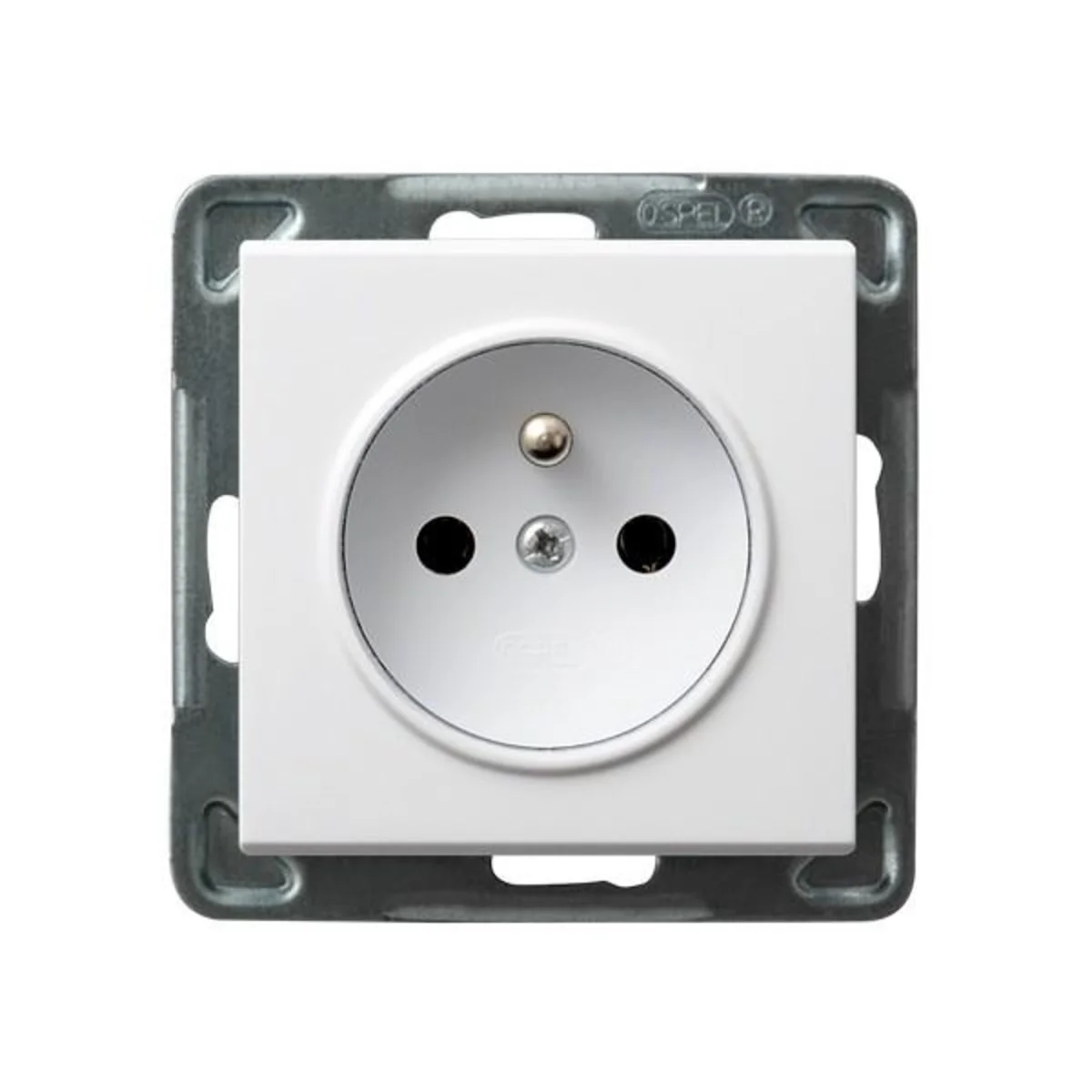

Electric socket from the Sonata series, from the manufacturer Ospel. The product part number is GP-1RZ/M/00.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V< /strong>.
  • Ingress protection IP20.
  • flush mounting.

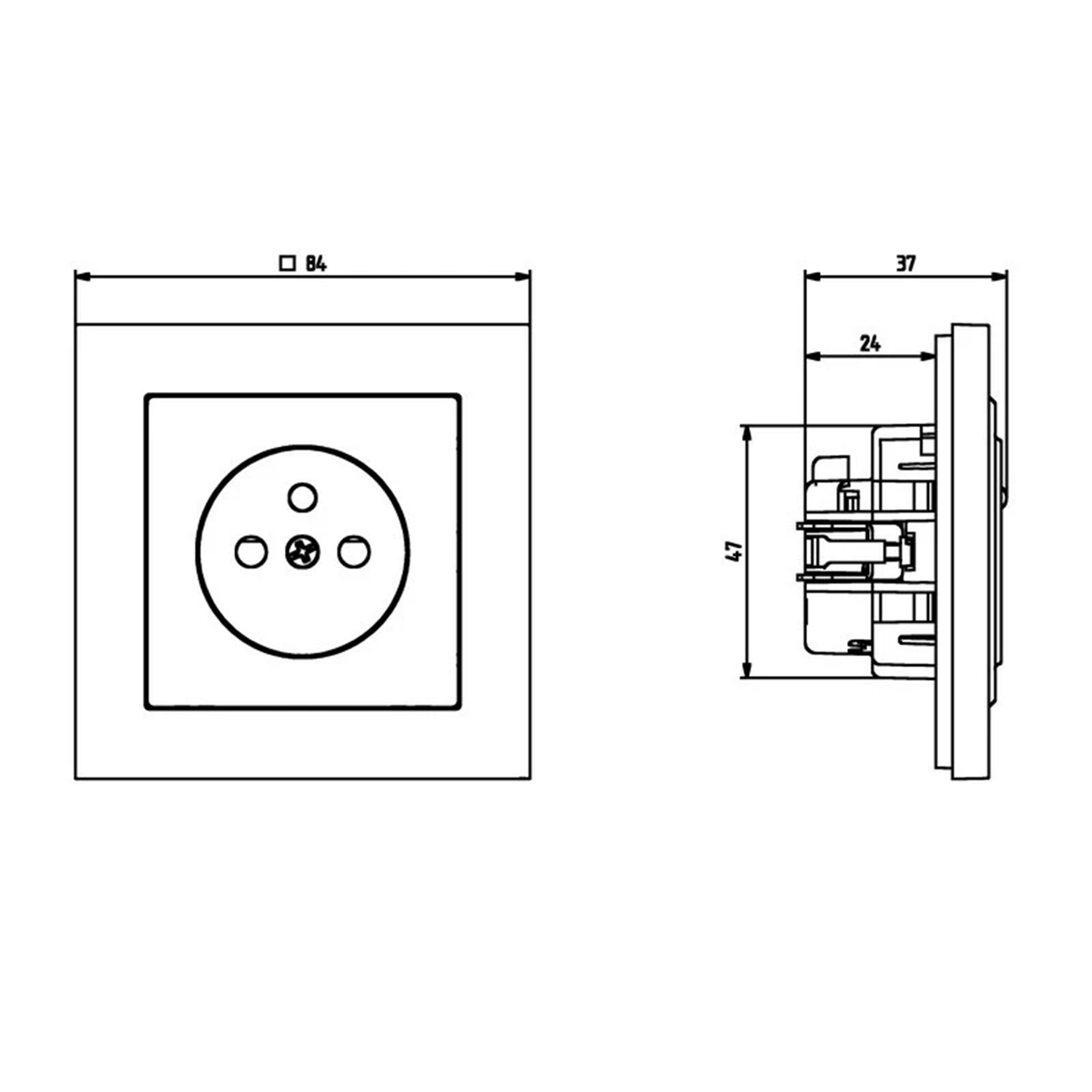

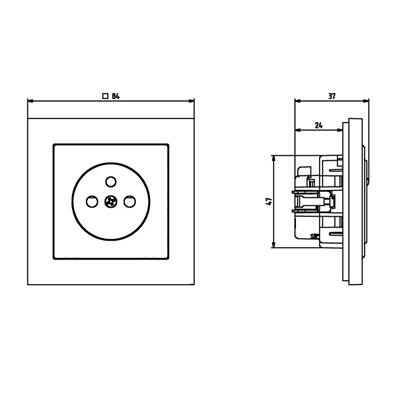

  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Sonata  collection corresponds the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Technical data

  • Depth [mm]
    38
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Mounting depth [mm]
    24
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    no
  • Colour
    White
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • With miniature fuse
    no
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • With on/off switch
    no
  • Rotated central insert
    no
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    yes
  • Number of active contacts (round)
    1
  • With signal lamp
    no
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9003
  • Lockable
    no
  • Insulated mounting
    no
  • With orientation lighting
    no
  • Fault current protection
    no
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm
