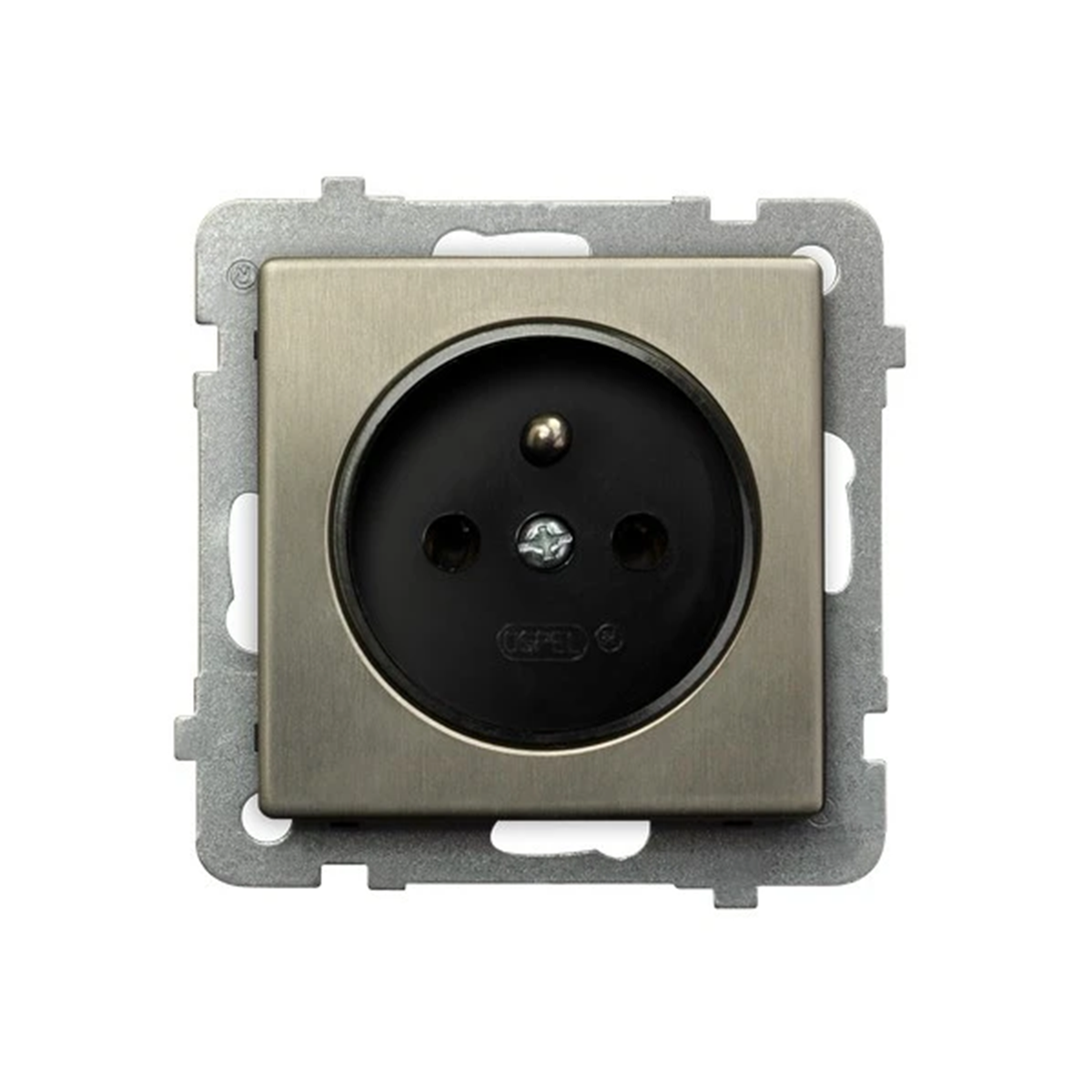

SONATA Single socket with grounding silver GP-1RMZ/M/44

Indice locale:
MEE534OSPE
Numero di catalogo:
GP-1RMZ/M/44
Codice EAN:
5907577461331
Produttore: OSPEL
Depth [mm]: 37
Number of sockets: 1
Color: Silver
Prezzo:
23,59 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Electric socket from the Sonata New Silver series, from the Ospel manufacturer. The product part number is GP-1RMZ/M/44.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • Color new silver.
  • Rated current 16A.
  • Rated voltage 230V .
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71  ;x 71 mm (height x width).



SERIES DESCRIPTION

Accessories from the Sonata series New Silver is made of antimicrobial copper. The addition of nickel present in the products of this series makes them resistant to discoloration and oxidation of the surface. The silvery white luster of nickel also gives these products an elegant, sophisticated appearance and high aesthetic values. This equipment can be used not only at home, but also in public places: schools, kindergartens, hospitals, shopping centers, as well as in other public buildings.

Dati tecnici

  • Depth [mm]
    37
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA NEW SILVER
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Brushing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    New silver
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Brass
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9023
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Brass
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
