SONATA Single socket with grounding cashmere GP-1RZ/M/82

local index:
MEE739OSPE
Catalog number:
GP-1RZ/M/82
EAN code:
5906729029672
Manufacturer: OSPEL
Depth [mm]: 38
Number of sockets: 1
Color: Beige
Price:
34,49 zł
gross / pcs.
(including VAT 23%)
up to a week
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

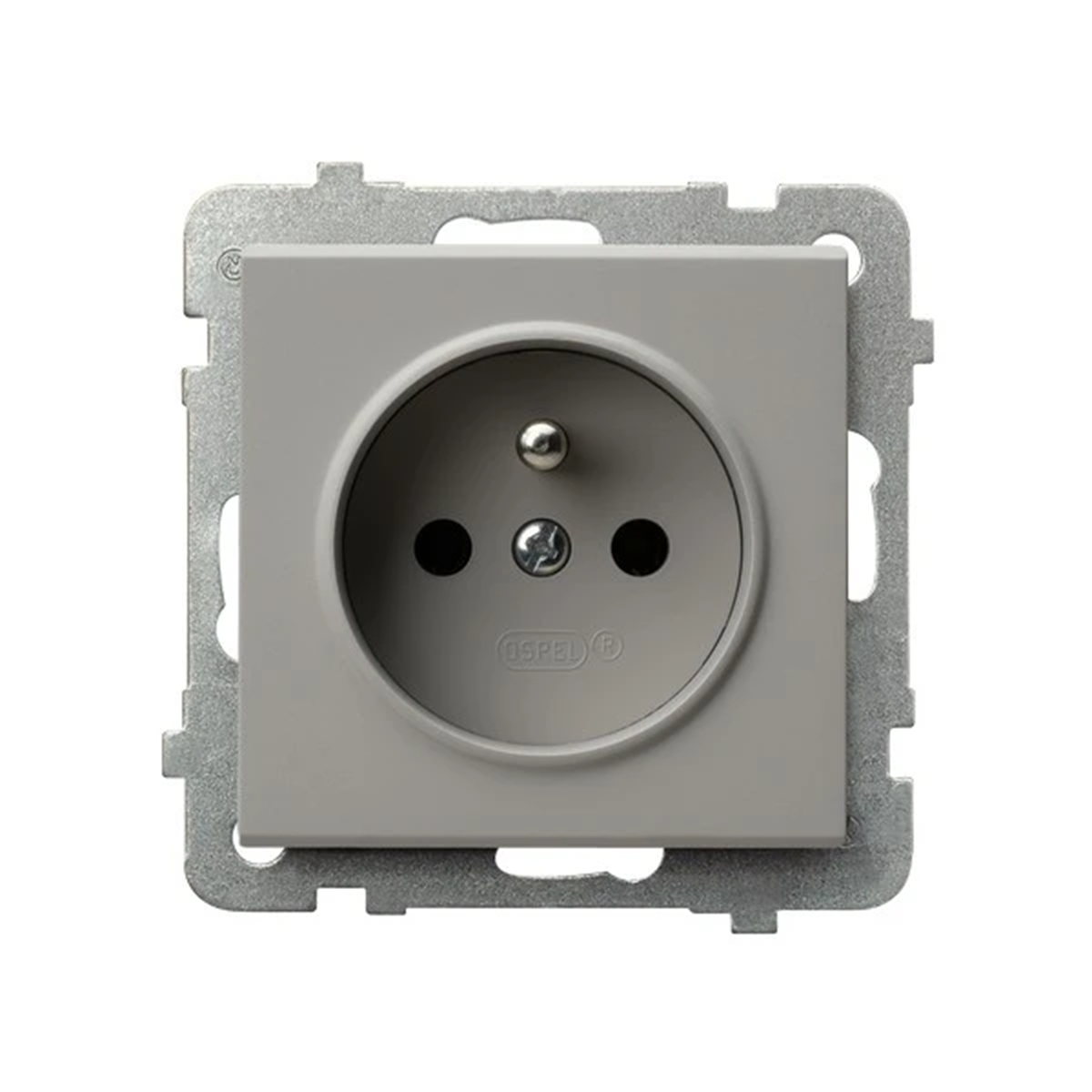

Electrical socket from the Sonata series, from the manufacturer Ospel. The product catalog number is GP-1RZ/M/82.



FEATURES

  • Single.
  • With grounding.
  • To be fitted with a frame.
  • Thread terminals.
  • Color cashmere.
  • Rated current 16A.
  • Rated voltage 230V.
  • Protection class IP20.
  • Mounting flush-mounted.
  • Dimensions: 71 x 71 mm (H x W).



SERIES DESCRIPTION

The Sonata collection is a comprehensive and functional interior design solution that meets the highest technological standards. This modular series is based on a bold and simple square.

Diversified in terms of usability and safety, the Sonata series products can be easily used in various rooms, including living rooms, bedrooms, hallways, and even more demanding spaces like kitchens and bathrooms.

Technical data

  • Depth [mm]
    38
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    24
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • Label space/information surface
    No
  • Transparent
    No
  • With function lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • Nominal voltage
    250 V
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Imprint/indication
    None
  • With hinged lid
    No
  • Colour
    Other
  • Lockable
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • Nominal current
    16 A
  • Device width
    71 mm
  • Device depth
    38 mm

Manufacturer details

  • Manufacturer
    OSPEL S.A.
  • Address
    42-436 Wierbka Główna 128 Polska

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,710
Length (m) 0,710
Depth (m) 0,240
