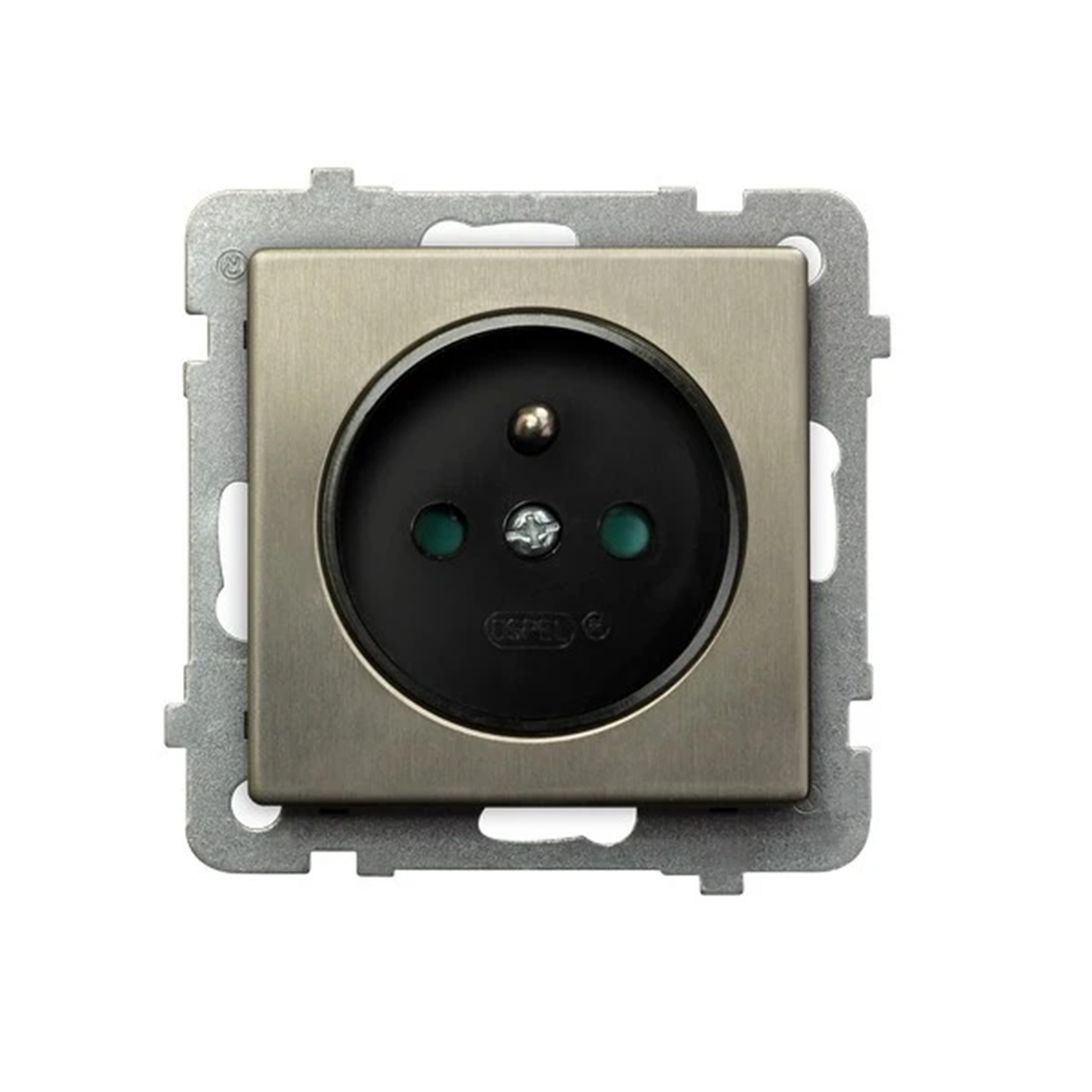

SONATA Single socket with earthing and shutters for current paths, new silver GP-1RMZP/M/44

local index:
MEE542OSPE
Catalog No:
GP-1RMZP/M/44
EAN code:
5907577462277
Manufacturer: OSPEL
Depth [mm]: 37
Number of sockets: 1
Color: Silver
Price:
21,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket from the Sonata New Silver series, from the Ospel manufacturer. The product catalog number is GP-1RMZP/M/44.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • With shutters for current paths.
  • Color new silver.
  • Rated current < strong>16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 71 x 71 mm (height x width).



< h3>SERIES DESCRIPTION

The accessories of the Sonata New Silver series are made of antimicrobial copper. The addition of nickel present in the products of this series makes them resistant to discoloration and oxidation of the surface. The silvery white luster of nickel also gives these products an elegant, sophisticated appearance and high aesthetic values. This equipment can be used not only at home, but also in public places: schools, kindergartens, hospitals, shopping centers, as well as in other public buildings.

Technical data

  • Depth [mm]
    37
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA NEW SILVER
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    Brushing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    New silver
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    Yes
  • Colour
    Brass
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9023
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Brass
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
