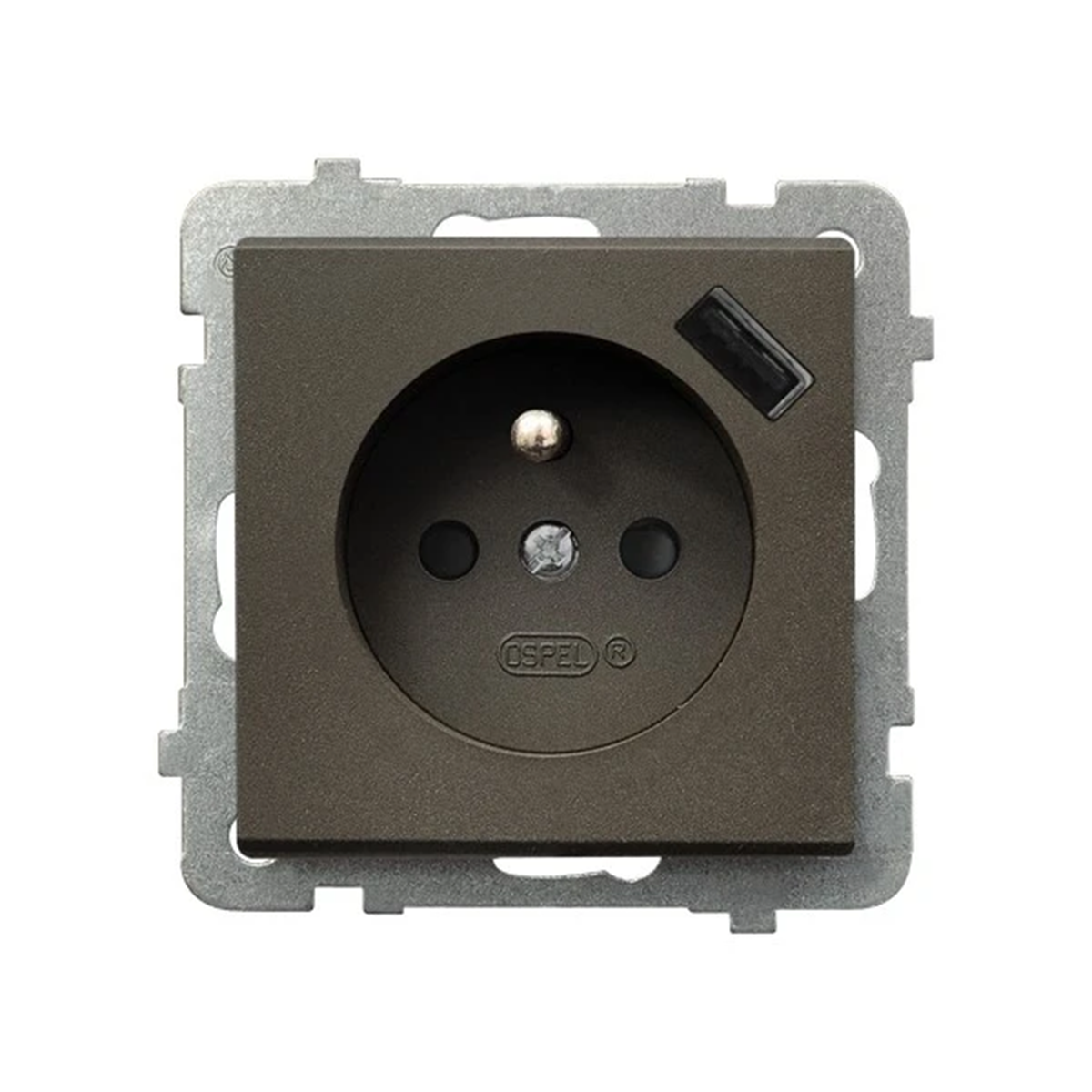

SONATA Single socket-outlet with earthing, current paths shutters, with USB charger chocolate metallic GP-1RZPUSB/M/40
local index:
MEE586OSPE
Catalog No:
GP-1RZPUSB/M/40
EAN code:
5907577494834
Price:
29,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket from the Sonata series, from the Ospel manufacturer. The product catalog number is GP-1RZPUSB/M/40.
FEATURES
- Single.
- With ground.
- With shutters for current paths.
- With USB charger< /strong> 5V/2.1A.
- To be equipped with a frame.
- Threadless terminals.
- Color chocolate metallic.
- Rated current 16A.
- Rated voltage 230V .
- Ingress protection IP20.
- flush mounting.
- Dimensions: 73 x 73 mm (height x width).
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]50
-
ColorBrown
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]73
-
Accurate colorChocolate metallic
-
Mounting depth [mm]35
-
StandardEuropean
-
On the DATA keyNO
-
USB chargerYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]73
-
GroundHurt
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialPlastic Metal
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyYes
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourBronze
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth38 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)8019
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Min. depth of built-in installation box60 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,104 | - |
| Width (m) | 0,073 | 0,162 |
| Length (m) | 0,073 | 0,237 |
| Depth (m) | 0,050 | 0,090 |
