SONATA Single socket outlet with earthing and shutters for current paths, with USB charger champagne gold GP-1RZPUSB/M/39
local index:
MEE585OSPE
Catalog No:
GP-1RZPUSB/M/39
EAN code:
5907577494827
Price:
28,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

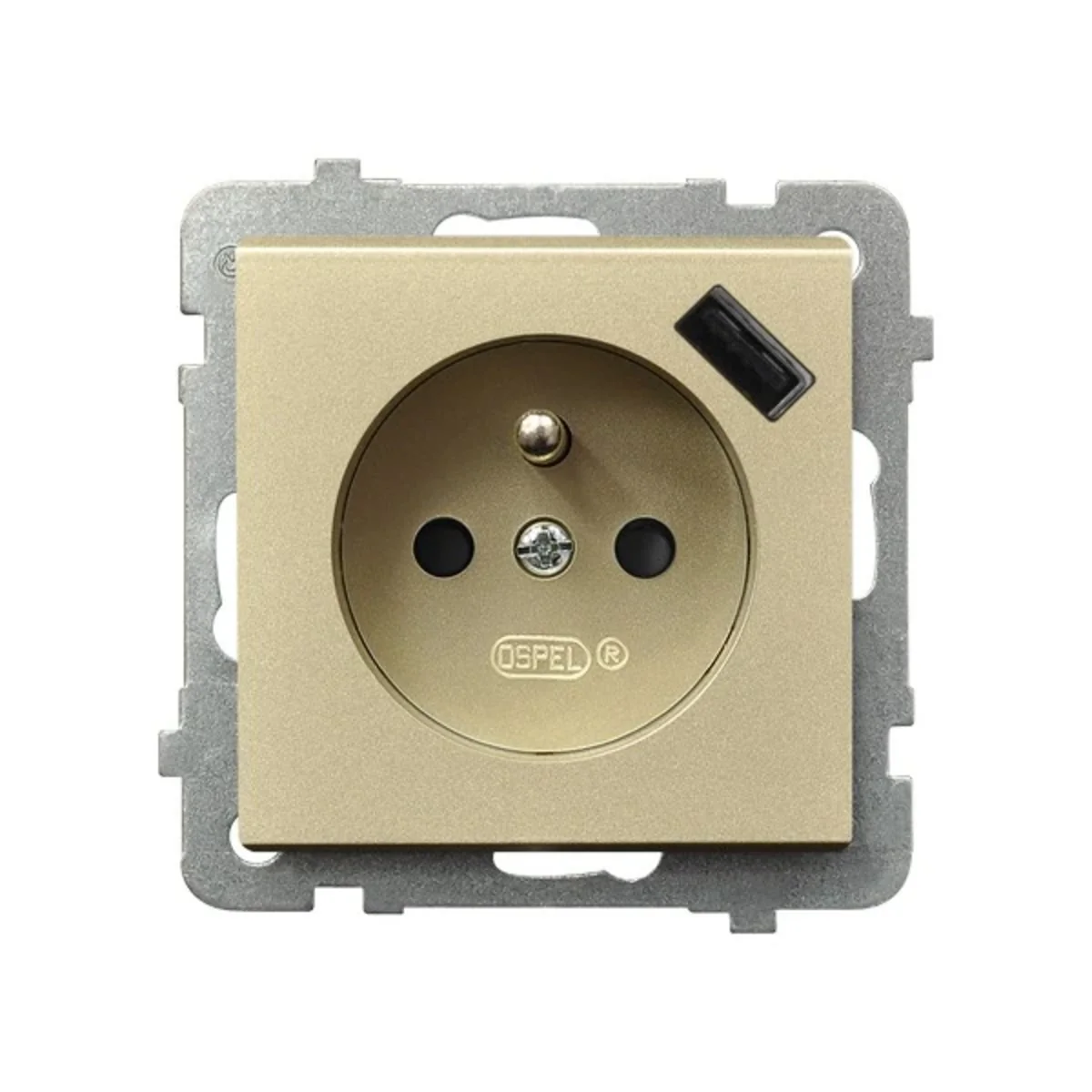

Electric socket from the Sonata series, from the manufacturer Ospel. The product catalog number is GP-1RZPUSB/M/39.
FEATURES
- Single.
- With grounding.
- With shutters for current paths.
- With USB charger< /strong> 5V/2.1A.
- To be equipped with a frame.
- Threadless terminals.
- Color champagne gold.
- Rated current 16A.
- Rated voltage 230V .
- Ingress protection IP20.
- flush mounting.
- Dimensions: 73 x 73 mm (height x width).
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]50
-
ColorGolden
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]73
-
Accurate colorChampagne gold
-
Mounting depth [mm]35
-
StandardEuropean
-
On the DATA keyNO
-
USB chargerYes
-
PKWIU27.33.13.0
-
Number of sockets1
-
ShapeSquare
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]73
-
GroundHurt
-
Surface protectionvarnishing
-
BacklightNO
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
-
Exact materialPlastic Metal
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyYes
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourGold
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodOther
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactYes
-
Number of active contacts (round)1
-
With signal lampNo
-
Number of units1
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)1014
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth38 mm
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 5 pcs. |
| Weight (kg) | 0,104 | - |
| Width (m) | 0,073 | 0,162 |
| Length (m) | 0,073 | 0,237 |
| Depth (m) | 0,050 | 0,090 |
