SONATA Single socket outlet black metallic GP-1RZ/M/33

Index local:
MEE441OSPE
Numéro de catalogue:
GP-1RZ/M/33
Code EAN:
5907577446253
Producteur: OSPEL
Depth [mm]: 38
Number of sockets: 1
Color: Black
Prix:
7,79 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 29 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

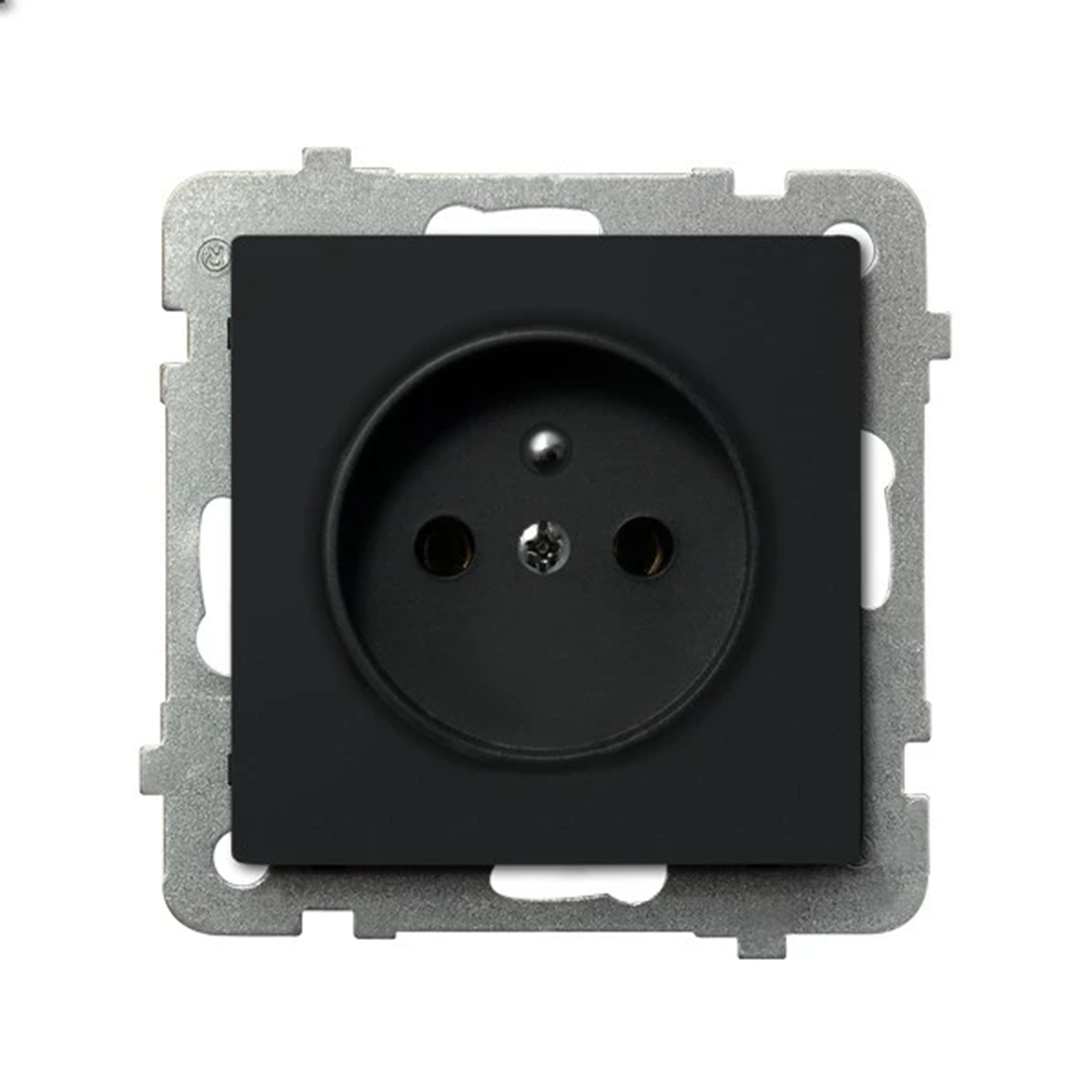

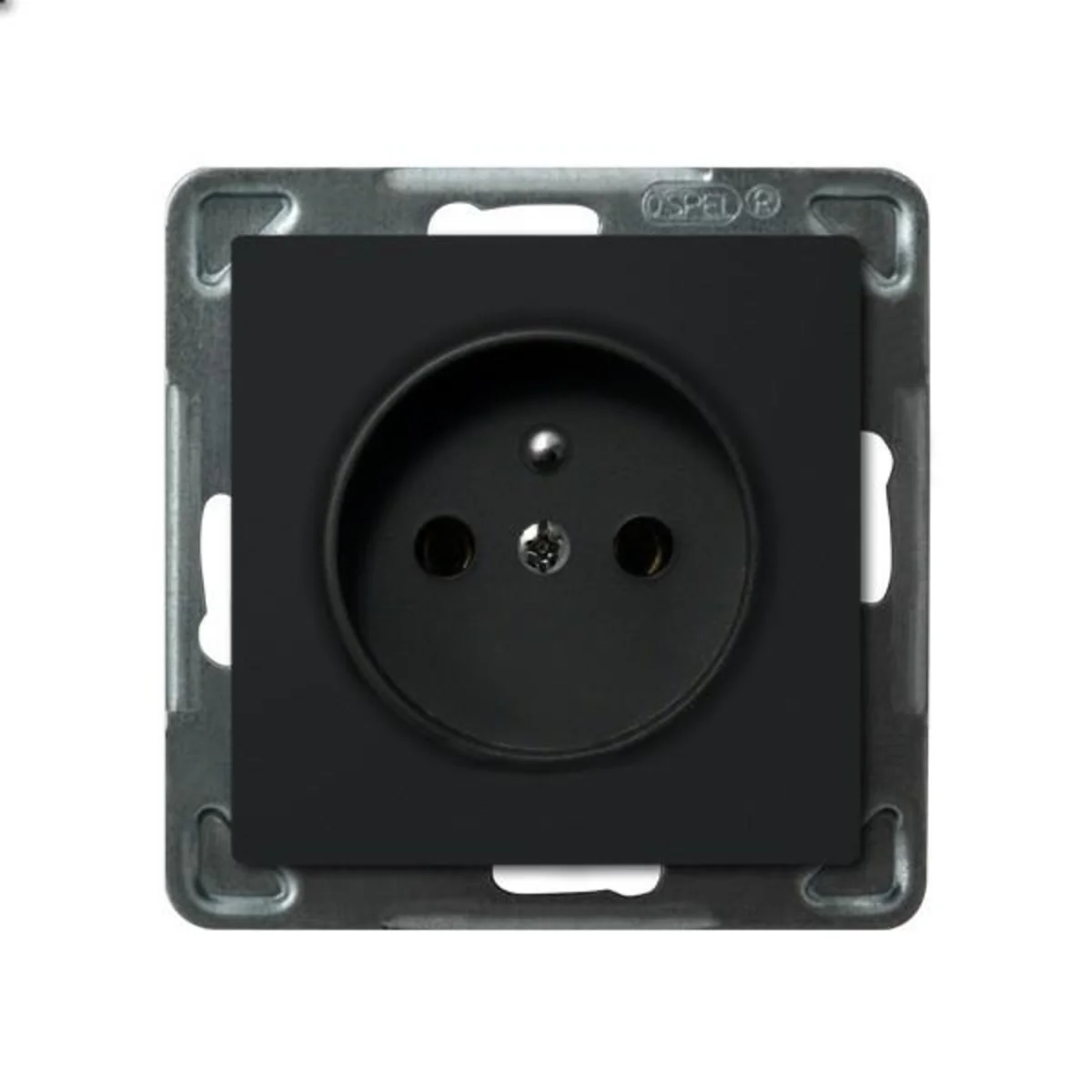

Electric socket from the Sonata series, from the manufacturer Ospel. The product part number is GP-1RZ/M/33.



FEATURES

  • Single.
  • Earth.
  • To be fitted with frame.
  • Thread terminals .
  • Color black metallic.
  • Rated current 16A.
  • Rated voltage 230V .
  • Ingress protection IP20.
  • flush mounting.

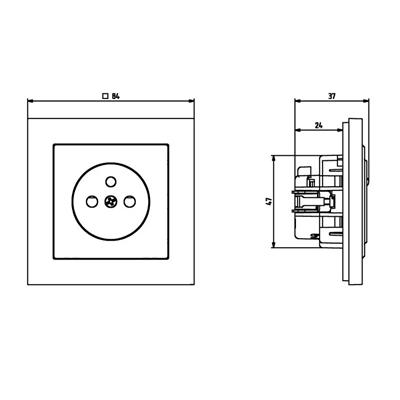

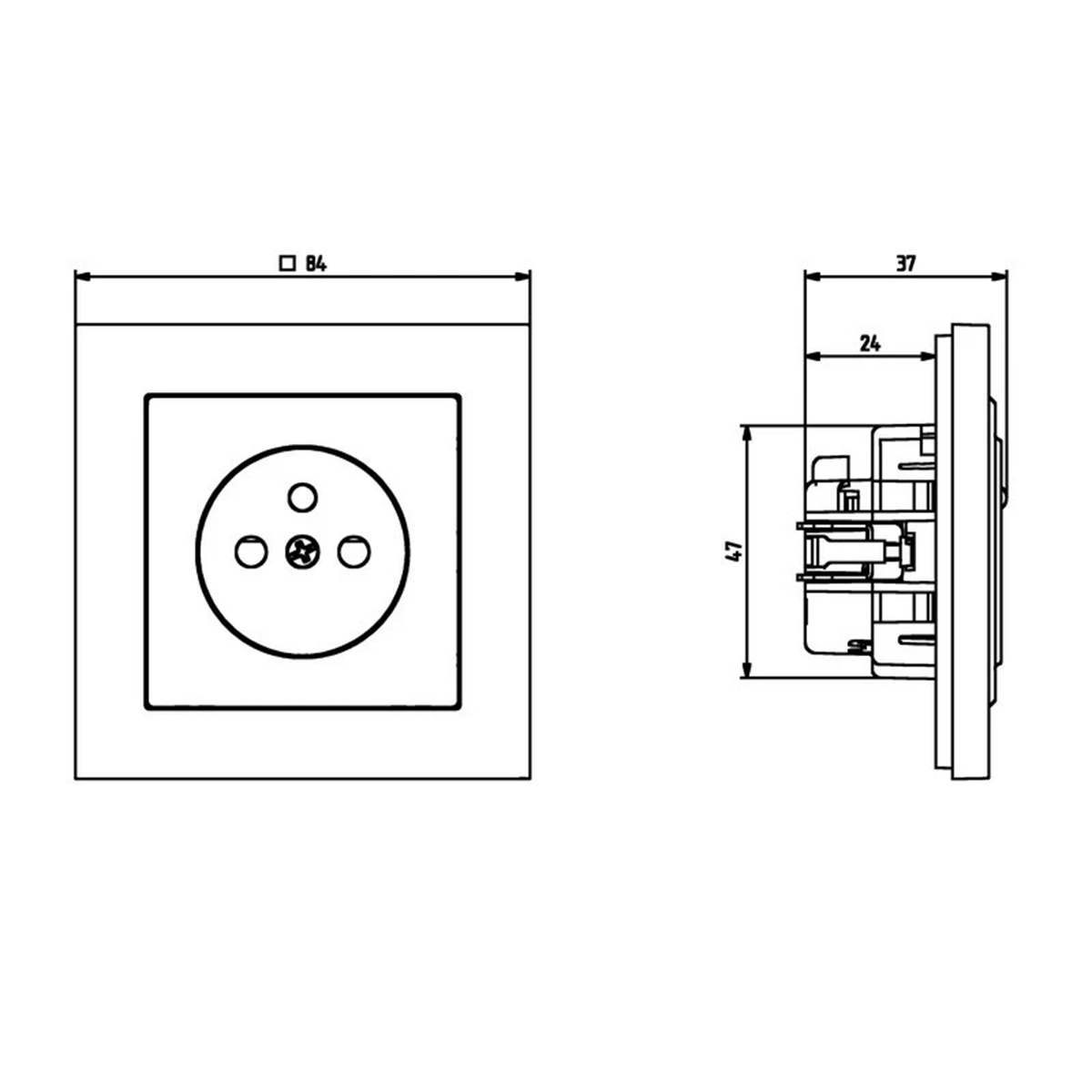

  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Sonata  collection is meeting the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Données techniques

  • Depth [mm]
    38
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    24
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Autres données techniques

  • Model
    Multi-standard socket
  • Number of active contacts (flat)
    0
  • Number of modules (module system)
    1
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9005
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    38 mm

Détails du fabricant

  • Producteur
    OSPEL S.A.
  • Adresse
    42-436 Wierbka Główna 128 Polska

Emballage en vrac

Une sorte de paquet Pudełko
Quantité 4 pcs.
Largeur (m) 0,140
Longueur (m) 0,162
Profondeur (m) 0,090
