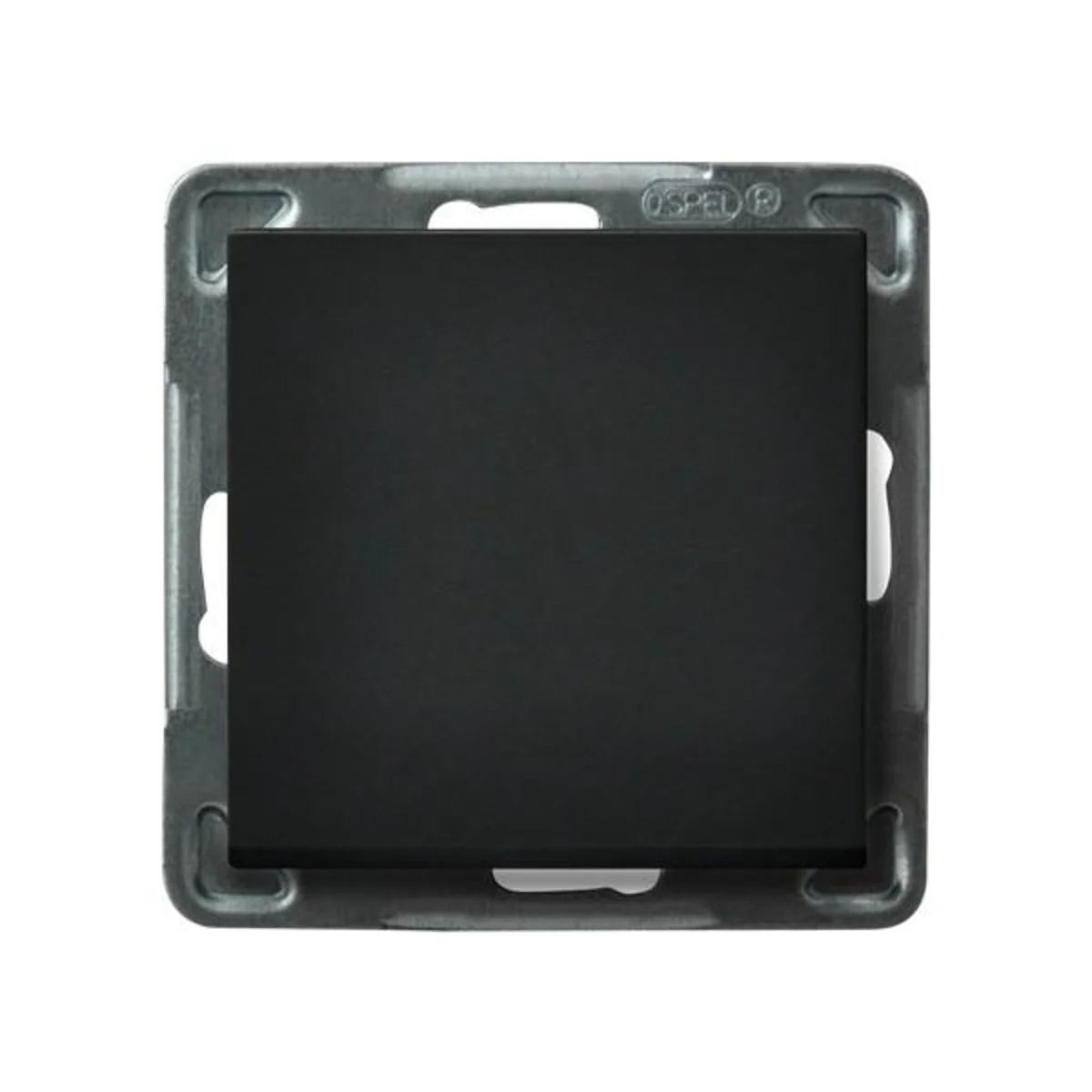

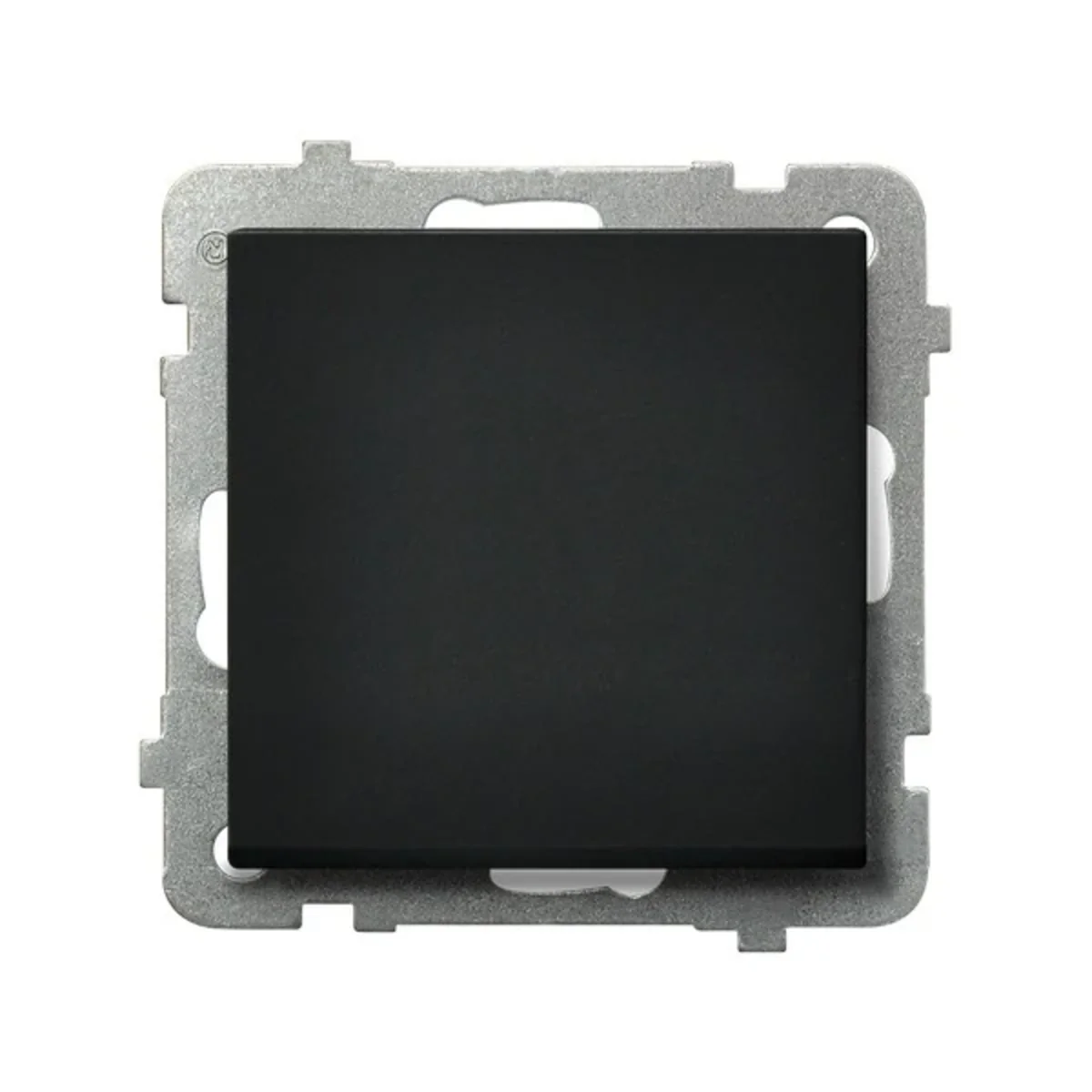

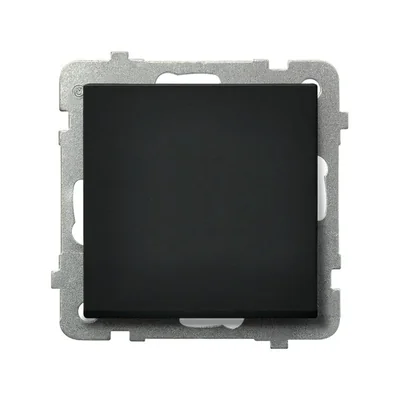

SONATA Single-pole black metallic switch, without frame ŁP-1R/M/33
local index:
MMP104OSPE
Catalog No:
ŁP-1R/M/33
EAN code:
5907577446024
Price:
7,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Standard single switch equipped with one key enabling switching on and off within one circuit. Used indoors as a lighting switch.
Technical data
-
ColorBlack
-
InstallationFlush-mounted
-
highlightingNO
-
FamilySONATA
-
Level of securityIP20
-
Fastener typeSingle
-
Accurate colorBlack metallic
-
MaterialPlastic
-
Rated voltage [V]230
-
Rated current [A]16
-
Mounting methodThreadless terminals
-
TypeFasteners
-

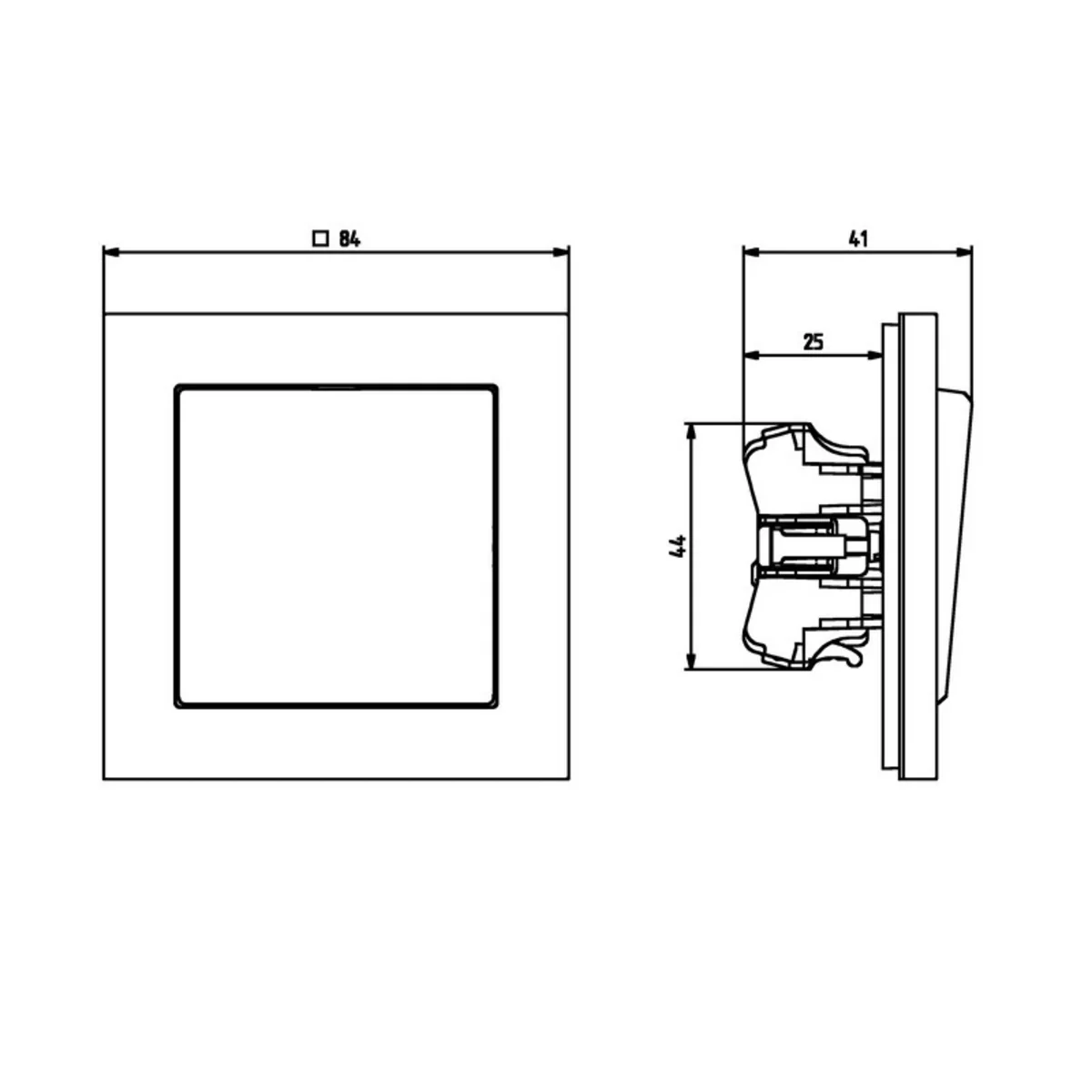

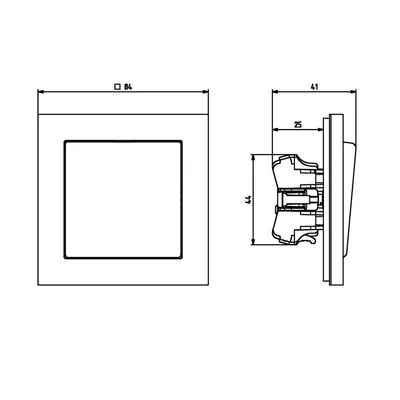

Dimension [mm]84 x 84
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with complete housing
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourBlack
-
Label space/information surfaceNo
-
Type of lightingOther
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typePush-in clamp
-
Device width75 mm
-
Device depth42 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9005
-
IlluminationNo
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height75 mm
-
Built-in depth25 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
