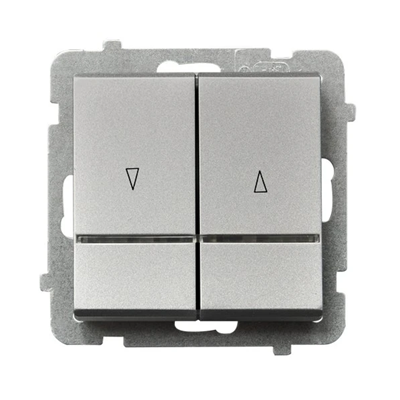

SONATA Shutter switch with blue backlight and mechanical interlock, matt silver ŁP-7RBS/M/38
local index:
MMO045OSPE
Catalog No:
ŁP-7RBS/M/38
EAN code:
5907577479039
Price:
11,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Louvre connector from the Sonata series, from Ospel. The product catalog number is ŁP-7RBS/M/38.
- With backlight.
- Bistable.
- Electrical lock and mechanical.
SERIES DESCRIPTION
Sonatais a modular series that perfectly matches to any room, thanks to its simple but decisive design. The shutter connector characterizes the features of this unique series.
Technical data
-
Depth [mm]42
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySONATA
-
Width [mm]71
-
VersionSingle
-
Surface protectionvarnishing
-
BacklightYes
-
BlockadeMechanical
-
VariantTwo-position
-
Backlight typeLTS lamp
-
PKWIU27.33.11.0
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeShutter
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colormatt silver
-
Mounting depth [mm]25
-
Terminal typeThreadless
-
For the frame systemYes
-
Backlight colorBlue
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Method of operationRocker
-
Mechanical controllableYes
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)7047
-
Label space/information surfaceNo
-
Rated current10 A
-
Number of buttons2
-
Min. depth of built-in installation box40 mm
-
ModelOther
-
Blokada elektryczna i mechanicznaYes
-
Electronic controllableNo
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourSilver
-
TransparentNo
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage250 V
-
Number of modules (module system)0
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
