SONATA RTV-SAT socket with two SAT outputs white GPA-R2S/M/00

local index:
MEA255OSPE
Catalog No:
GPA-R2S/M/00
EAN code:
5907577444594
Manufacturer: OSPEL
Depth [mm]: 35
Number of sockets: 3
Color: White
Price:
25,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

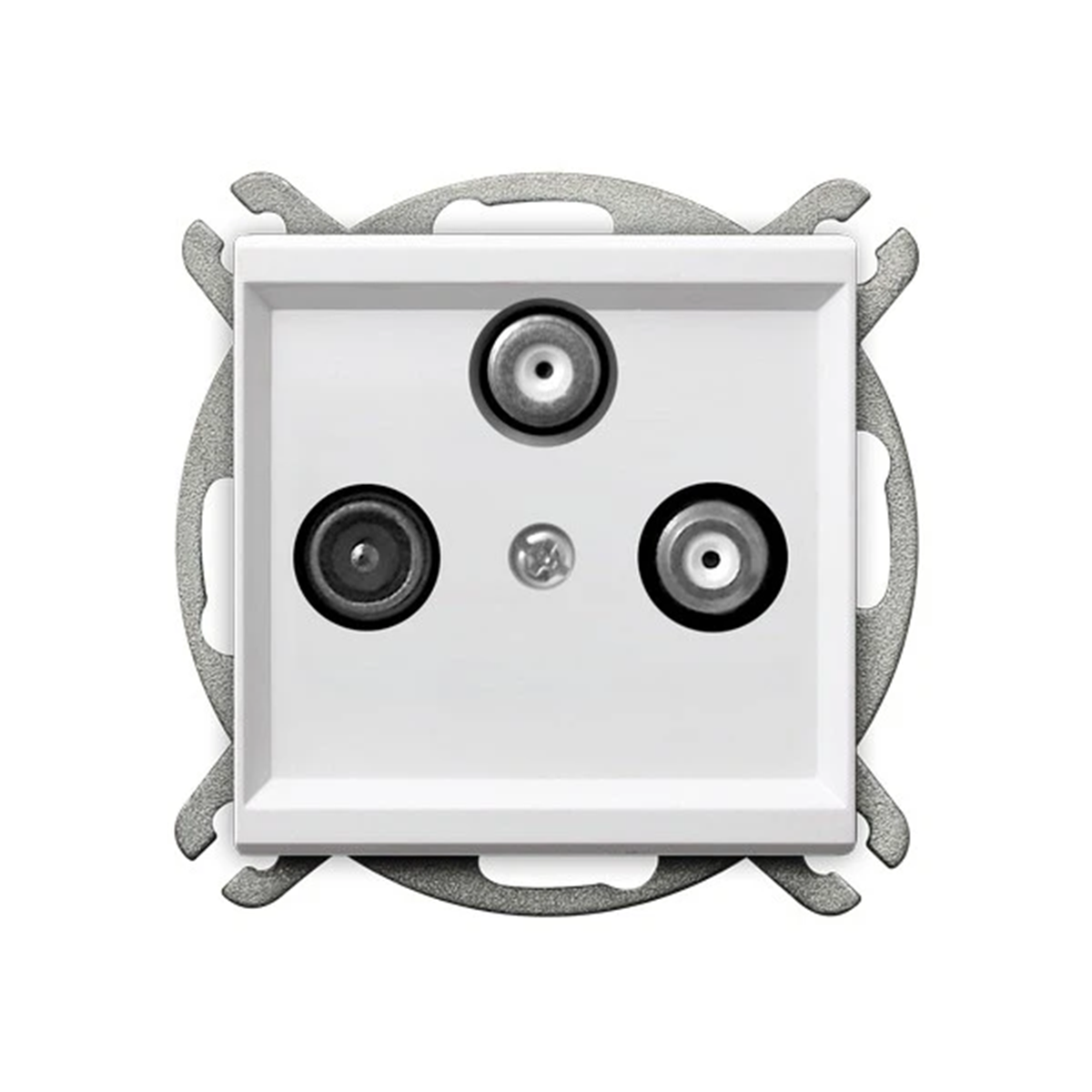

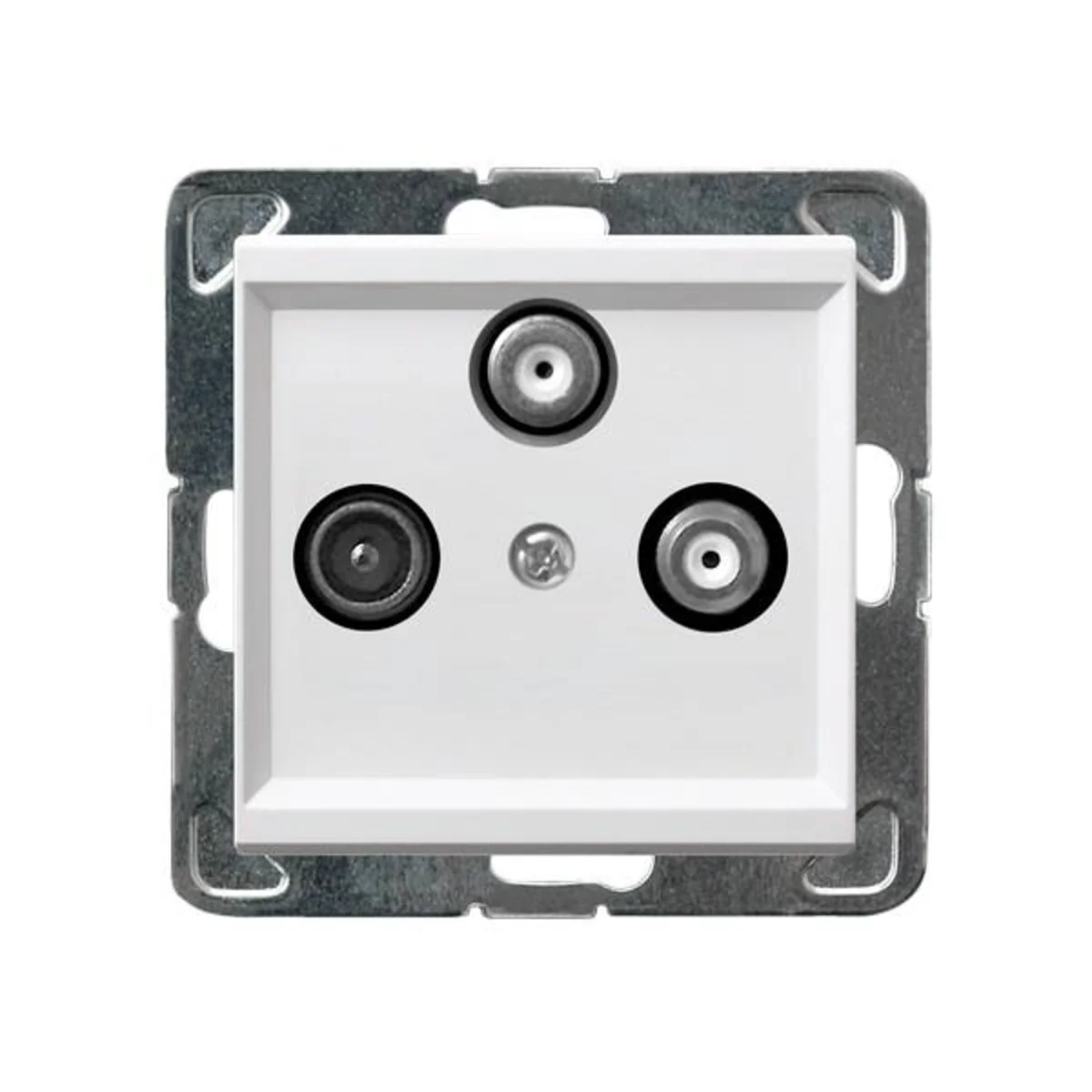

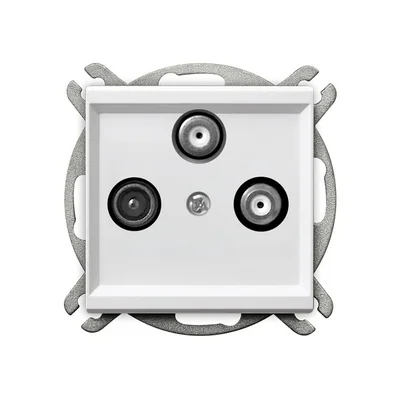

RTV antenna socket with two SAT outputs. To be equipped with a frame.



SERIES DESCRIPTION

The Sonata  collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Technical data

  • Depth [mm]
    35
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    RTV: 0.5-1.5 Sat: 10-12 SAT2: 6-8
  • Height [mm]
    71
  • Frequency Range [MHz]
    For SAT input: 5-2400
  • Mounting depth [mm]
    24
  • Variant
    RTV sat sat2
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    SONATA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    no
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2.5 dB
  • Suitable for cable modem
    no
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    yes
