SONATA RTV-SAT socket, pass-through champagne gold GPA-RSP/M/39
local index:
MEA287OSPE
Catalog No:
GPA-RSP/M/39
EAN code:
5907577448189
Price:
26,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

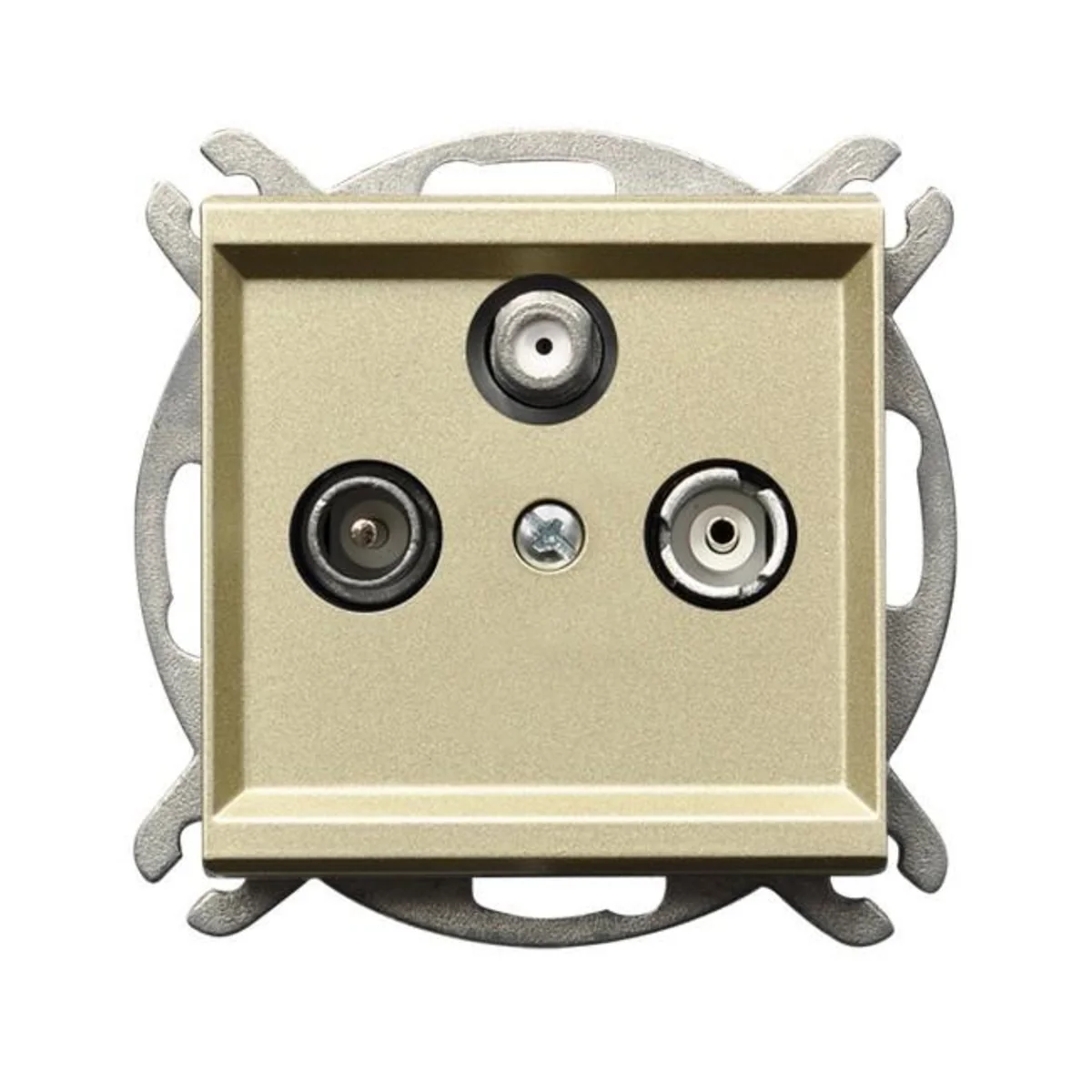

RTV-SAT pass-through antenna socket. It is designed for series installation, where one cable passes through different receivers. To be equipped with a frame.
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]35
-
ColorGolden
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]R: 12 TV: 10-12 Sat: 6-8
-
Versionthrough
-
Surface protectionvarnishing
-
Accurate colorChampagne gold
-
Mounting depth [mm]24
-
VariantR TV sat
-
For the frame systemYes
-
PKWIU26.40.52.0
-
Number of sockets3
-
ShapeSquare
-
Fixingclaws screws
-
OverprintNO
-
FamilySONATA
-
Width [mm]71
-
TypeFlush-mounted
-
Height [mm]71
-
Frequency Range [MHz]For output R: 88-108 For TV out: 5-70 For TV out: 120-862 For entry: 5-2400
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPlastic Metal
Other technical data
-
ModelLoop-through socket
-
Number of modules (module system)1
-
Tap loss at 860 MHz12 dB
-
Number of outlets1
-
Through loss at 860 MHz4 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)1014
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz8 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz7 dB
-
Frequency5 ... 860 MHz
-
ColourGold
-
Surface protectionLacquered
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
