SONATA Push-turn dimmer for incandescent and other loads, white, without frame ŁP-8R/M/00

Name: SONATA Push-turn dimmer for incandescent and other loads, white, without frame
Brand: OSPEL
SKU: MMC011OSPE
Price: 135.16 PLN
Availability: BackOrder

Lokaler Index:

MMC011OSPE

Katalognummer:

ŁP-8R/M/00

EAN-Code:

5907577444167

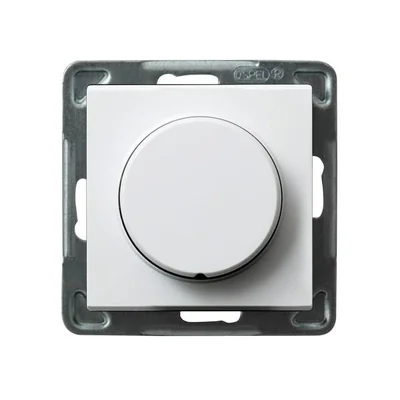

SONATA Push-turn dimmer for incandescent and other loads, white, without frame

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: OSPEL

Depth [mm]: 50

Number of keys: Knob

Color: White

Siehe vollständige Beschreibung

Preis:

135,16 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

1

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen

Produktbeschreibung

Push-turn dimmer from theSonata series, from Ospel. The product catalog number is ŁP-8R/M/00.

FEATURES

Adjusted to incandescent load and halogen.
Load power: 40-400W.

SERIES DESCRIPTION

Sonata is a modular series that will perfectly fit into any room, thanks to its simple but decisive design. Dimmer characterize the features of this unique series.

Technische Daten

Depth [mm]

50
Color

White
Material

Plastic
Rated voltage [V]

230
Family

SONATA
Width [mm]

71
Version

For incandescent lighting For halogen lighting
Surface protection

Natural
Mounting depth [mm]

24
Terminal type

Threaded
For the frame system

Yes

Number of keys

Knob
Shape

Square
Fixing

claws screws
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

71
Backlight

NO
load power [W]

40-400
Variant

Rotary Button
PKWIU

27.33.11.0

Weitere technische Daten

Assembly arrangement

Basic element with complete housing
Number of modules (module system)

1
Serial dimmer

Yes
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No
Mounting method

Flush-mounted
Material

Plastic
Halogen free

Yes
Surface finishing

Glossy
RAL-number (similar)

9003
Suitable for degree of protection (IP)

IP20
Nominal voltage

230 ... 230 V
Control voltage

230 ... 230 V
Device width

75 mm
Device depth

50 mm

Method of operation

Turn/push button
App control via Bluetooth

No
Type of load

Resistive load
Light value memory

No
Applicable with movement sensor

Yes
Applicable with time switch/timer

No
Applicable with infrared button

Yes
Type of fastening

Mounting with claw and screw
Material quality

Thermoplastic
Surface protection

Untreated
Colour

White
Transparent

No
Impact strength

IK03
Frequency

50 ... 50 Hz
Core cross section

1 ... 1.5 mm²
Device height

75 mm
Min. depth of built-in installation box

60 mm

Hersteller-Details

Hersteller

OSPEL S.A.
Adresse

42-436 Wierbka Główna 128 Polska
E-Mail

ospel@ospel.com.pl

Großpackungen

Eine Art Paket	Pudełko
Menge	5 stk.
Breite (m)	0,162
Länge (m)	0,237
Tiefe (m)	0,090
