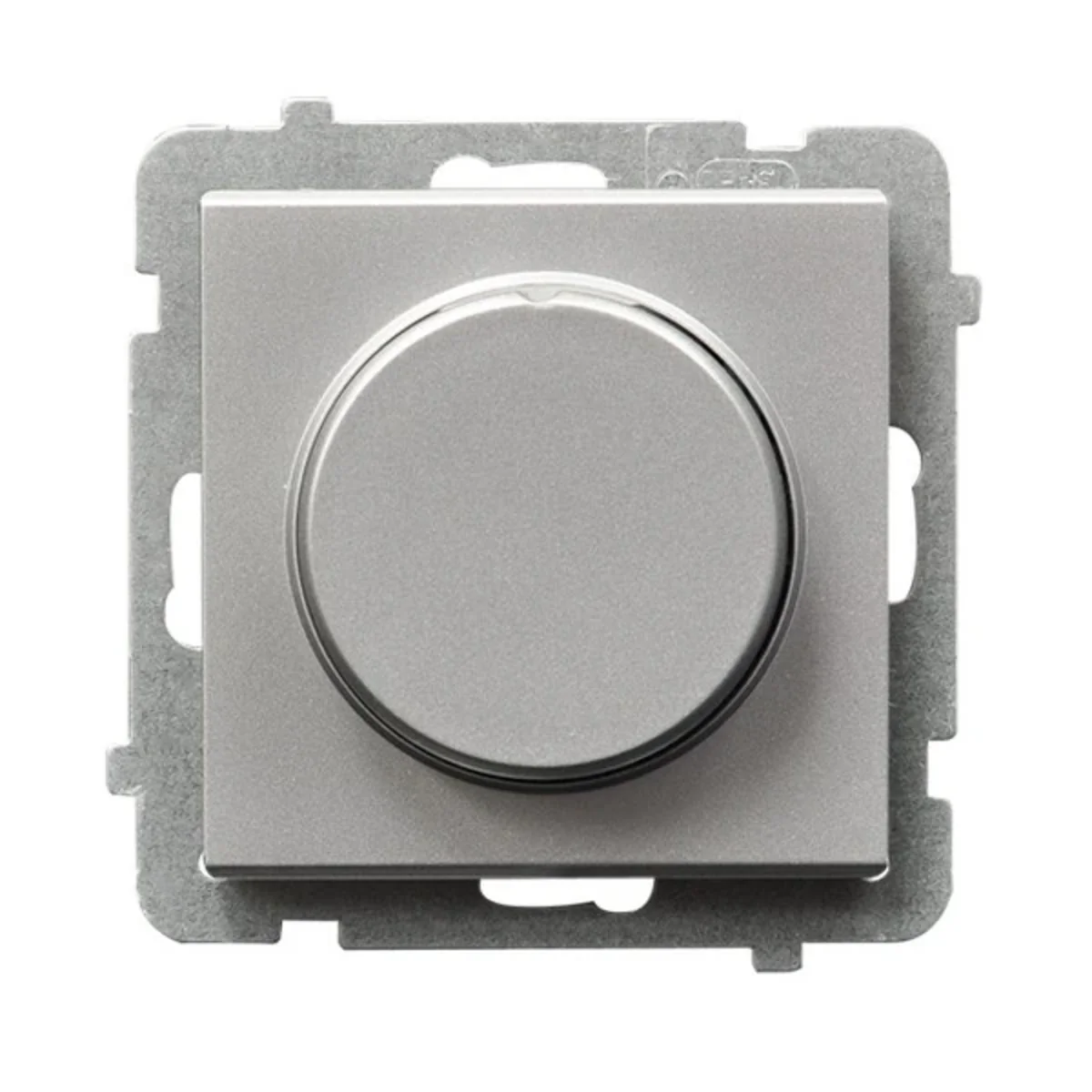

SONATA Push-turn dimmer for incandescent and incandescent loads, matt silver, without frame ŁP-8R/M/38
local index:
MMC014OSPE
Catalog No:
ŁP-8R/M/38
EAN code:
5907577447199
Price:
31,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Push-turn dimmer from theSonata series, from Ospel. The product catalog number is ŁP-8R/M/38.
FEATURES
- Adjusted to incandescent load and halogen.
- Load power: 40-400W.
SERIES DESCRIPTION
Sonata is a modular series that will perfectly fit into any room, thanks to its simple but decisive design. Dimmer characterize the features of this unique series.
Technical data
-
Depth [mm]50
-
ColorSilver
-
MaterialPlastic
-
Rated voltage [V]230
-
FamilySONATA
-
Width [mm]71
-
VersionFor incandescent lighting For halogen lighting
-
Surface protectionvarnishing
-
BacklightNO
-
load power [W]40-400
-
VariantRotary Button
-
PKWIU27.33.11.0
-
Number of keysKnob
-
ShapeSquare
-
Fixingclaws screws
-
Typedimmers
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorsilver matt
-
Mounting depth [mm]24
-
Terminal typeThreaded
-
For the frame systemYes
Other technical data
-
Assembly arrangementBasic element with complete housing
-
Number of modules (module system)1
-
Serial dimmerYes
-
Substation inputNo
-
Applicable with buttonNo
-
Applicable with presence indicatorNo
-
Applicable with transmission buttonNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingMatt
-
RAL-number (similar)7047
-
Suitable for degree of protection (IP)IP20
-
Nominal voltage230 ... 230 V
-
Control voltage230 ... 230 V
-
Device width75 mm
-
Device depth50 mm
-
Method of operationTurn/push button
-
App control via BluetoothNo
-
Type of loadResistive load
-
Light value memoryNo
-
Applicable with movement sensorYes
-
Applicable with time switch/timerNo
-
Applicable with infrared buttonYes
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
ColourSilver
-
TransparentNo
-
Impact strengthIK03
-
Frequency50 ... 50 Hz
-
Core cross section1 ... 1.5 mm²
-
Device height75 mm
-
Min. depth of built-in installation box60 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
