OSPEL

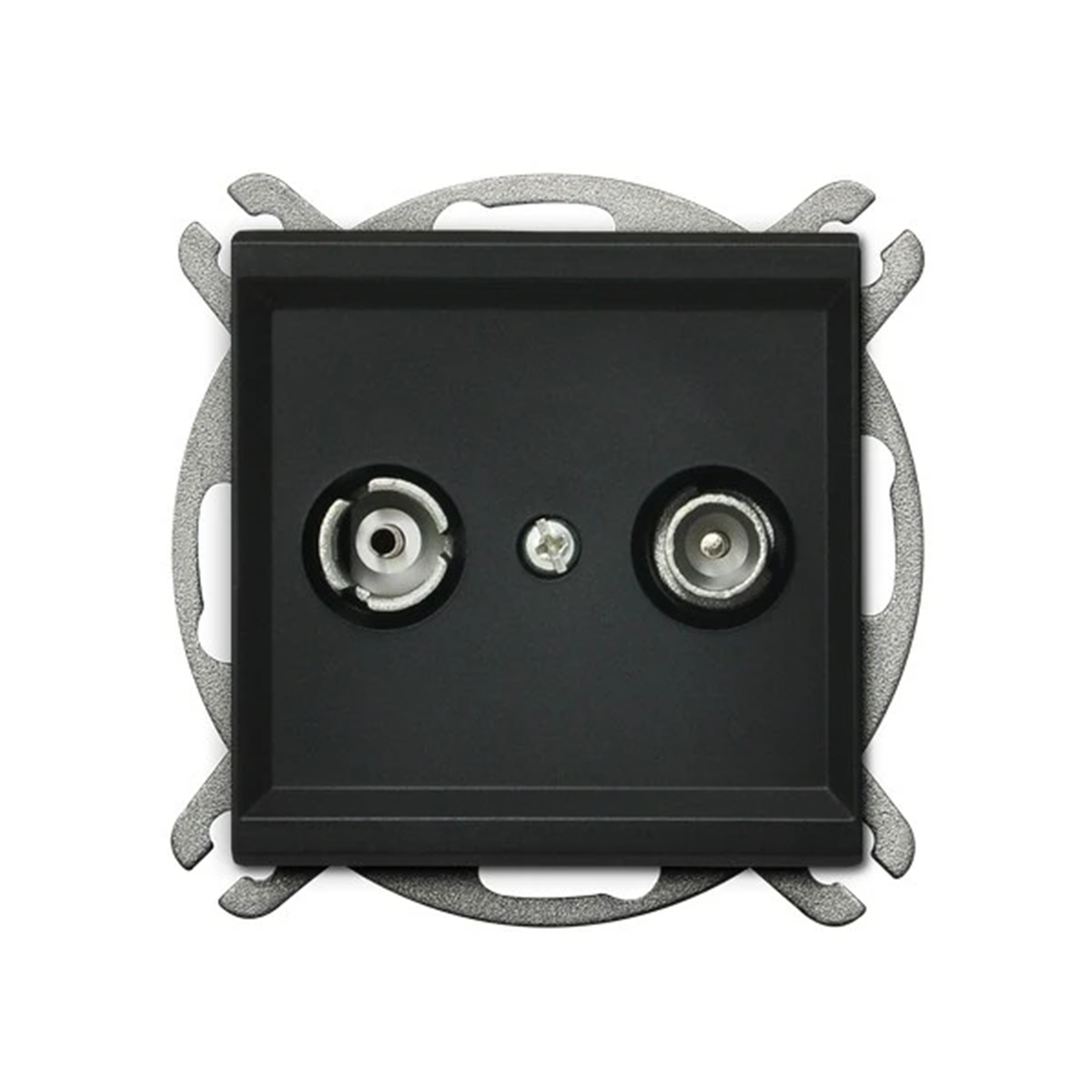

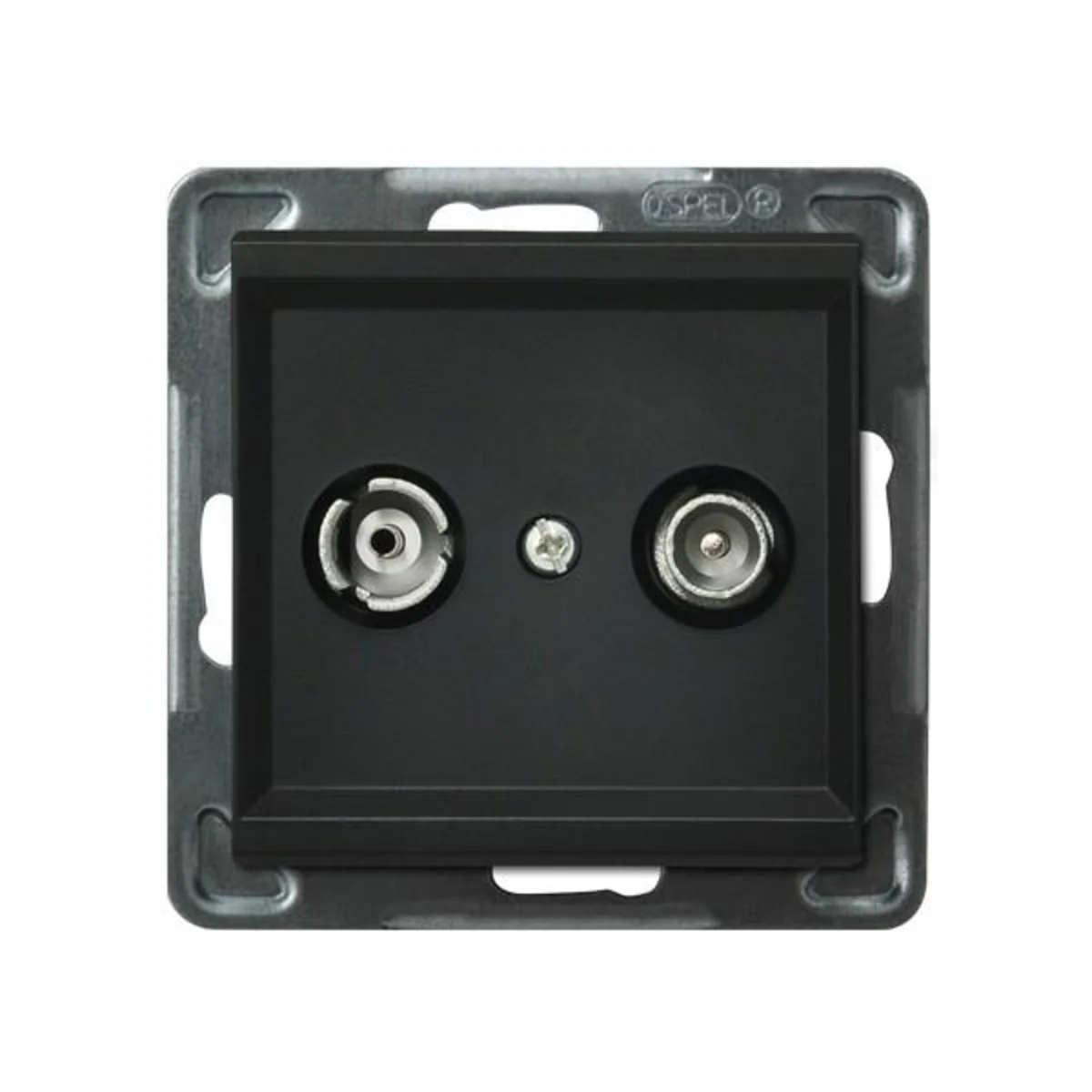

SONATA Pass-through RTV socket ZAP-16 black metallic GPA-16RP/M/33

local index:
MEA128OSPE
Catalog No:
GPA-16RP/M/33
EAN code:
5907577446437
Price:
17,01 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.



SERIES DESCRIPTION

The Sonata  collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

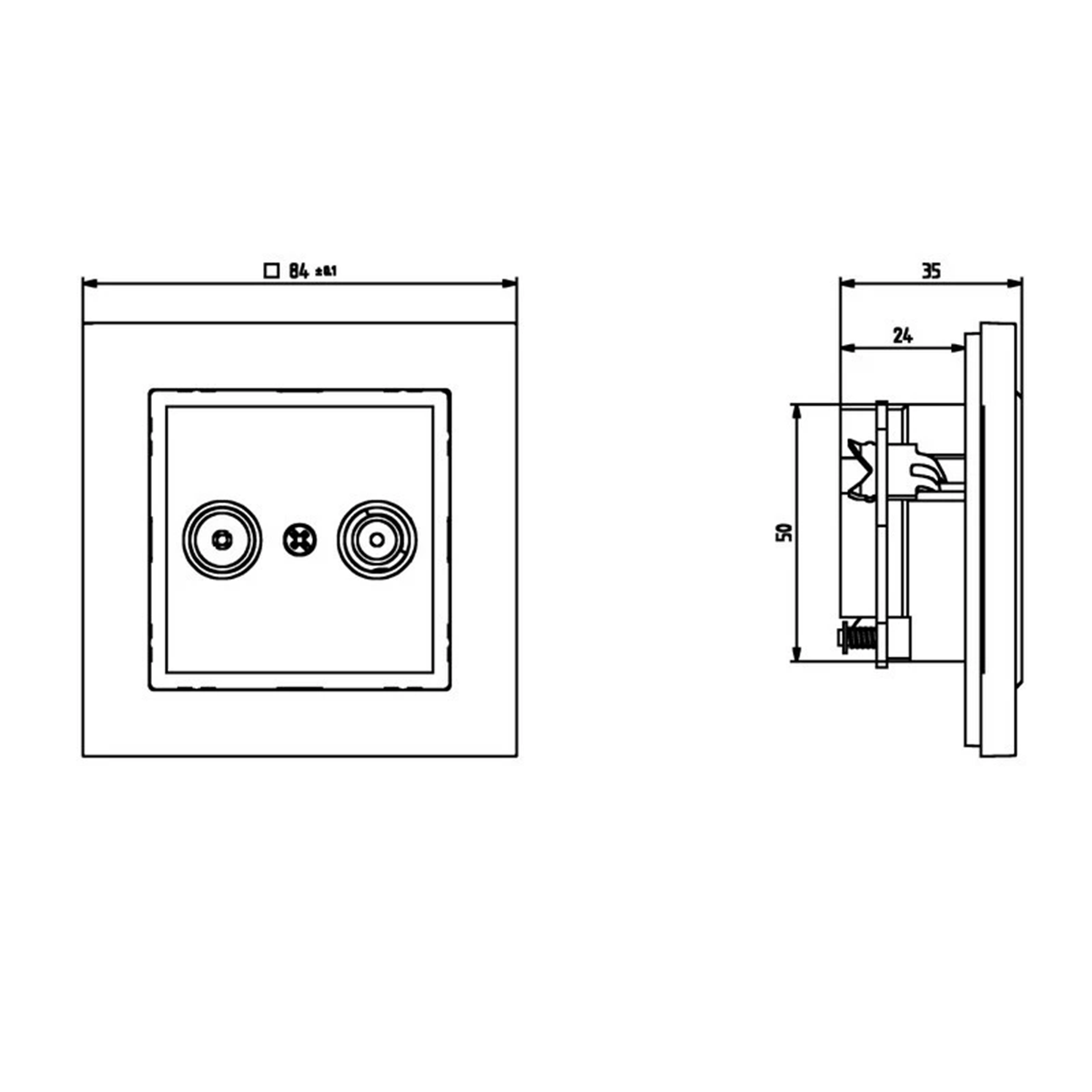

Technical data

  • Depth [mm]
    35
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 16 TV: 16
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    SONATA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Other technical data

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    16 dB
  • Suitable for remote power supply
    no
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    no
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    yes
