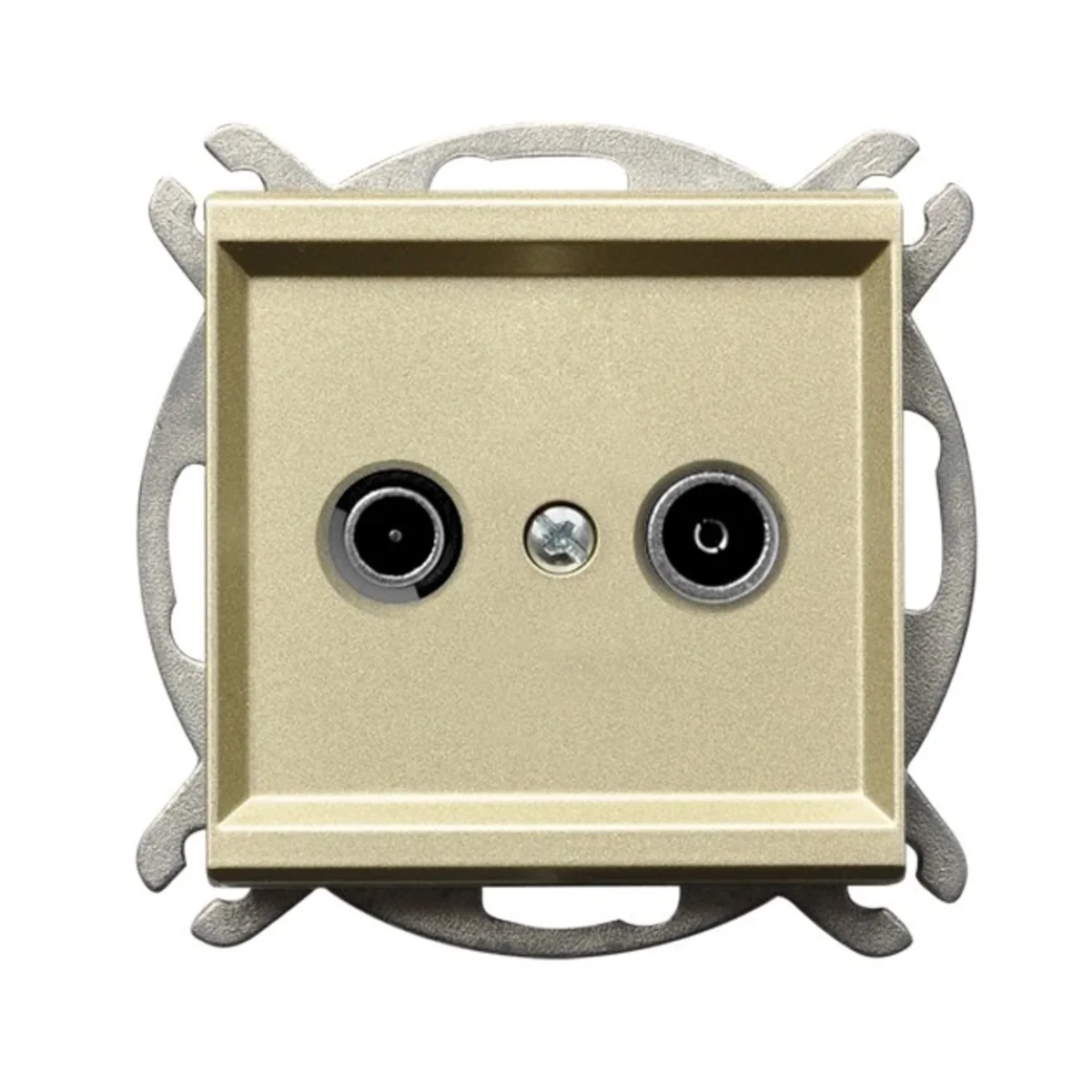

SONATA Pass-through RTV socket ZAP-14 champagne gold GPA-14RP/M/39

Indice locale:
MEA093OSPE
Numero di catalogo:
GPA-14RP/M/39
Codice EAN:
5907577448134
Produttore: OSPEL
Depth [mm]: 35
Number of sockets: 2
Color: Golden
Prezzo:
18,17 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

RTV antenna socket pass-through. It is designed for serial installation, where one cable passes through various receivers. To be equipped with a frame.



SERIES DESCRIPTION

The Sonata  collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Dati tecnici

  • Depth [mm]
    35
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    R: 14 TV: 14
  • Version
    through
  • Surface protection
    varnishing
  • Accurate color
    Champagne gold
  • Mounting depth [mm]
    24
  • Variant
    R TV
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0
  • Number of sockets
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    SONATA
  • Width [mm]
    71
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Frequency Range [MHz]
    R: 88-108 TV: 5-70 TV: 120-862
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    Plastic Metal

Altri dati tecnici

  • Model
    Loop-through socket
  • Number of modules (module system)
    1
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    14 dB
  • Suitable for remote power supply
    No
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    1014
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Mounting method
    Flush-mounted
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Frequency
    5 ... 860 MHz
  • Colour
    Gold
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
