SONATA Normally Open Switch, Cashmere Bell ŁP-6R/M/82

Místní index:
MMZ186OSPE
Katalogové číslo.:
ŁP-6R/M/82
EAN kód:
5906729029528
Výrobce: OSPEL
Depth [mm]: 42
Number of keys: 1
Color: Beige
Cena:
37,66 zł
gross / kusů.
(včetně DPH 23%)
do jednoho týdne
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout

Popis produktu

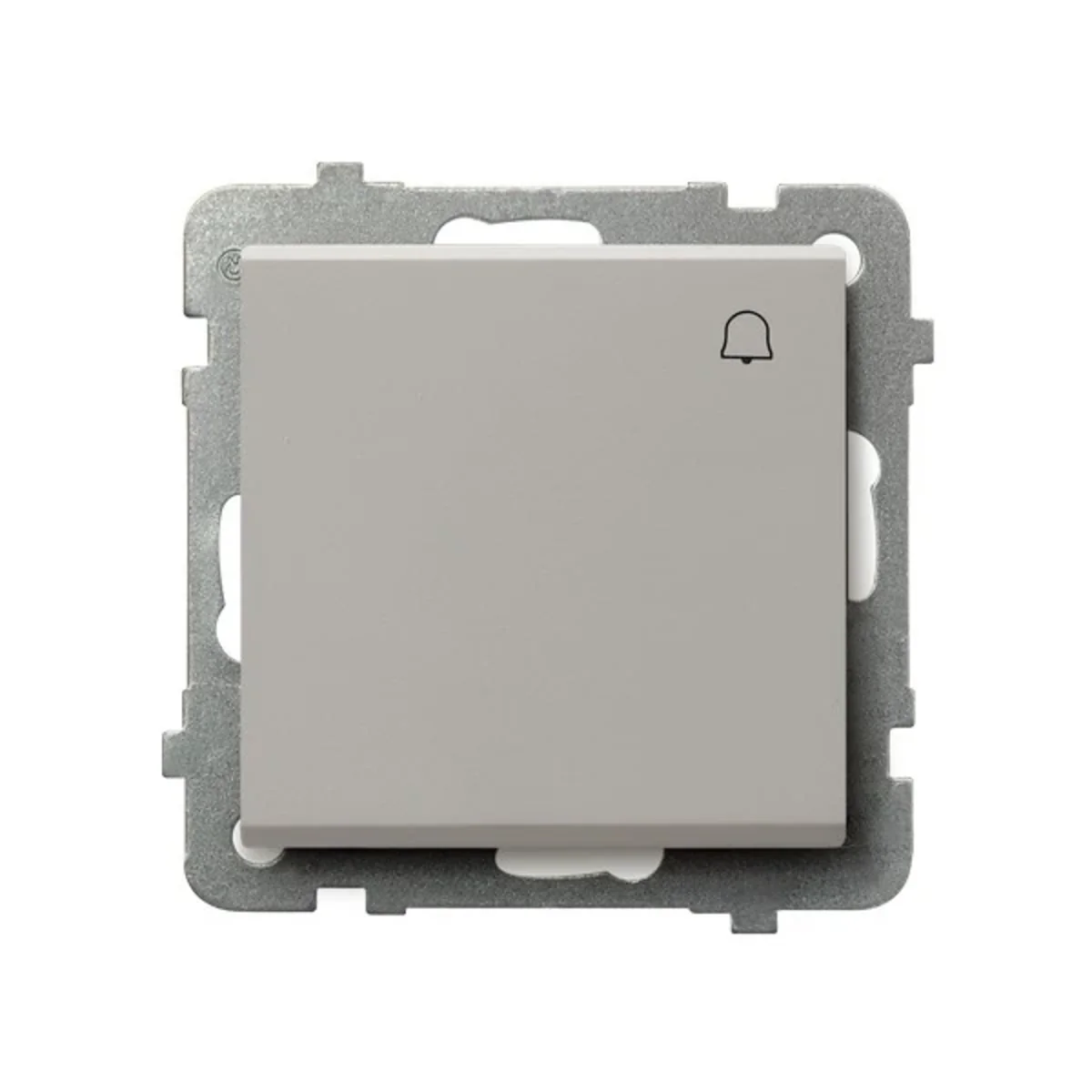

Normally operated "bell" switch from the Sonata series, from the manufacturer Ospel. The product catalog number is ŁP-6R/M/82. Cashmere color.

FEATURES

FEATURES

  • To be equipped with a frame.
  • Symbol "bell" on the key.
  • To obtain the IP44 splash-proof class, use a sealing set for switches.



SERIES DESCRIPTION

The Sonata collection is a comprehensive and functional interior design solution that meets the highest technological standards. This modular series is based on a decisive and simple square.

Diversified in terms of usability and safety, the Sonata series products can be easily used in various rooms, including living rooms, bedrooms, hallways, and even more demanding spaces – kitchens and bathrooms.

Technické údaje

  • Depth [mm]
    42
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SONATA
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Cashmere
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes

Další technické údaje

  • Wiring system
    Normally open contact (NO)
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • Illumination
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    60 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Lacquered
  • Colour
    Other
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm
  • Built-in depth
    25 mm

Podrobnosti o výrobci

Velkoobjemová balení

Typ obalu Pudełko
Množství 4 kusů.
Šířka (m) 0,710
Délka (m) 0,710
Hloubka (m) 0,250
