SONATA Five-gang frame for IP44 switches, black metallic RH-5R/33

Índice local:
MAR446OSPE
Número de catálogo:
RH-5R/33
Código EAN:
5907577446932
Fabricante: OSPEL
Depth [mm]: 16
Number of modules: 5
Color: Black
Precio:
6,41 €
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 2 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir al portapapeles
Imprimir

Descripción del producto

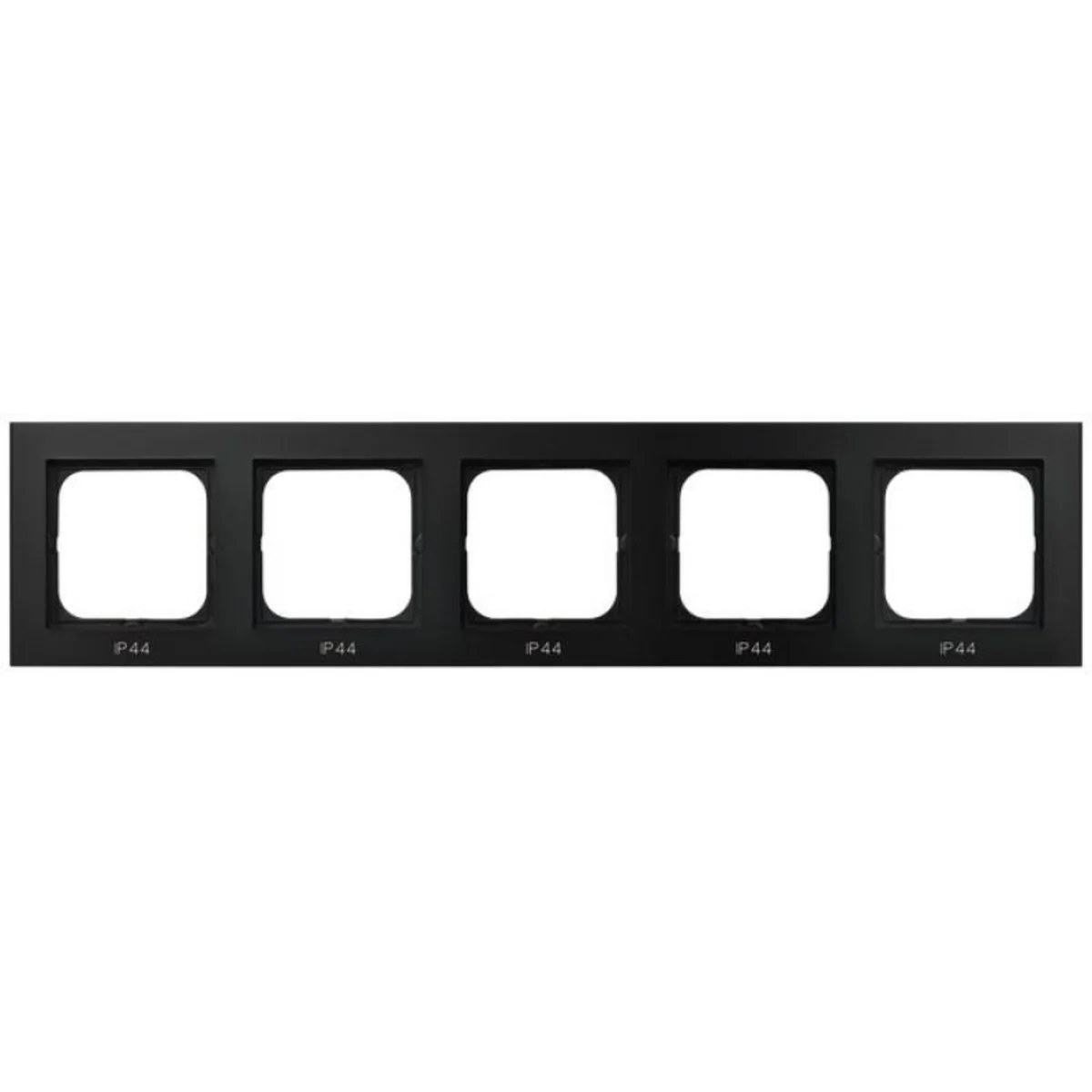

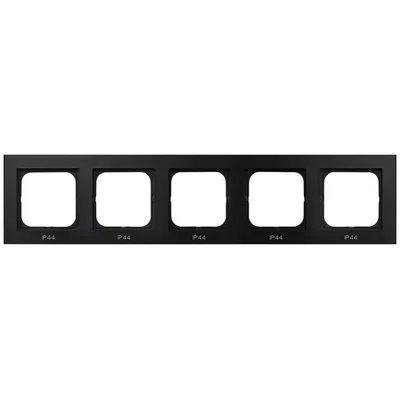

Fivefold frame from the Sonata series, from Ospel. The product catalog number is RH-5R/33.

  • For IP44 switches.
  • With "IP44" imprint.
  • The frame does not have gasket included.



SERIES DESCRIPTION

< strong>Sonatais a series that will perfectly fit into any room, thanks to its simple but decisive design.

Datos técnicos

  • Depth [mm]
    16
  • Color
    Black
  • Material
    Plastic
  • Type
    Standard
  • Level of security
    IP44
  • Height [mm]
    84
  • Accurate color
    Black metallic
  • For modular equipment
    Not applicable
  • Seal
    NO
  • PKWIU
    27.33.13.0
  • Number of modules
    5
  • Shape
    Rectangular
  • Overprint
    IP44
  • Family
    SONATA
  • Width [mm]
    368
  • Surface protection
    varnishing
  • Mounting direction
    Universal
  • Exact material
    PC
  • The shape of the matching accessory
    Square, Rectangular

Otros datos técnicos

  • Number of units
    5
  • Number of units horizontal
    5
  • Number of modules horizontal (module system)
    5
  • With mounting grid
    Yes
  • Suitable for wall duct
    No
  • Label space/information surface
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Transparent
    No
  • Degree of protection (IP)
    IP44
  • Type of fastening
    Other
  • Height
    84 mm
  • Built-in width
    58 mm
  • Diameter bore hole (opening)
    60 mm
  • Mounting direction
    Horizontal and vertical
  • Number of units vertical
    5
  • Number of modules vertical (module system)
    5
  • Suitable for subfloor installation duct box
    No
  • Suitable for built-in installation
    No
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9005
  • With hinged lid
    No
  • Impact strength
    IK03
  • Width
    368 mm
  • Depth
    12 mm
  • Built-in height
    58 mm

Detalles del fabricante

  • Fabricante
    OSPEL S.A.
  • Dirección
    42-436 Wierbka Główna 128 Polska

Empaquetado a granel

una especie de paquete Pudełko
Cantidad 10 uds.
Ancho (m) 0,120
Longitud (m) 0,430
Profundidad (m) 0,100
