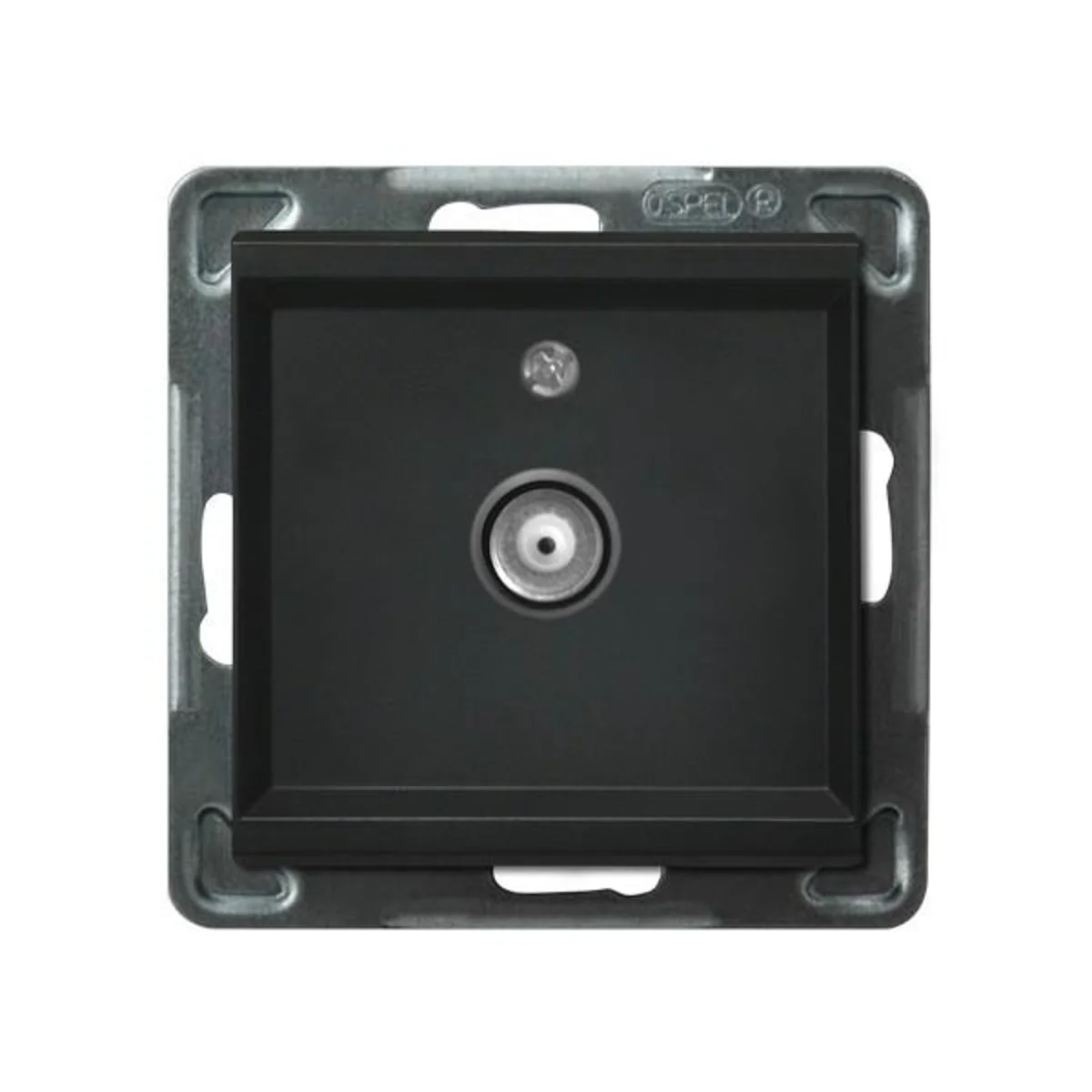

SONATA F-type single antenna socket black metallic GPA-1RF/M/33

Indice locale:
MEA161OSPE
Numero di catalogo:
GPA-1RF/M/33
Codice EAN:
5907577458713
Produttore: OSPEL
Depth [mm]: 35
Number of sockets: 1
Color: Black
Prezzo:
33,48 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 8 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

F-type single antenna socket. To be equipped with a frame.



SERIES DESCRIPTION

Collection Sonata is an arrangement solution meeting the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Dati tecnici

  • Depth [mm]
    35
  • Color
    Black
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    Yes
  • Exact material
    Plastic Metal
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Overprint
    NO
  • Family
    SONATA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Black metallic
  • Mounting depth [mm]
    24
  • Variant
    sat
  • For the frame system
    Yes
  • PKWIU
    26.40.52.0

Altri dati tecnici

  • Model
    End socket
  • Number of modules (module system)
    1
  • Tap loss at 2150 MHz
    0 dB
  • Suitable for cable modem
    No
  • Through loss at 2150 MHz
    0 dB
  • Type of fastening
    Mounting with claw and screw
  • RAL-number (similar)
    9005
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    60 mm
  • Mounting method
    Flush-mounted
  • Tap loss at 860 MHz
    0 dB
  • Number of outlets
    1
  • Through loss at 860 MHz
    0 dB
  • Suitable for remote power supply
    No
  • Colour
    Black
  • Surface protection
    Lacquered
  • Material
    Plastic
  • Halogen free
    Yes
  • Device width
    71 mm
  • Device depth
    35 mm

Dettagli del produttore

  • Produttore
    OSPEL S.A.
  • Indirizzo
    42-436 Wierbka Główna 128 Polska

Imballaggio sfuso

Una specie di pacchetto Pudełko
Quantità 4 pezzi
Larghezza (m) 0,140
Lunghezza (m) 0,162
Profondità (m) 0,090
