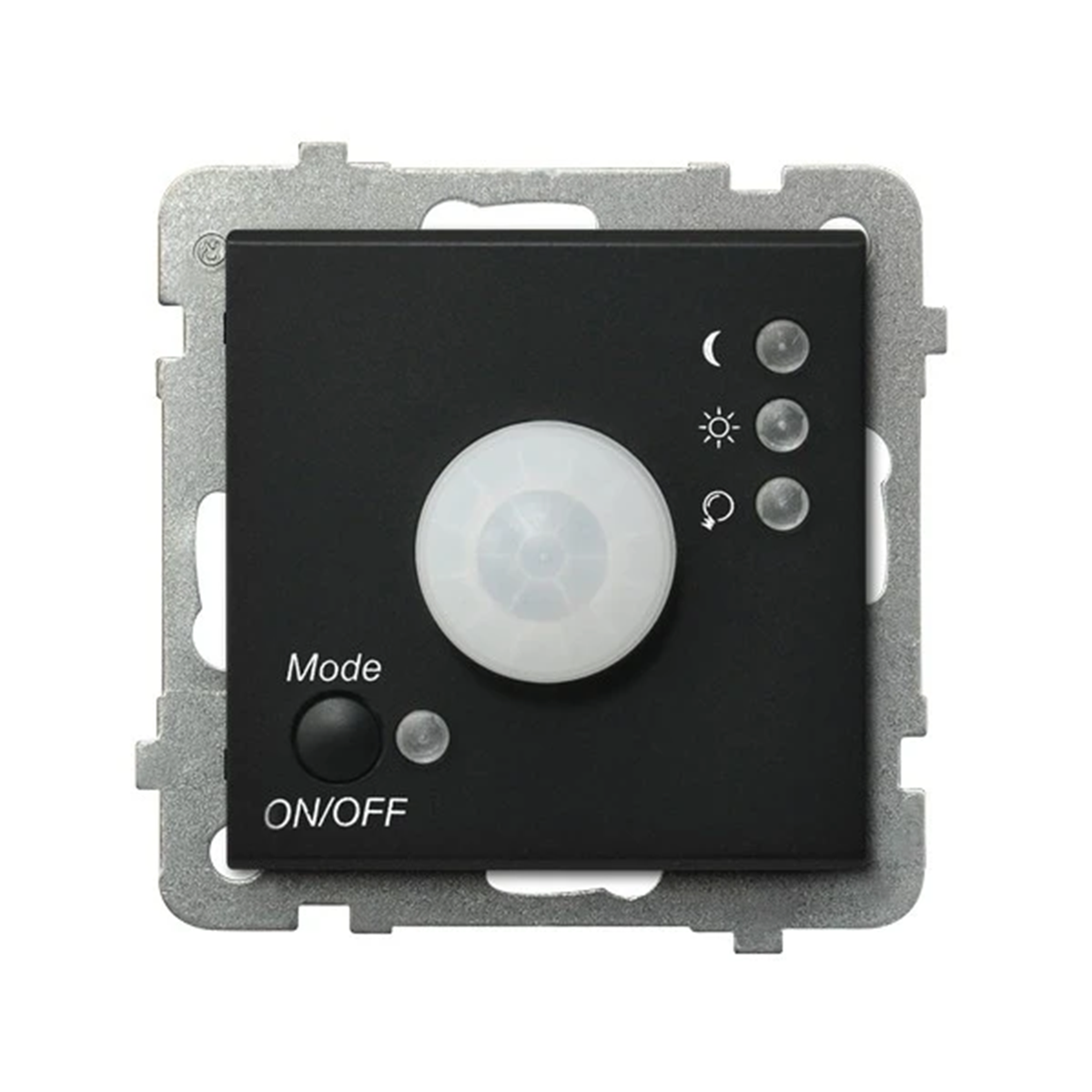

SONATA Electronic motion sensor, frameless black metallic ŁP-16R/M/33
Lokaler Index:
MWC010OSPE
Katalognummer:
ŁP-16R/M/33
EAN-Code:
5907577446697
Preis:
76,69 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Produktbeschreibung
The electronic motion sensor is used to automatically switch on the light sources and signaling equipment (e.g. in home alarm systems) after detecting movement in the coverage area and automatically switch off after the set time.
The design of the sensor allows applicable for building serial installations consisting of any number of sensors, as well as with other standard household connectors (e.g. single-pole or variable). The sensor is controlled by pressing the button located in the lower left corner of the outer cover marked MODE/ON/OFF.
Maximum load: incandescent: 3200W, fluorescent: 750W, inductive: 750W.
Relay activation range: 3s-5min.
Detection field angle: 136°.
Technische Daten
-
ColorBlack
-
MaterialPlastic
-
Rated voltage [V]230
-
Mounting methodThread clamps
-
Typedimmers
-
Accurate colorBlack metallic
-
maximum range [m]7
-
InstallationFlush-mounted
-
FamilySONATA
-
Level of securityIP20
-

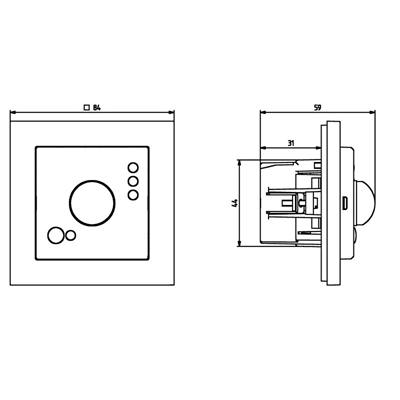

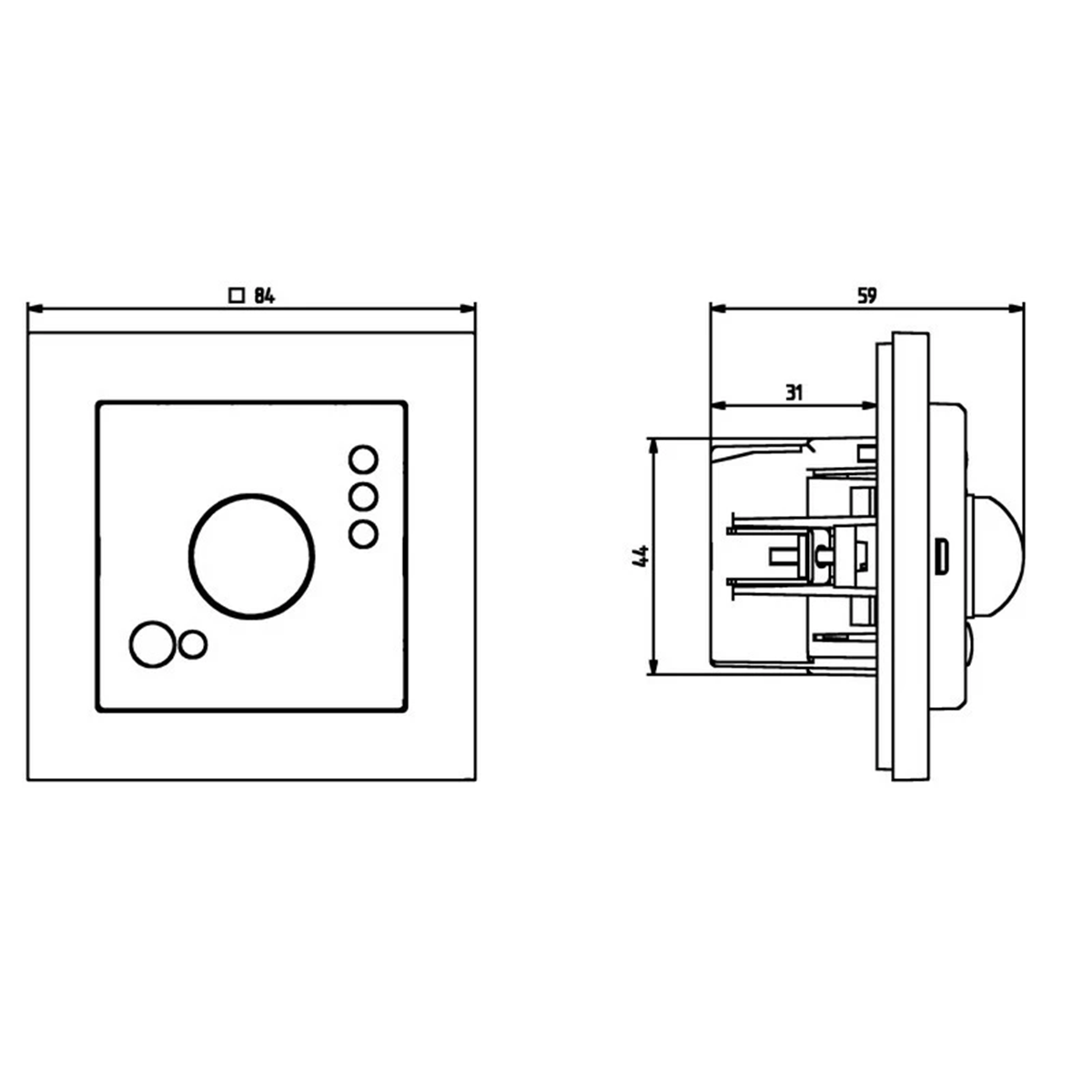

Dimension [mm]84 x 84
-
PKWIU27.33.11.0
Weitere technische Daten
-
ModelMovement sensor
-
HVAC-controlNo
-
Forced switch offYes
-
Creep-under protectionNo
-
Scan angle136 °
-
Staircase light controllerNo
-
Max. reach sideways7 m
-
Max. reach frontally4 m
-
Suitable for wireless transmissionNo
-
With remote controlNo
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityNo
-
Mounting methodFlush-mounted
-
Suitable for wall mountingYes
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
ColourBlack
-
TransparentNo
-
Impact strengthIK03
-
Frequency50 ... 50 Hz
-
Max. duty cycle5 min
-
Switching-on delay0 s
-
Pivoting range sensor, horizontal0 ... 0 °
-
Response value luminosity0 ... 1000 lx
-
Suitable for C-loadYes
-
Max. starting current14 A
-
Control current20 mA
-
With alarm functionNo
-
Height71 mm
-
Built-in depth31 mm
-
Constant light controlNo
-
Forced switch onNo
-
Animal zoneNo
-
NetworkableYes
-
Optimum mounting height1.4 m
-
Bridging switchNo
-
Max. presence range10 m²
-
Diameter reach on floor13 m
-
Remote operationNo
-
Response value sensitivity adjustableYes
-
With signal unitYes
-
Dim function with dimmer basic elementNo
-
Suitable for ceiling mountingNo
-
Connection typeScrewed terminal
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
RAL-number (similar)9005
-
Degree of protection (IP)IP20
-
Voltage typeAC
-
Min. switch-on time3 s
-
Switch-off delay0 s
-
Detection angle horizontal0 ... 136 °
-
Pivoting range sensor, vertical0 ... 0 °
-
Max. switching power3200 W
-
Number of switching zones1
-
Min. starting current0 A
-
Substation inputNo
-
Width71 mm
-
Depth59 mm
-
Min. depth of built-in installation box60 mm
Hersteller-Details
-
HerstellerOSPEL S.A.
-
Adresse42-436 Wierbka Główna 128 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Pudełko |
| Menge | 5 stk. |
| Breite (m) | 0,162 |
| Länge (m) | 0,237 |
| Tiefe (m) | 0,090 |
