SONATA Double staircase connector cashmere ŁP-10R/M/82
Index local:
MMS160OSPE
Numéro de catalogue:
ŁP-10R/M/82
Code EAN:
5906729029634
Prix:
49,19 zł
gross / pcs.
(y compris la TVA 23%)
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Description du produit

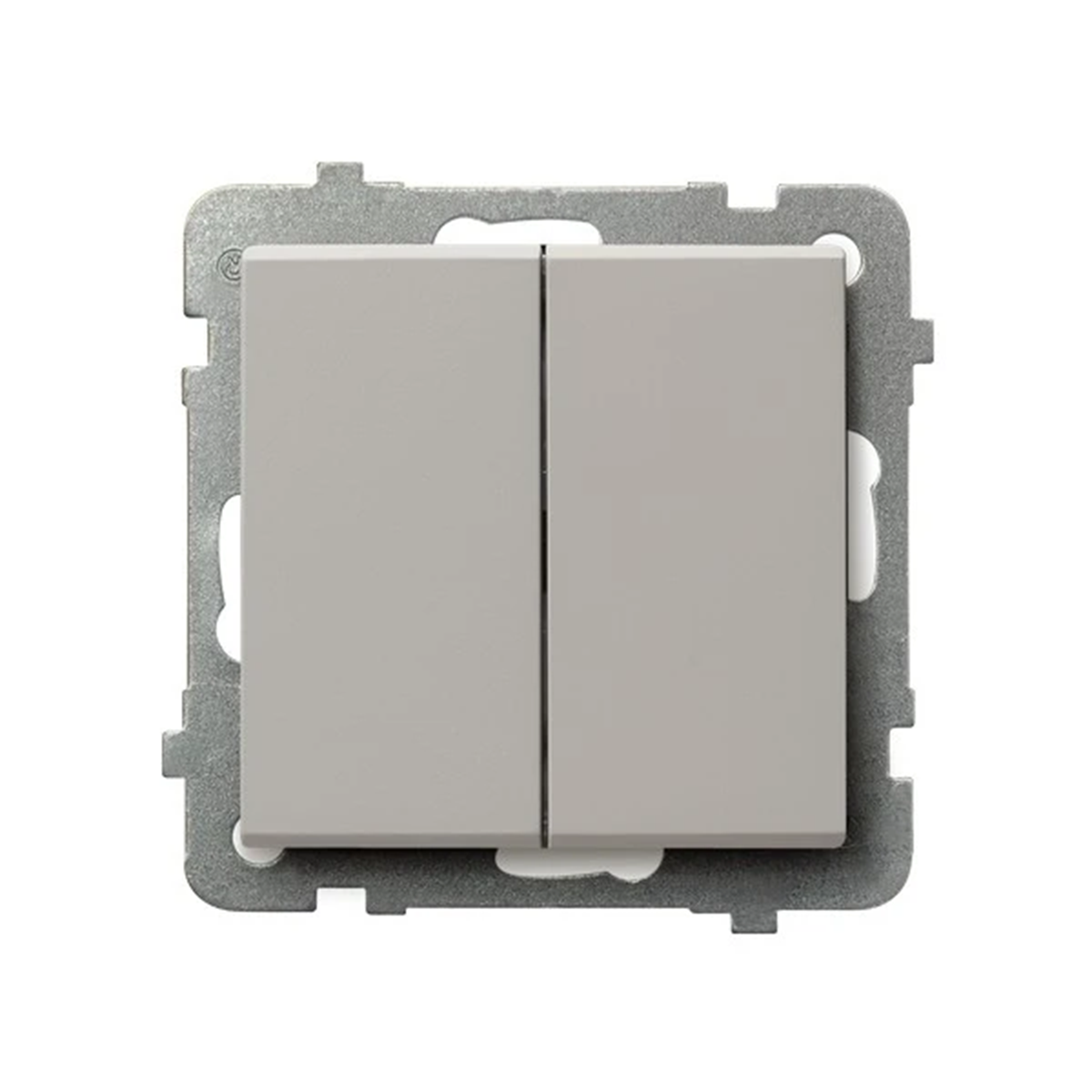

Stair switch from the Sonata series, from the manufacturer Ospel. The product catalog number isŁP-10R/M/82.
FEATURES
- Double.
- Module without frame.
- Threadless terminals.
- Color cashmere.
- Rated current16AX.
- Rated voltage 230V.
- Mounting flush-mounted.
- Protection degree IP20.

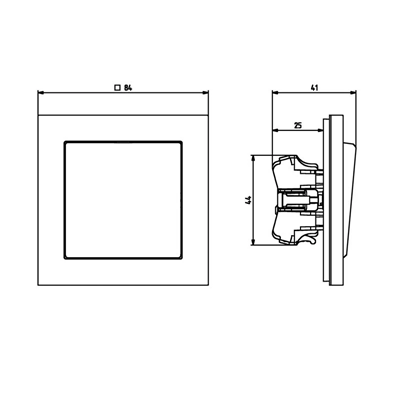

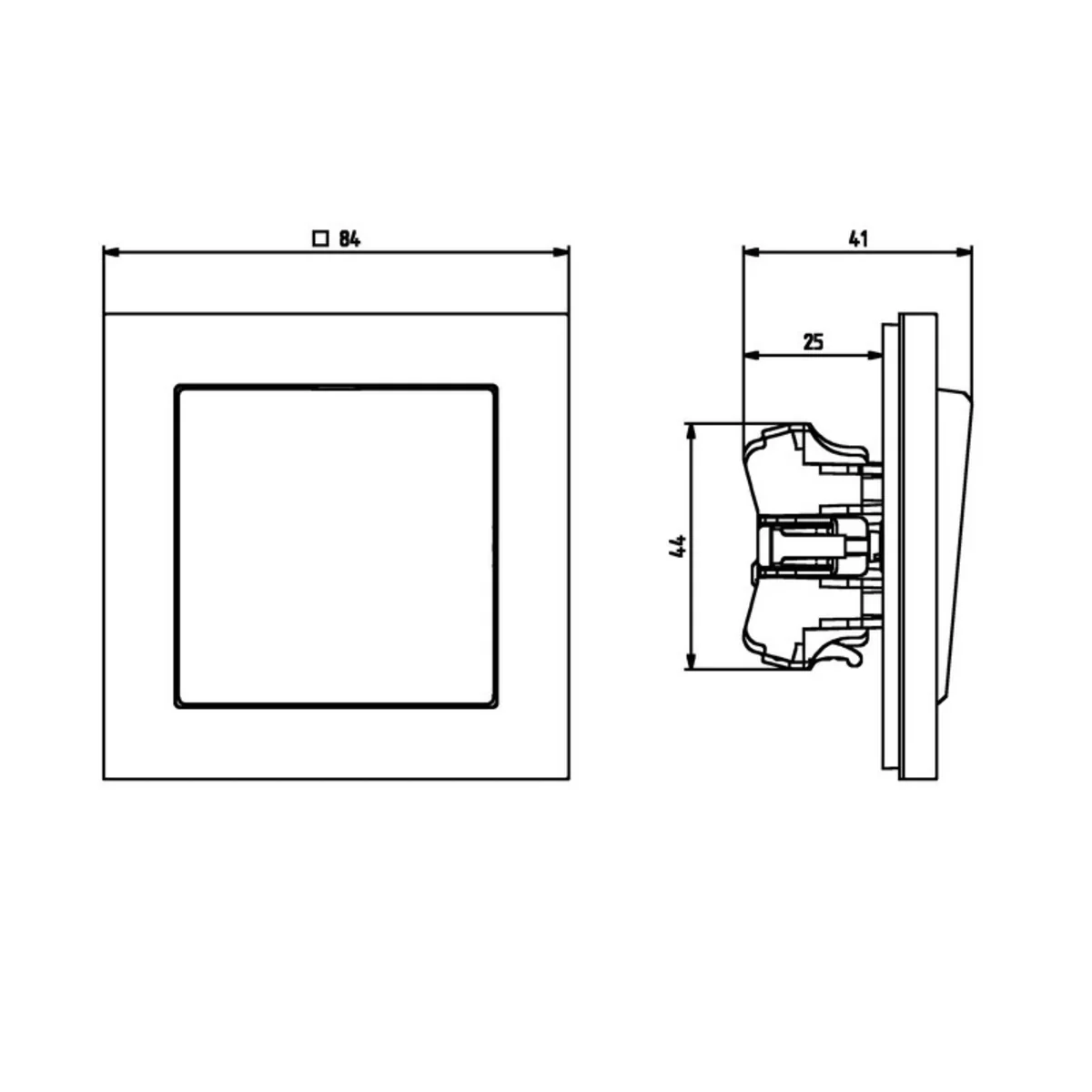

- Dimensions: 71 x 71 mm (height x width).
SERIES DESCRIPTION
The Sonata collection is a comprehensive and functional interior design solution that meets the highest technological standards. This modular series is based on a distinct and simple square.
Diversified in terms of usability and safety, the Sonata series products can be easily used in various rooms, including living rooms, bedrooms, hallways, and even more demanding spaces such as kitchens and bathrooms.
Données techniques
-
Depth [mm]42
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]71
-
Height [mm]71
-
Accurate colorCashmere
-
Mounting depth [mm]25
-
For the frame systemYes
-
Number of keys2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreadless
-
Exact materialPlastic Metal
Autres données techniques
-
Wiring system2-pole switch
-
Number of modules (module system)1
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Anti-bacterial treatmentNo
-
Surface finishingMatt
-
IlluminationNo
-
Nominal voltage250 V
-
Device width71 mm
-
Device depth42 mm
-
Min. depth of built-in installation box60 mm
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface protectionLacquered
-
ColourOther
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Device height71 mm
-
Built-in depth25 mm
Détails du fabricant
-
ProducteurOSPEL S.A.
-
Adresse42-436 Wierbka Główna 128 Polska
-
E-mail
Emballage en vrac
| Une sorte de paquet | Pudełko |
| Quantité | 4 pcs. |
| Largeur (m) | 0,710 |
| Longueur (m) | 0,710 |
| Profondeur (m) | 0,250 |
