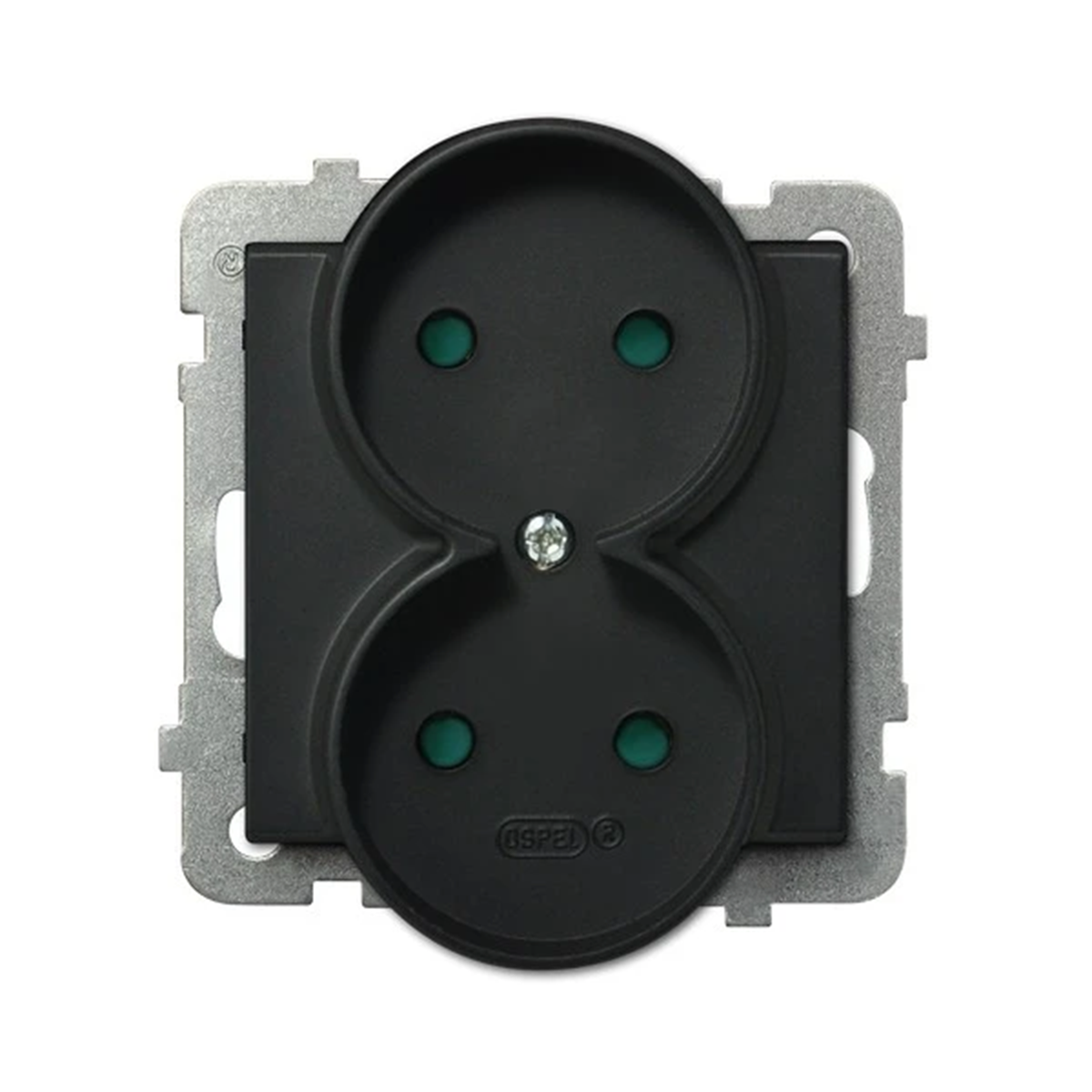

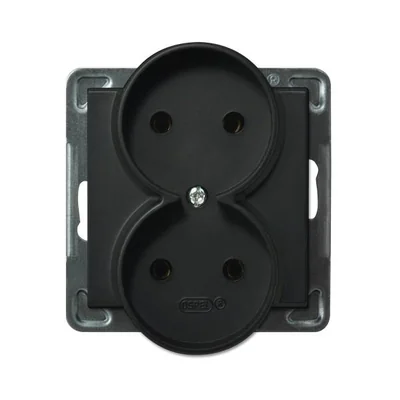

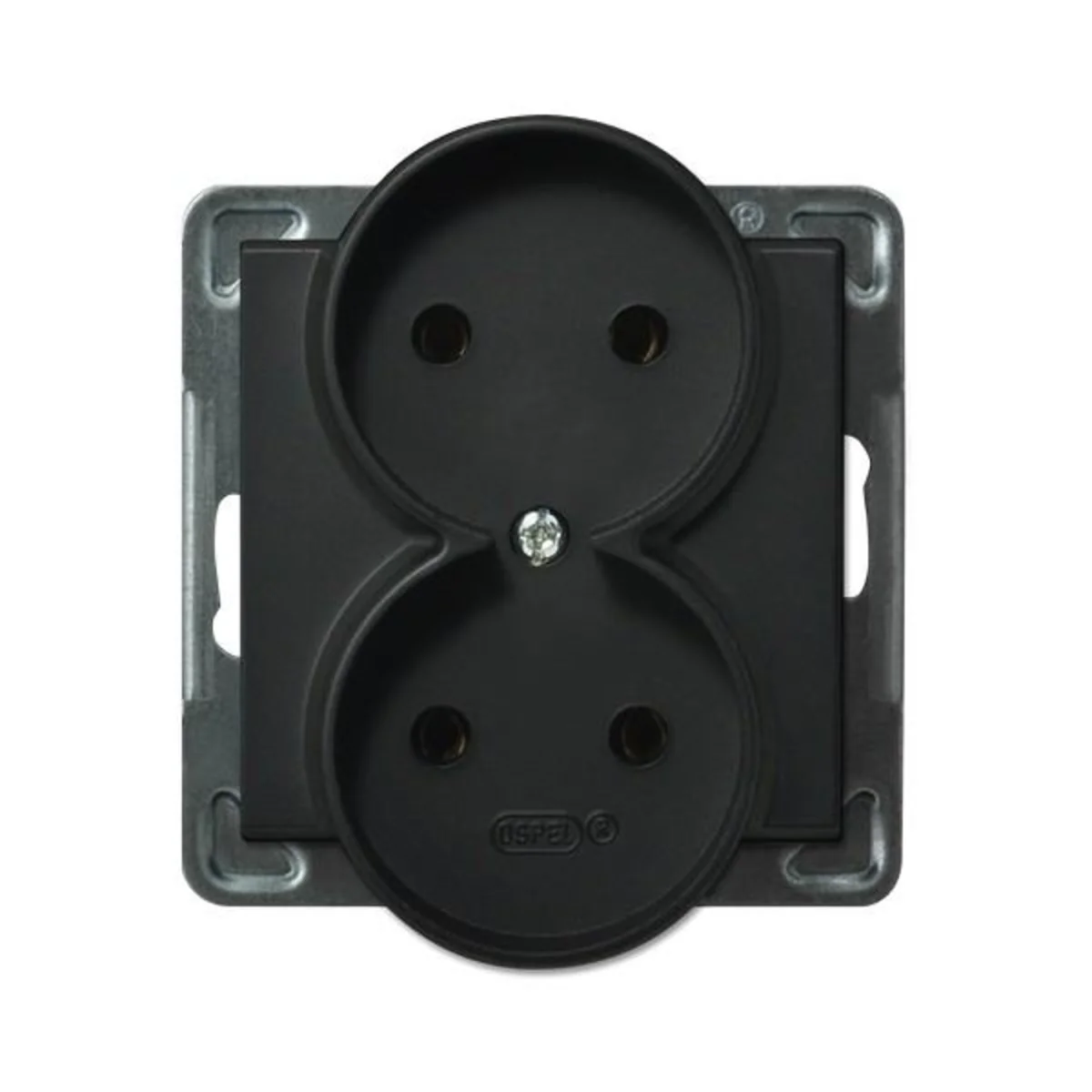

SONATA Double socket without frame black metallic GP-2RR/M/33
local index:
MEE172OSPE
Catalog No:
GP-2RR/M/33
EAN code:
5907577446369
Price:
6,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket double, without grounding, to be equipped with a frame.
SERIES DESCRIPTION
Collection Sonata is the highest technological standard, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]48
-
ColorBlack
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]71
-
GroundLack
-
Surface protectionvarnishing
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorBlack metallic
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourBlack
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height81 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactNo
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units2
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9005
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth48 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
