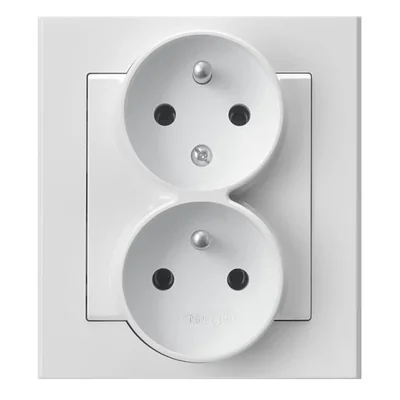

SONATA Double socket with phase invariance white GP-2RC/00
local index:
MEE158OSPE
Catalog No:
GP-2RC/00
EAN code:
5907577445225
Price:
6,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

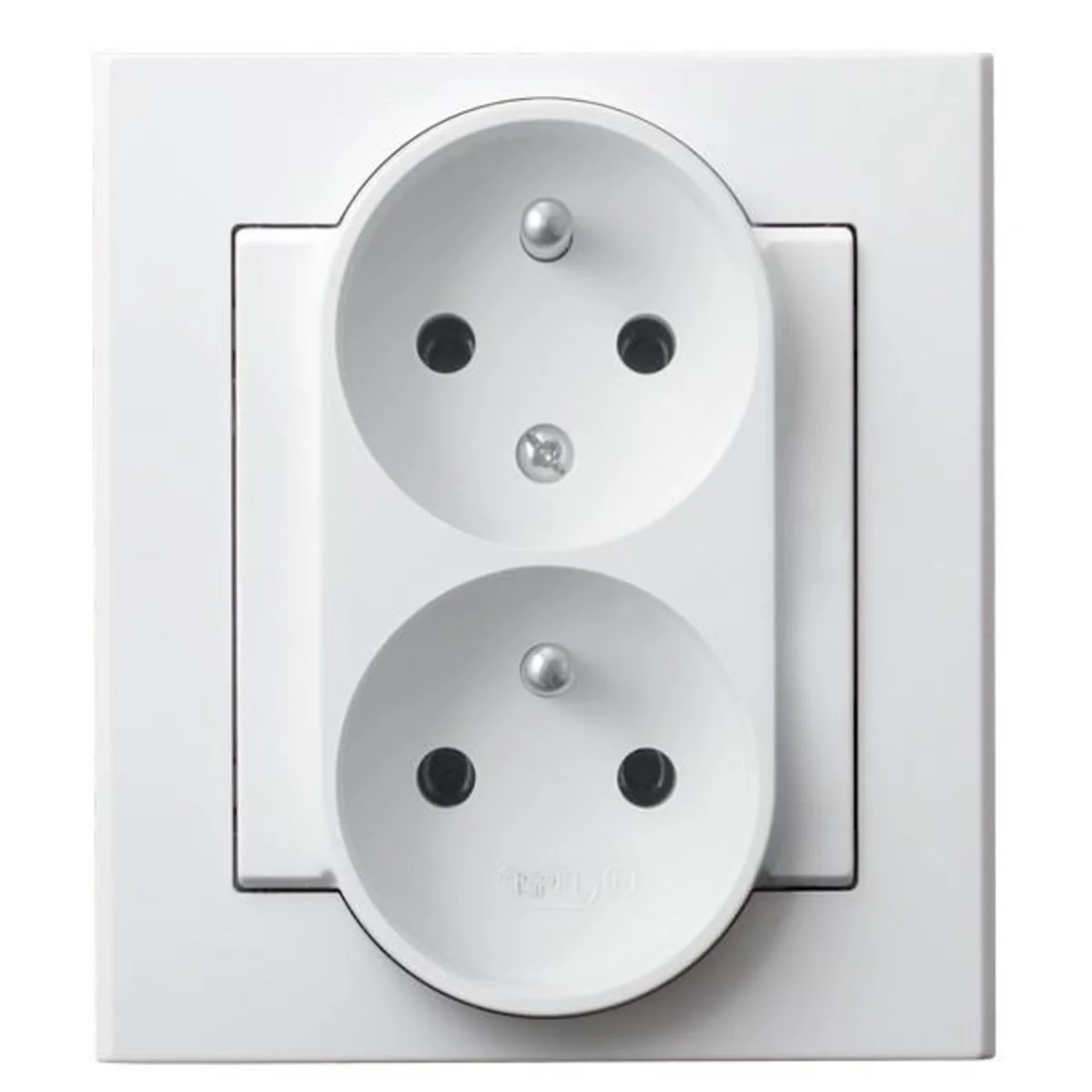

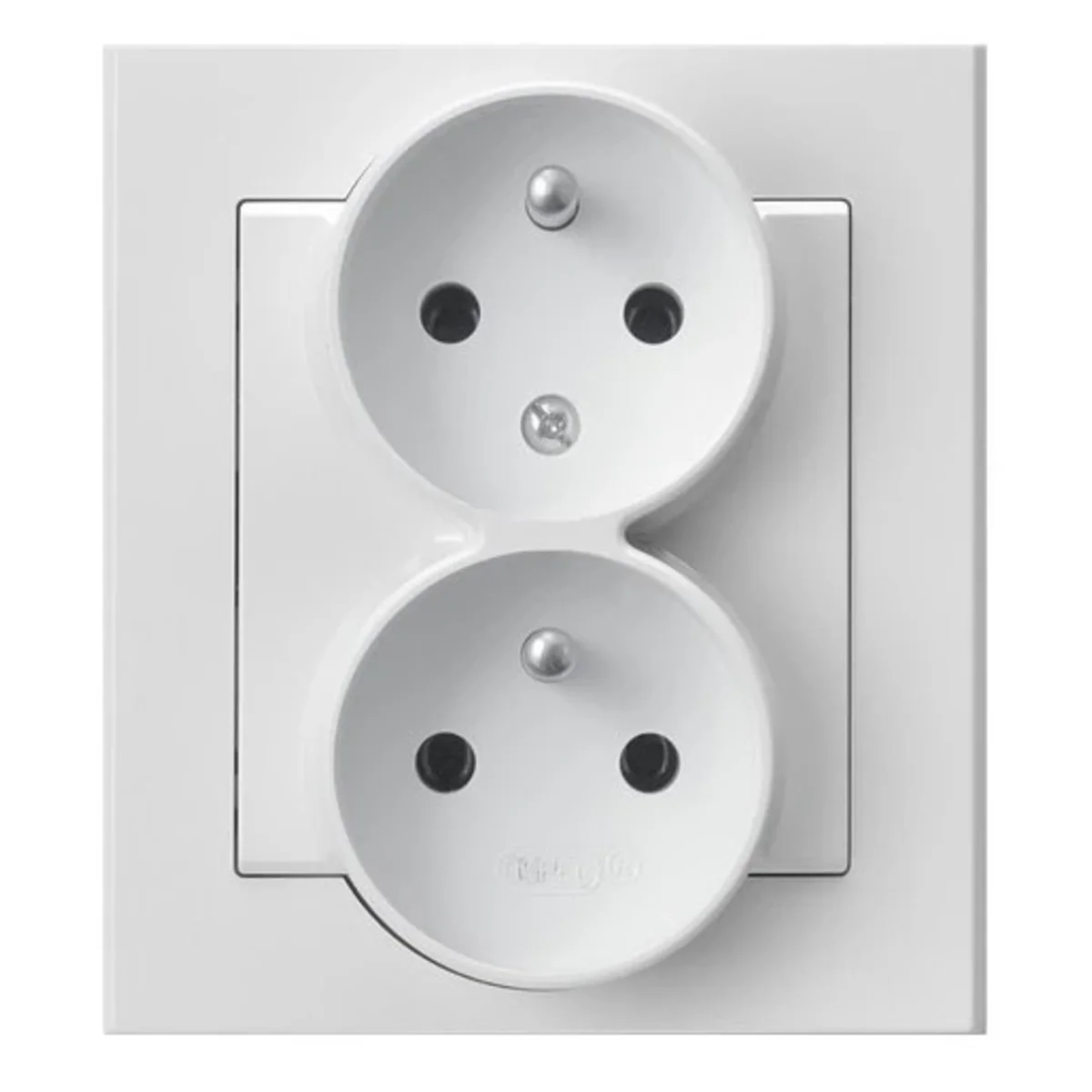

Electrical socket double, equipped with a frame, with phase invariance function.
SERIES DESCRIPTION
The Sonata collection is an arrangement solution that meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

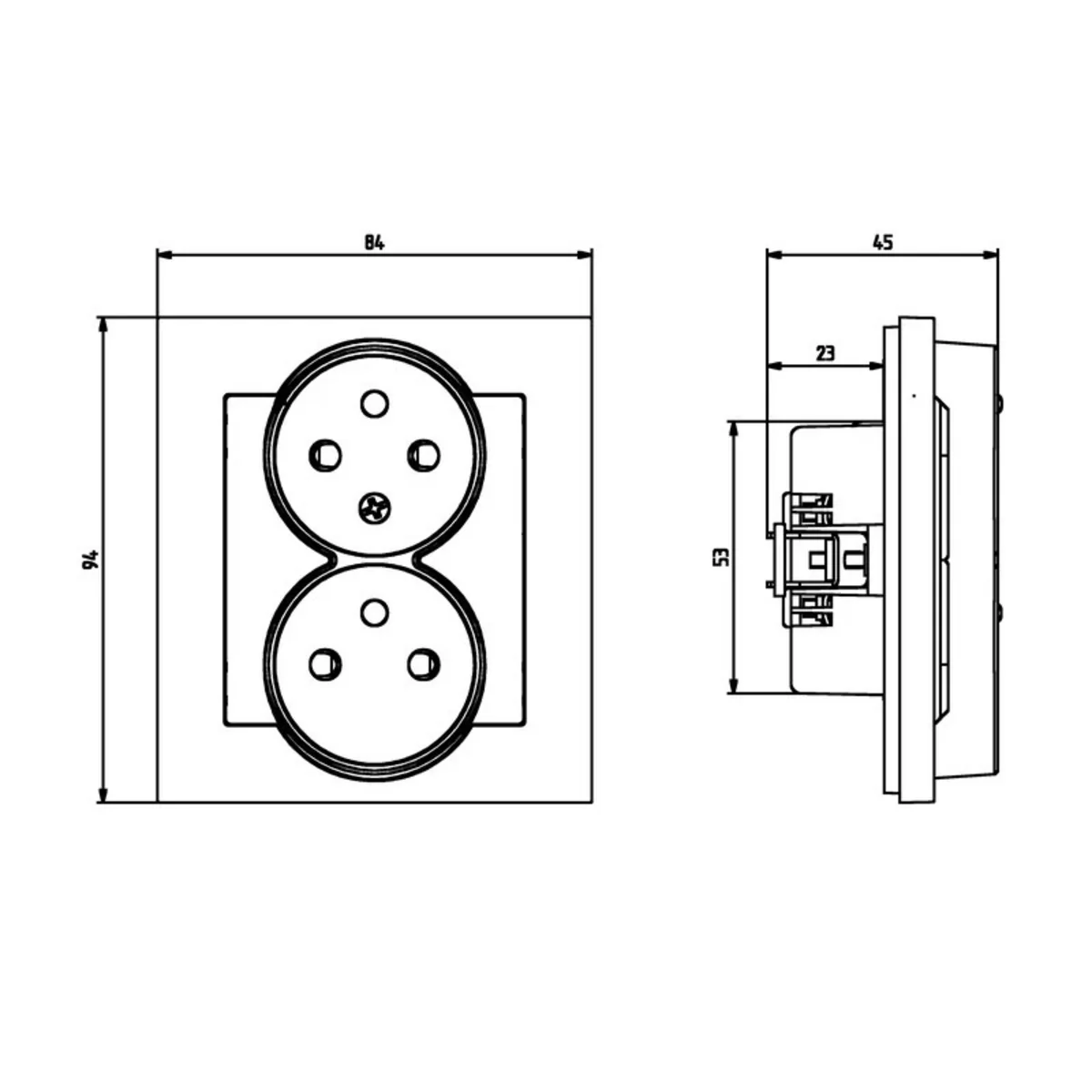

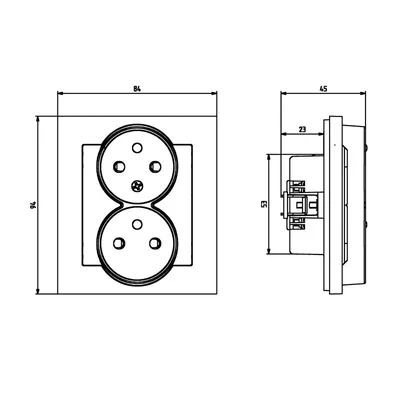

Technical data
-
Depth [mm]45
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySONATA
-
Width [mm]84
-
GroundHurt
-
Surface protectionNatural
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemNO
-
Phase invariance functionYes
-
Number of sockets2
-
ShapeRectangular
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]90
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
PKWIU27.33.13.0
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)0
-
Connection typeScrewed terminal
-
With enhanced contact protectionYes
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height94 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units2
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9003
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width84 mm
-
Device depth45 mm
Manufacturer details
-
ManufacturerOSPEL S.A.
-
Address42-436 PILICA Wierbka, ul. Główna 128
-
Phone number
-
E-mail
-
Tax identification number6490010864
-
GLN5909002028034
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 5 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,237 |
| Depth (m) | 0,090 |
