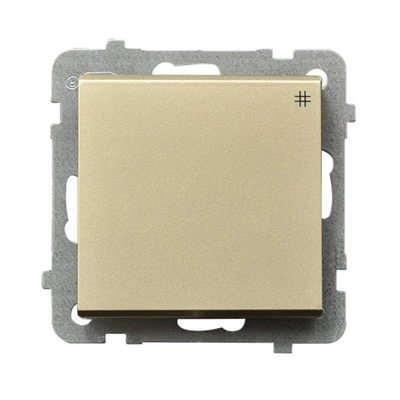

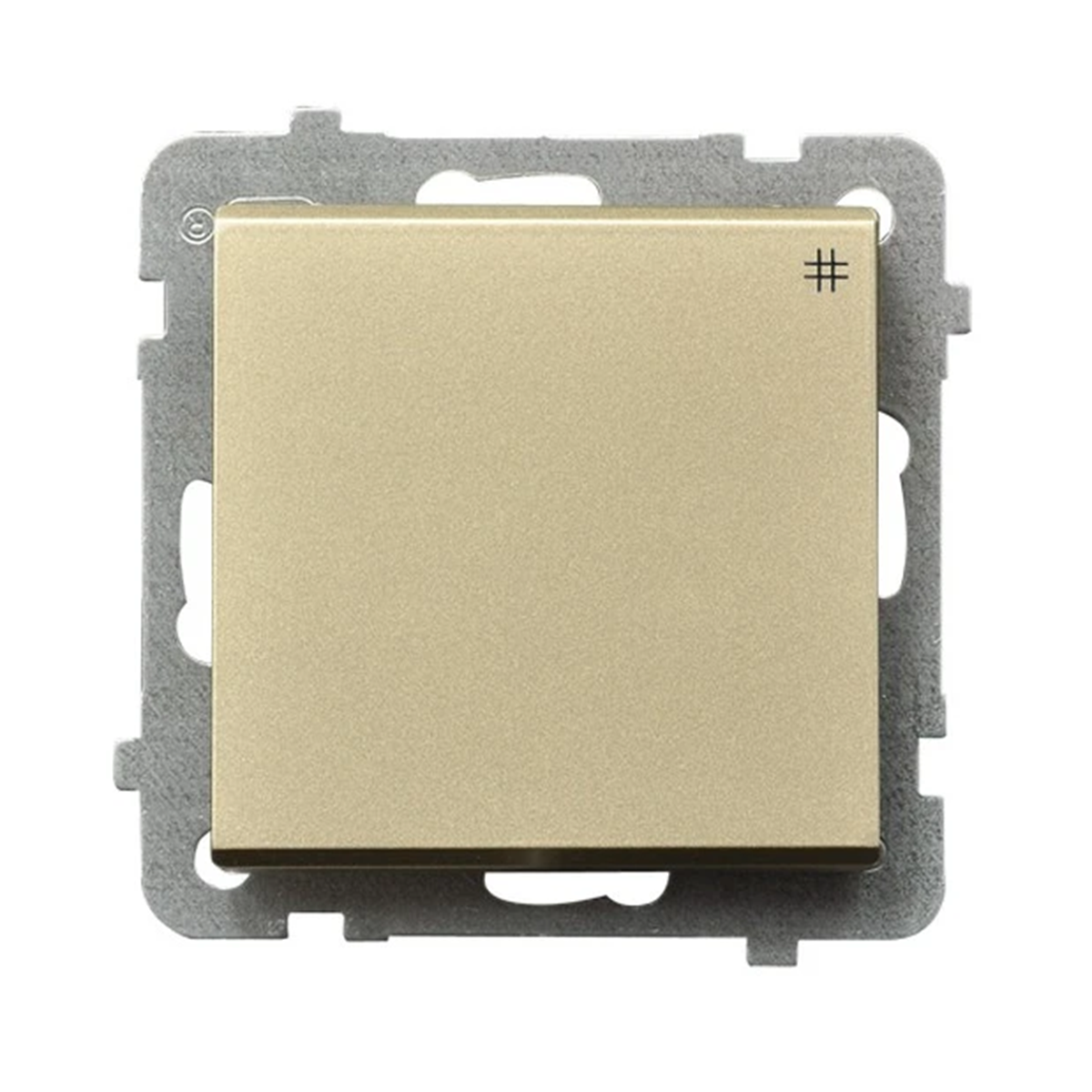

SONATA Cross connector champagne gold, frameless
SONATA Cross connector champagne gold, frameless

Click on the photo to enlarge

SONATA Cross connector champagne gold, frameless
SONATA Cross connector champagne gold, frameless
OSPEL

SONATA Cross connector champagne gold, frameless ŁP-4R/M/39

local index:
MMK027OSPE
Catalog No:
ŁP-4R/M/39
EAN code:
5907577447809
Price:
8,86 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Cross connector from the Sonata series, from Ospel. The product catalog number is ŁP-4R/M/39.



SERIES DESCRIPTION

Sonata < /strong>is a modular series that will perfectly fit into any room, thanks to its simple but strong design. Cross connector characterizes the features of this unique series.

Print the product sheet Report an error

Technical data

  • Depth [mm]
    42
  • Color
    Golden
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Champagne gold
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Cross
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal

Other technical data

  • Wiring system
    Intermediate switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    no
  • Mounting method
    Flush-mounted
  • With mounting plate
    no
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Gold
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    no
  • Washing machine switch
    no
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    1014
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm
