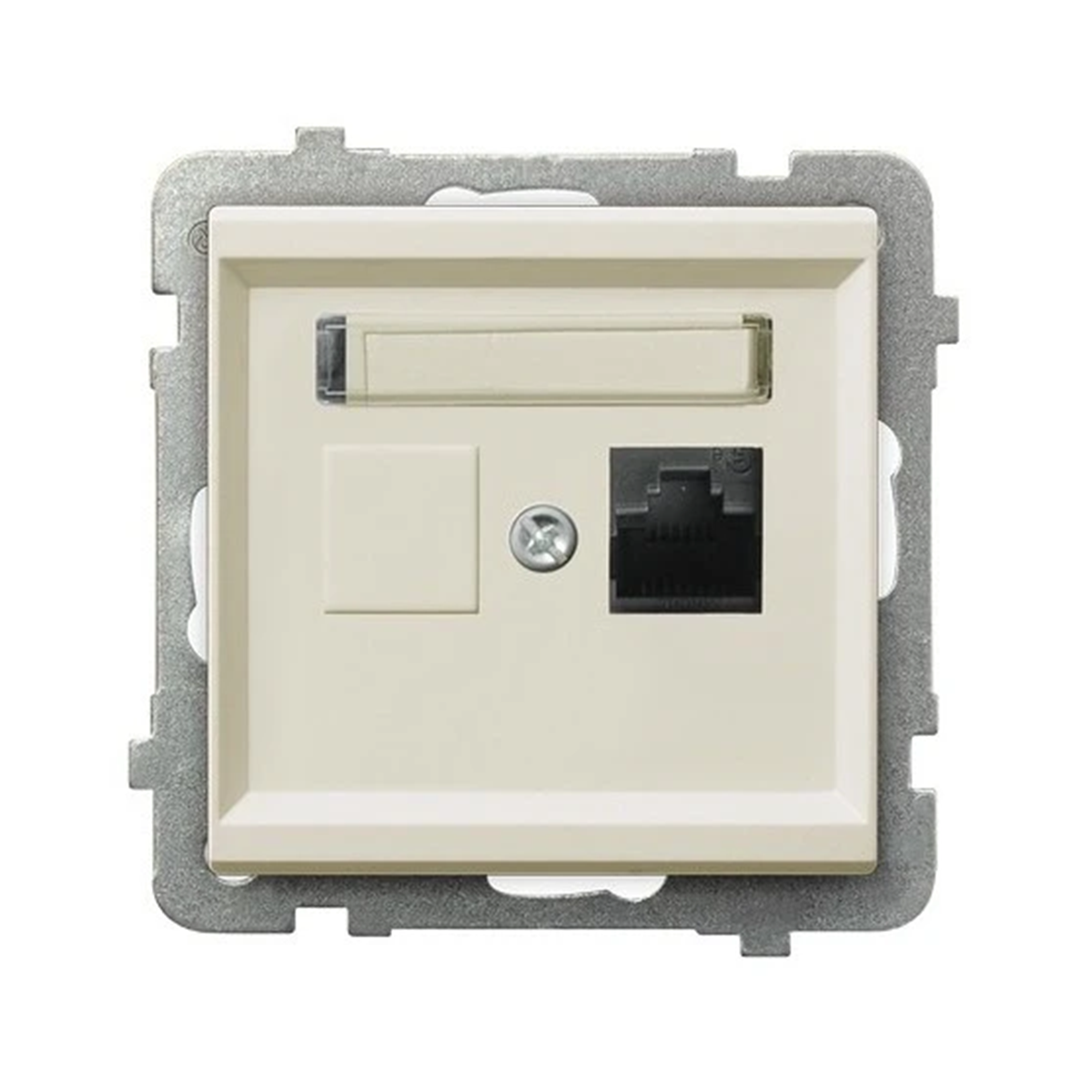

SONATA Computer socket, single, cat. 5e ecru GPK-1R/K/M/27
local index:
MEI030OSPE
Catalog No:
GPK-1R/K/M/27
EAN code:
5907577445003
Price:
13,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single RJ-45 computer socket, category 5e MMC. It is used to connect a twisted pair signal cable, unshielded category 5e. The data transfer rate is 1Gb/s.
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards, and also a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]33
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeInternet
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Terminal typeThreadless MMC
-
For the frame systemYes
-
Dust coverNO
-
Exact materialPlastic Metal
-
Category5e
-
ShapeSquare
-
Fixingclaws screws
-
Descriptive fieldYes
-
FamilySONATA
-
Width [mm]71
-
VersionUTP
-
Surface protectionNatural
-
Mounting depth [mm]22
-
VariantRJ45 (twisted pair)
-
Number of internet sockets1
-
Extra socketBlank space
-
PKWIU26.30.30.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with complete housing
-
With buses/couplingsYes
-
Category5E
-
RAL-number1013
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversNo
-
Mounting method shielding connectionNone
-
With dust coverNo
-
Mechanical codingNo
-
Device width75 mm
-
Device depth38 mm
-
Duct installationNo
-
Type of fasteningEngage (snap)
-
Type of connectorRJ45 8(4)
-
Suitable for number of connectors1
-
ColourWhite
-
Connection typeOther
-
Shielded housingNo
-
With label spaceYes
-
Separate strain reliefNo
-
Outlet directionStraight
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height75 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
