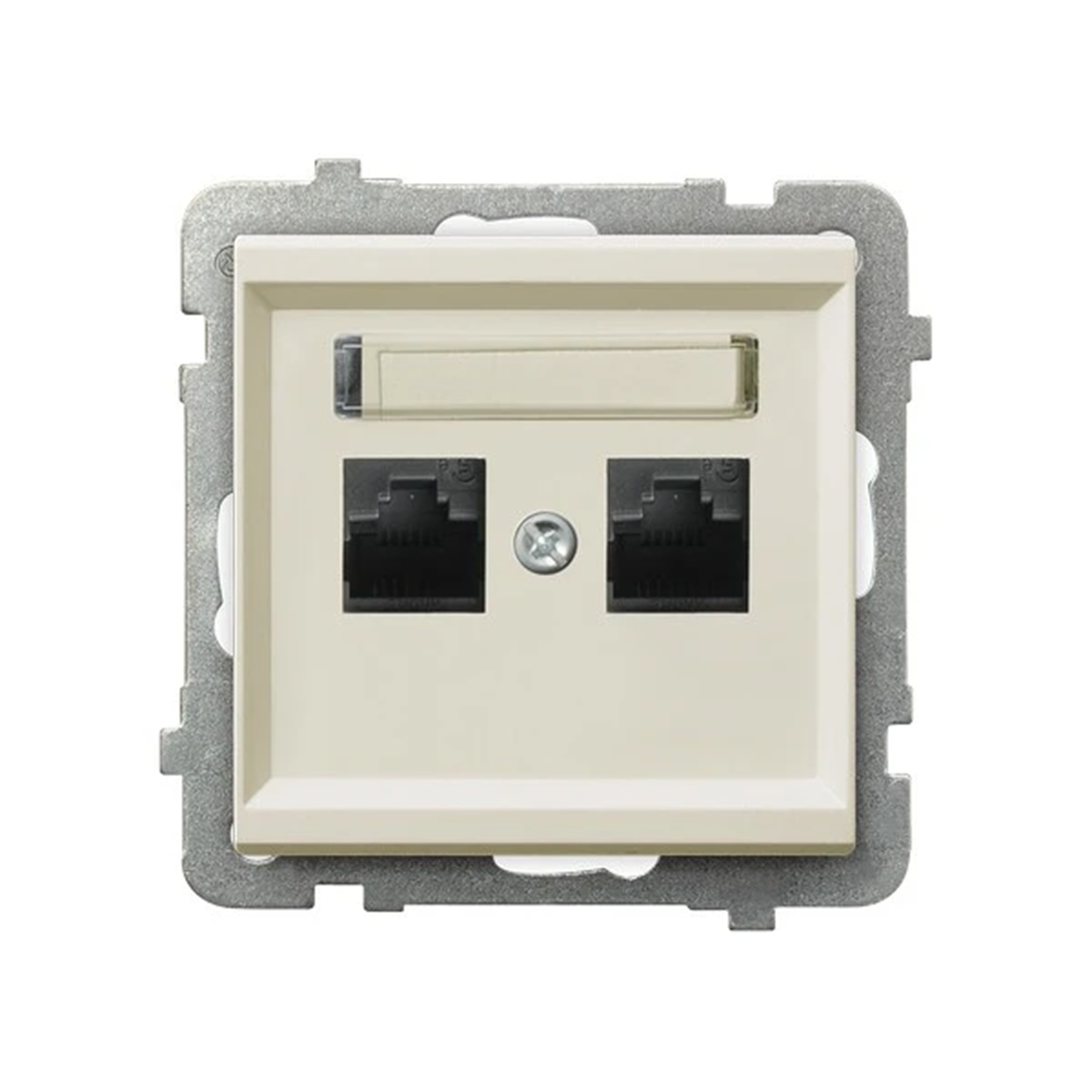

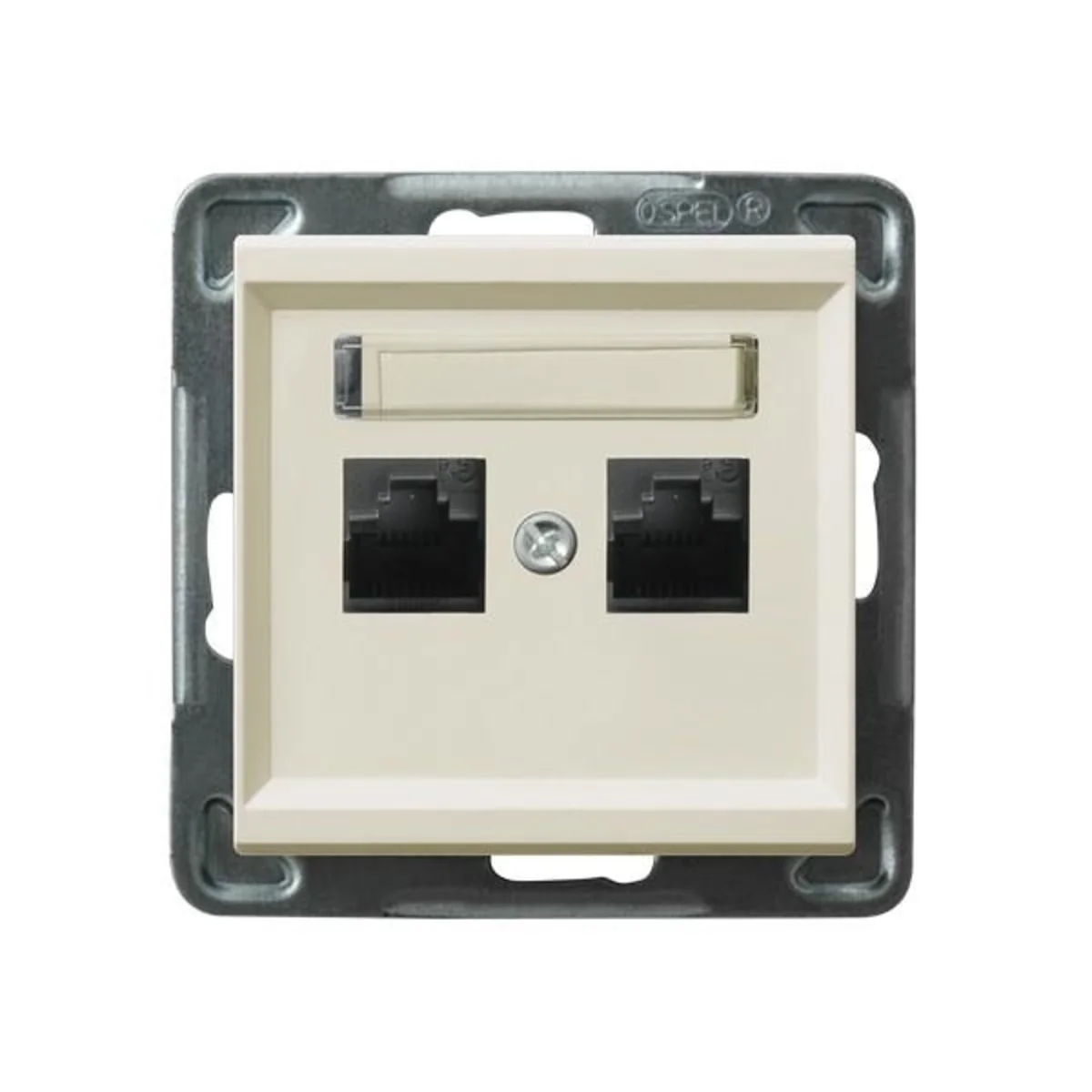

SONATA Computer socket, double, cat. 5e, ecru, without frame GPK-2R/K/M/27

local index:
MEI083OSPE
Catalog No:
GPK-2R/K/M/27
EAN code:
5907577445010
Price:
21,89 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Double computer socket RJ-45 category 5e MMC. It is used to connect two twisted pair signal cables, unshielded, category 5e. The data transfer rate is 1Gb/s.



SERIES DESCRIPTION

The Sonata  collection meets the highest technological standards, and also a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

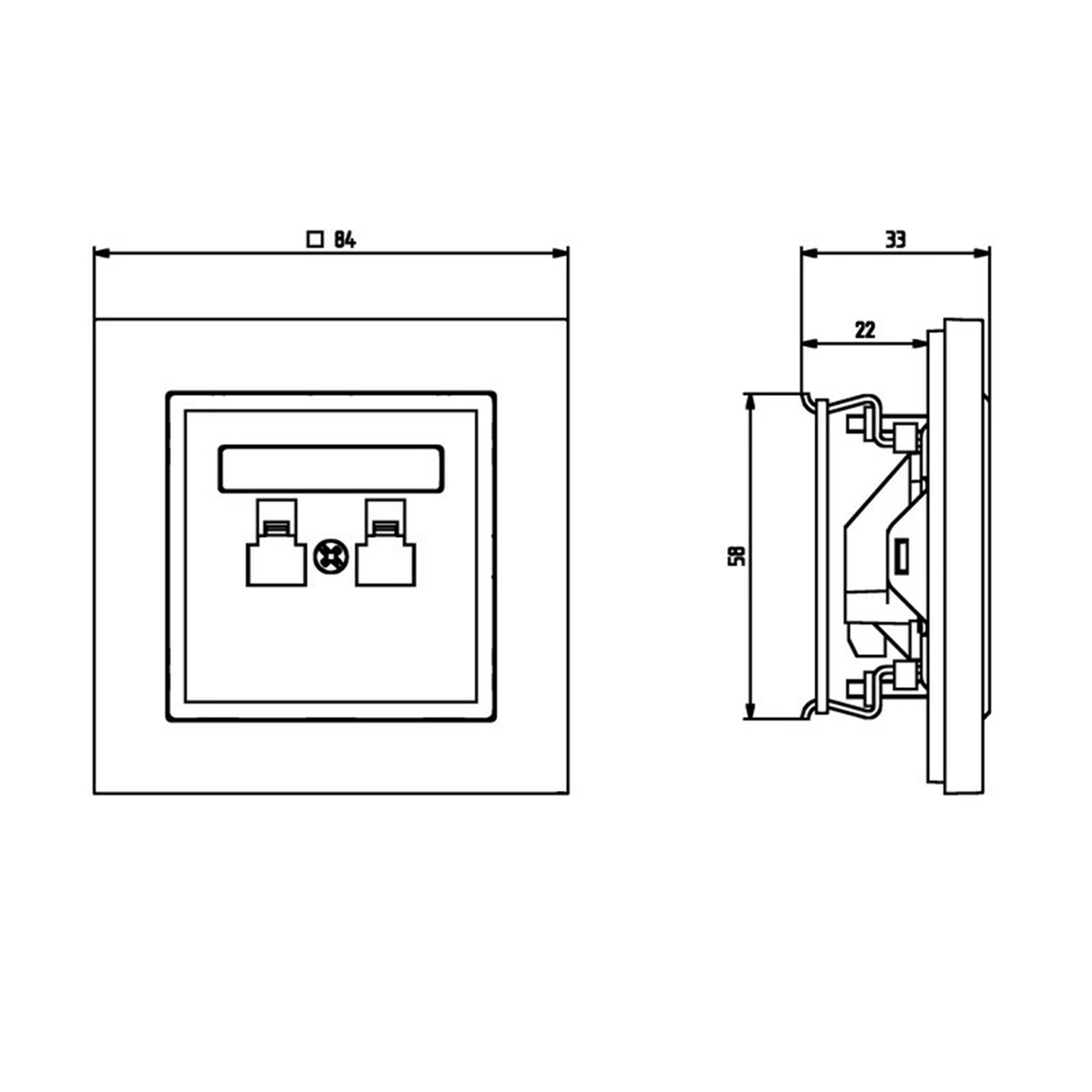

Technical data

  • Depth [mm]
    33
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    Ecru
  • Terminal type
    Threadless MMC
  • For the frame system
    Yes
  • Dust cover
    NO
  • Category
    5e
  • Shape
    Square
  • Fixing
    claws screws
  • Descriptive field
    Yes
  • Family
    SONATA
  • Width [mm]
    71
  • Version
    UTP
  • Surface protection
    Natural
  • Mounting depth [mm]
    22
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    2
  • Exact material
    Plastic Metal

Other technical data

  • Surface mounting
    no
  • Floor box/subfloor mounted
    no
  • Assembly arrangement
    Basic element with complete housing
  • With buses/couplings
    yes
  • Category
    5E
  • RAL-number
    1013
  • Shielded buses
    no
  • Separate earthing connection
    no
  • Compatible with third-party covers
    no
  • Mounting method shielding connection
    None
  • With dust cover
    no
  • Mechanical coding
    no
  • Device width
    75 mm
  • Device depth
    38 mm
  • Duct installation
    no
  • Type of fastening
    Engage (snap)
  • Type of connector
    RJ45 8(4)
  • Suitable for number of connectors
    2
  • Colour
    White
  • Connection type
    Other
  • Shielded housing
    no
  • With label space
    yes
  • Separate strain relief
    no
  • Outlet direction
    Straight
  • Degree of protection (IP)
    IP20
  • Colour coding
    yes
  • Device height
    75 mm
