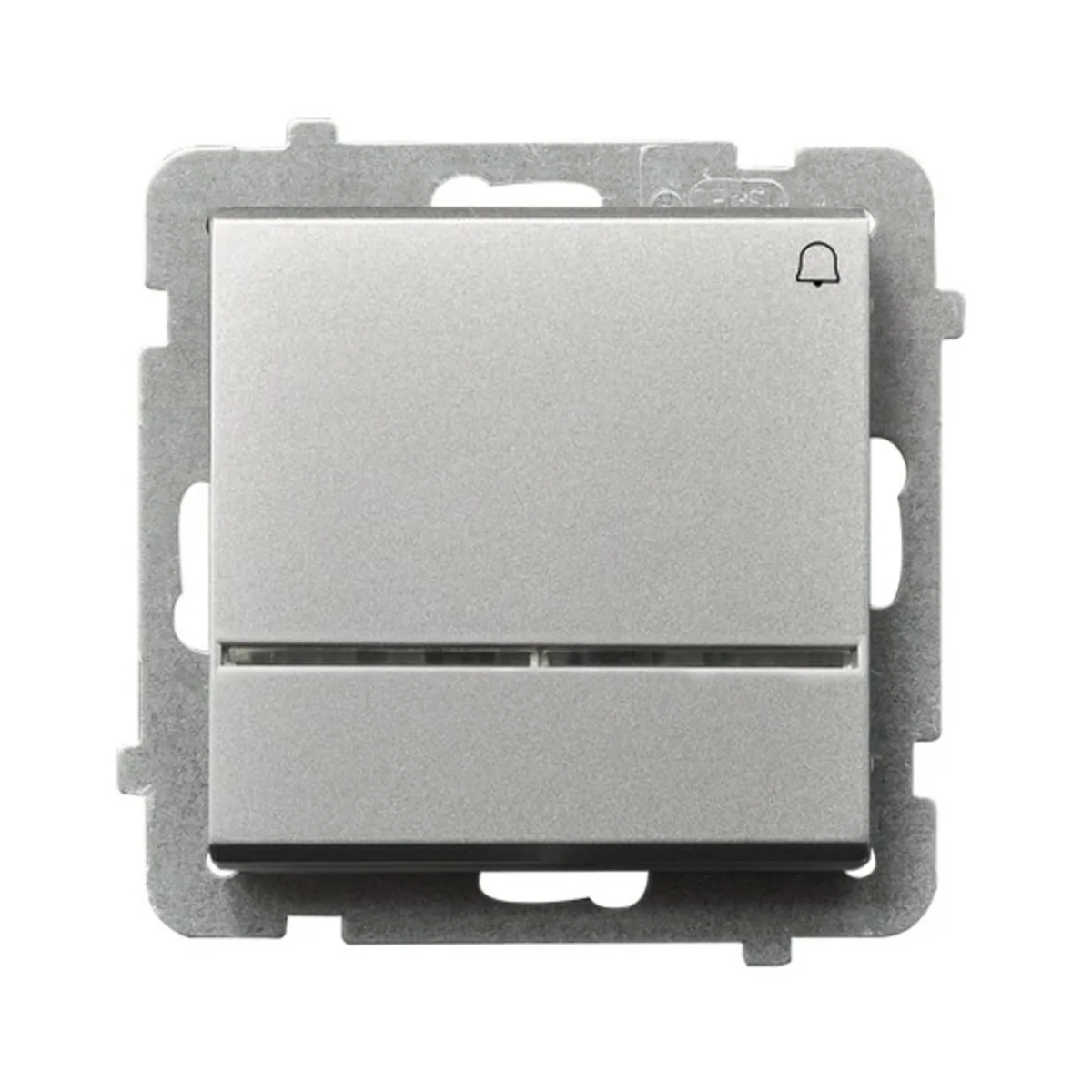

SONATA "bell" closing switch with illuminated matt silver, without frame ŁP-6RS/M/38

local index:
MMZ142OSPE
Catalog No:
ŁP-6RS/M/38
EAN code:
5907577447267
Manufacturer: OSPEL
Depth [mm]: 42
Number of keys: 1
Color: Silver
Price:
8,83 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Short-circuit switch "bell" with backlight,  Sonata series, from the manufacturer Ospel. Product catalog number it is ŁP-6RS/M/38. Matte silver



FEATURES

  • To be equipped with a frame.
  • Symbol "bell" on the key.
  • Backlight - LTS lamp.
  • To obtain IP44 splash-proof class, use a sealing kit for switches.



SERIES DESCRIPTION

The Sonata  collection is a comprehensive and functional arrangement solution meeting the highest technological standards. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SONATA
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Accurate color
    matt silver
  • Mounting depth [mm]
    25
  • Variant
    Bell
  • Exact material
    Plastic Metal
  • Backlight color
    Blue
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    71
  • Version
    Confident
  • Surface protection
    varnishing
  • Backlight
    Yes
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LTS
  • PKWIU
    27.33.11.0

Other technical data

  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7047
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    Yes
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
