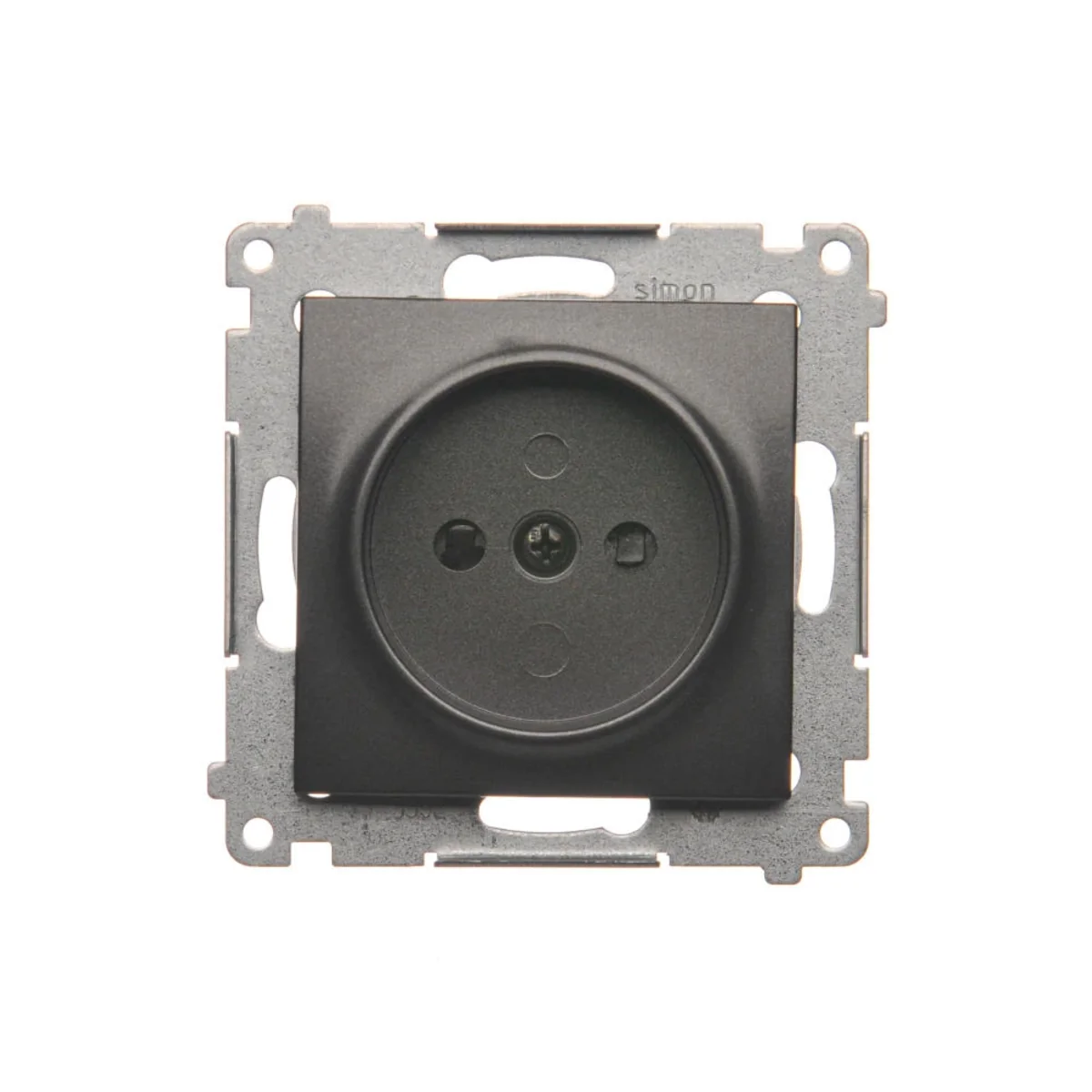

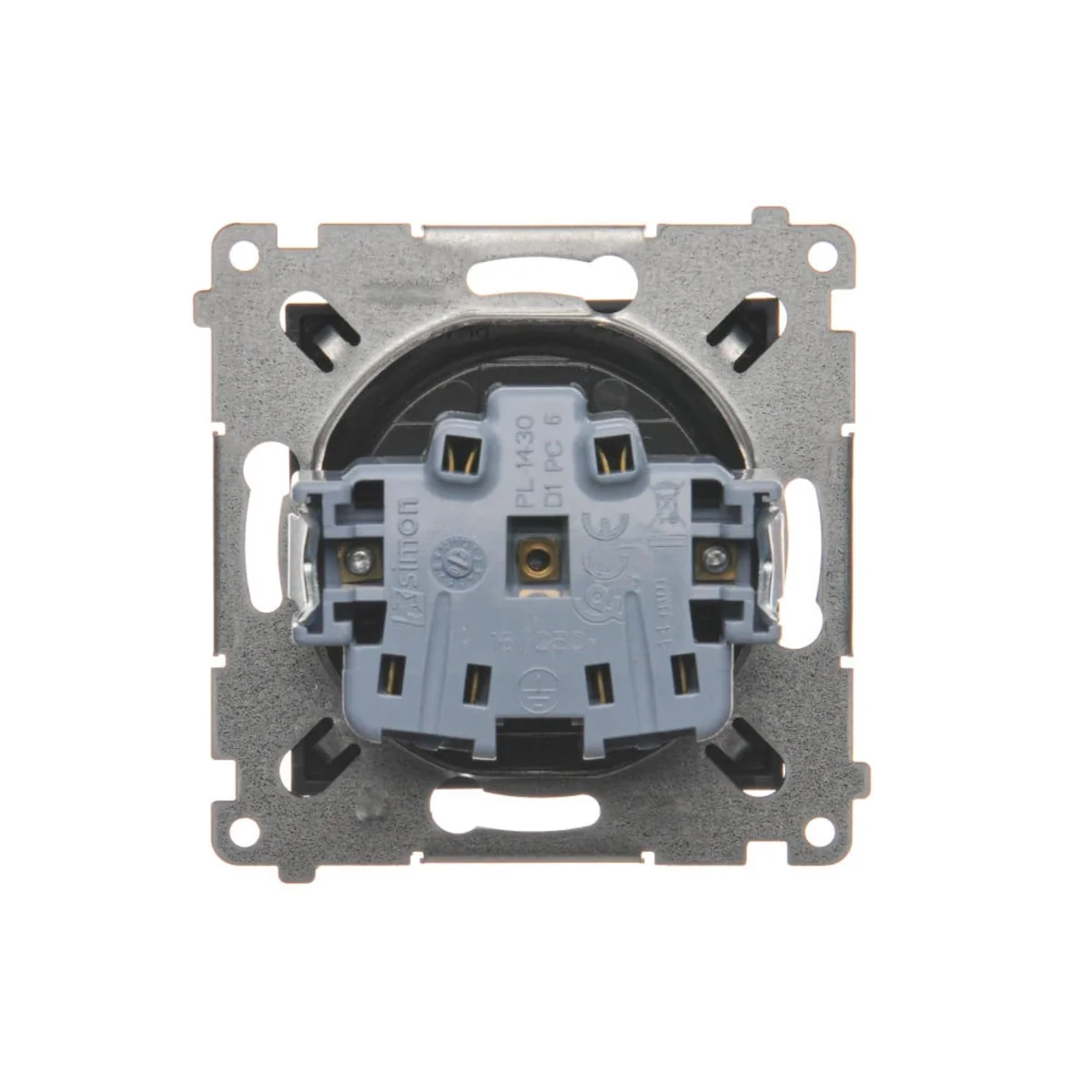

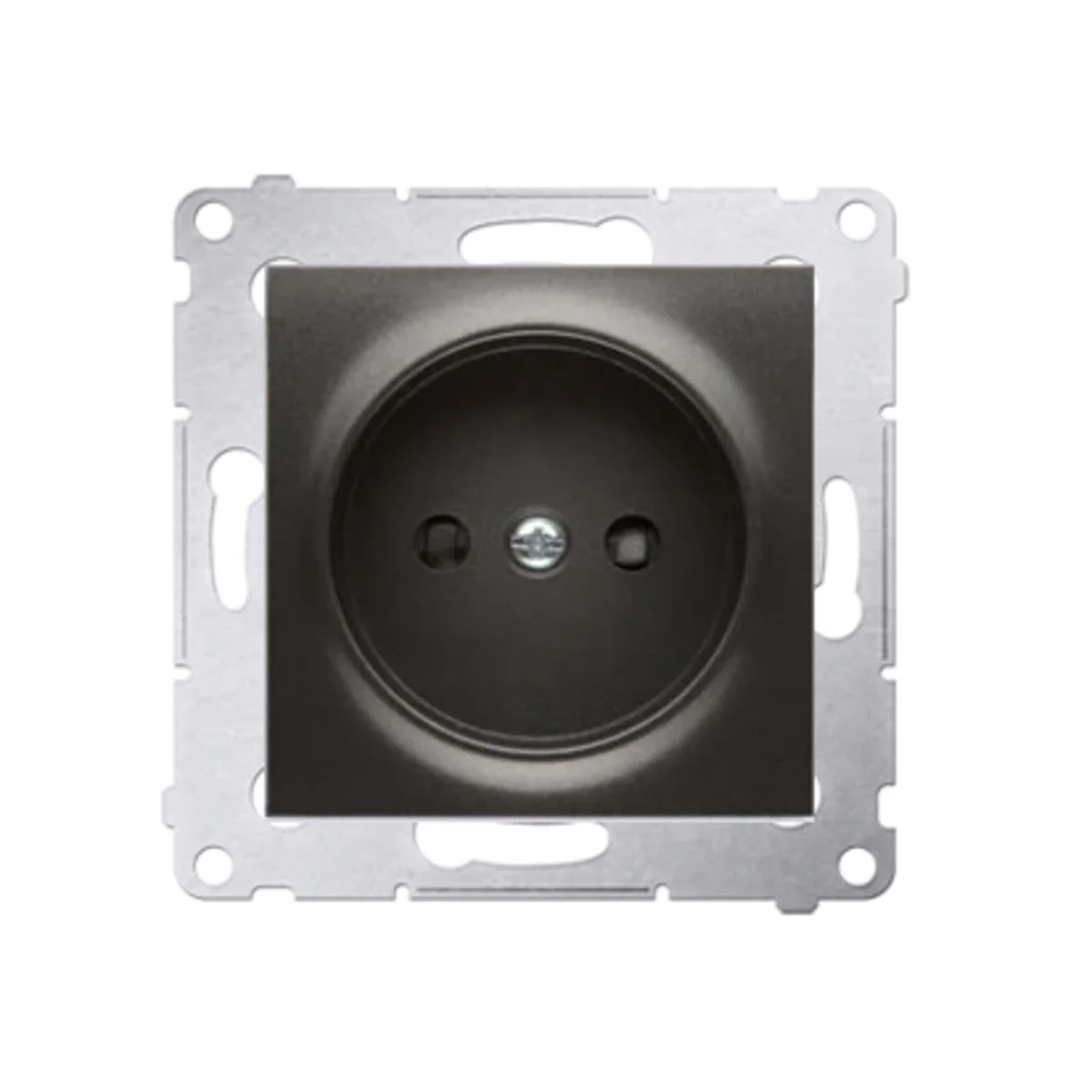

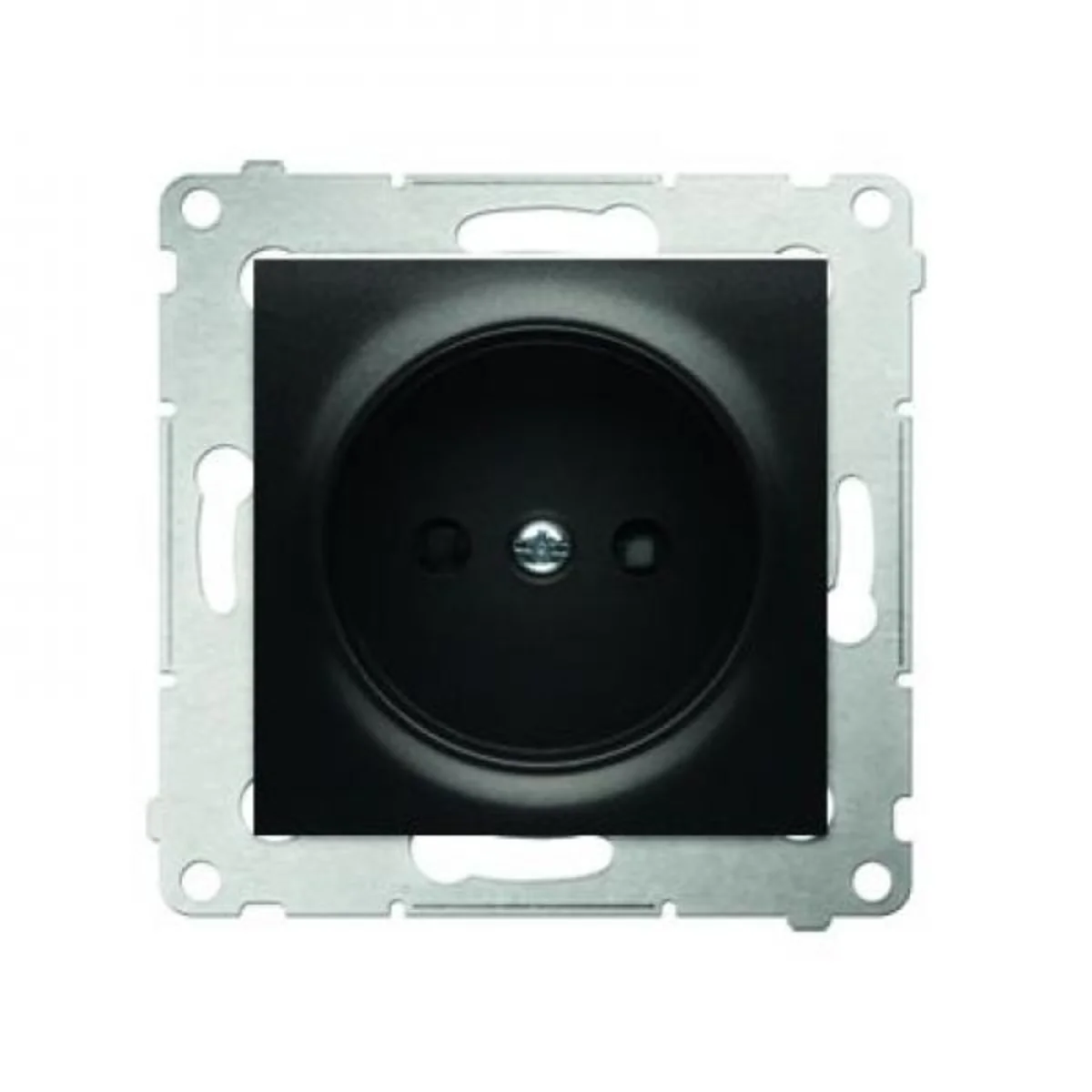

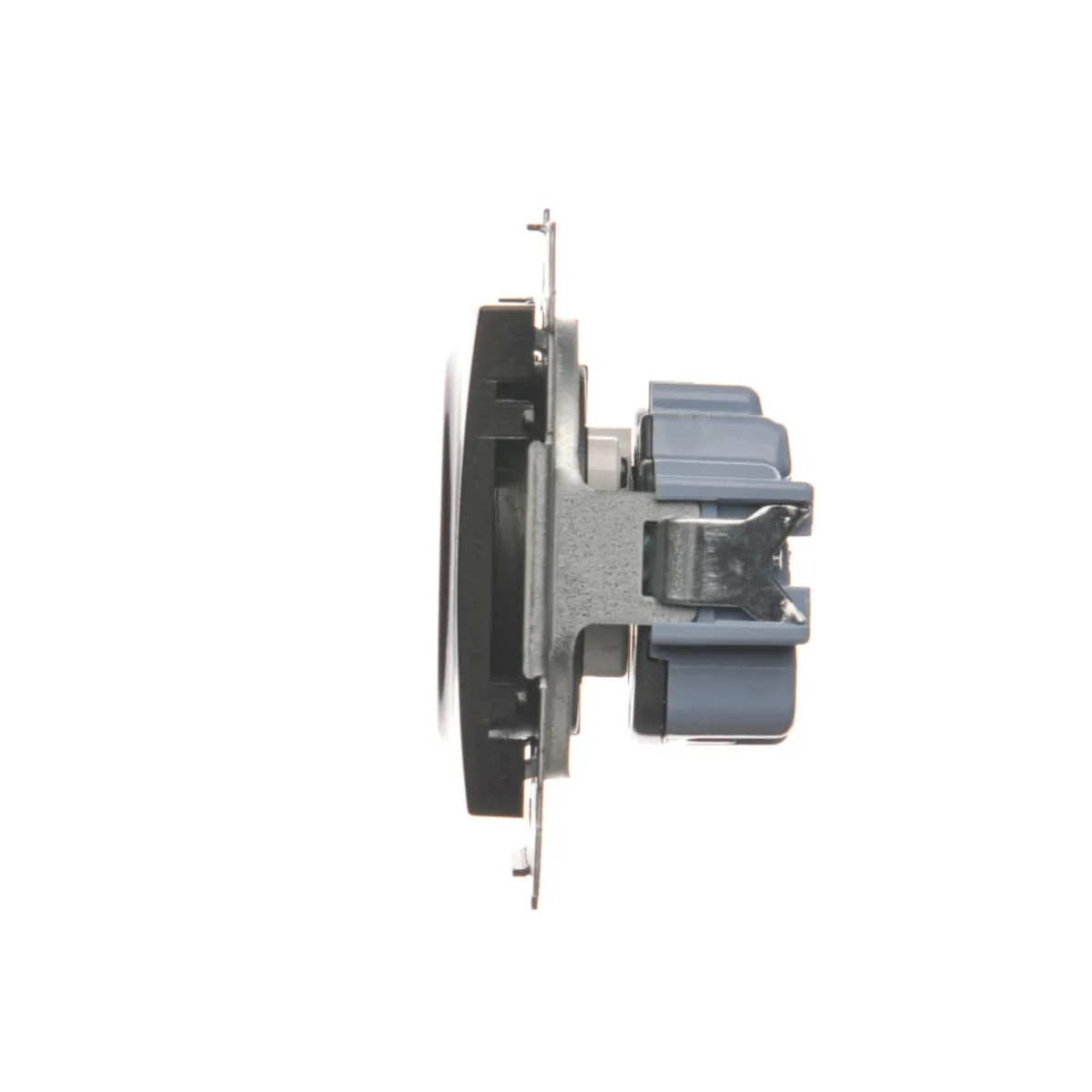

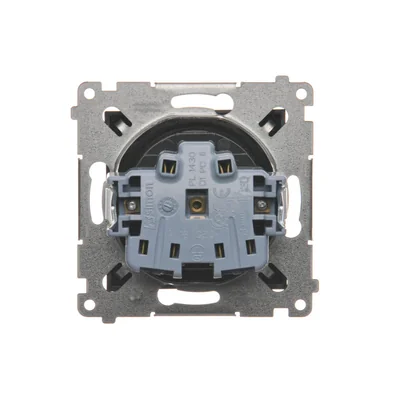

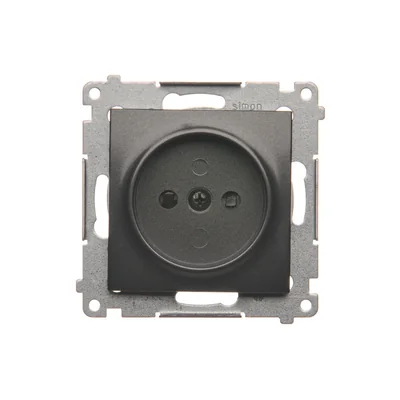

Socket without grounding with shutters (module) 16A 250V screw terminals anthracite (metallic) DG1Z.01/48

Name: Socket without grounding with shutters (module) 16A 250V screw terminals anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MEE290KONT
Price: 29.86 PLN
Availability: InStock

Index local:

MEE290KONT

Numéro de catalogue:

DG1Z.01/48

Code EAN:

5902787823856

Socket without grounding with shutters (module) 16A 250V screw terminals anthracite (metallic)

Cliquer sur la photo pour l'agrandir

Producteur: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 40

Number of sockets: 1

Voir la description complète

Prix:

29,86 zł

gross / pcs.

(y compris la TVA 23%)

Accessible 20 pcs.

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Socket from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DG1Z.01/48.

FEATURES

Single.
Without earthing.
With shutters for current paths.
Module without frame; for frames from the Nature and Premium series.
Thread clamps.
Colour anthracite, metallic.< /li>
Rated current 16A.
Rated voltage 230V.
Ingress protection IP20.

flushmount.

Dimensions: 75 x 75 mm (height x width).

Material < strong>PC.

SERIES DESCRIPTION

SIMON 54 is a modern line of accessories based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Données techniques

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Shutters of current paths

Yes
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

40
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Ground

Lack
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

29
Standard

European
On the DATA key

NO
Exact material

PC

Autres données techniques

Number of units

1
Colour

Anthracite
Material

Plastic
Surface protection

Lacquered
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 60 Hz

Détails du fabricant

Producteur

Kontakt-Simon S.A.
Adresse

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Emballage en vrac

Une sorte de paquet	Paczka	Karton	Paczka	Karton
Quantité	1 pcs.	10 pcs.	1 pcs.	10 pcs.
poids (kg)	0,067	0,758	0,067	0,758
Largeur (m)	0,110	0,190	0,110	0,190
Longueur (m)	0,046	0,230	0,046	0,230
Profondeur (m)	0,160	0,100	0,160	0,100
