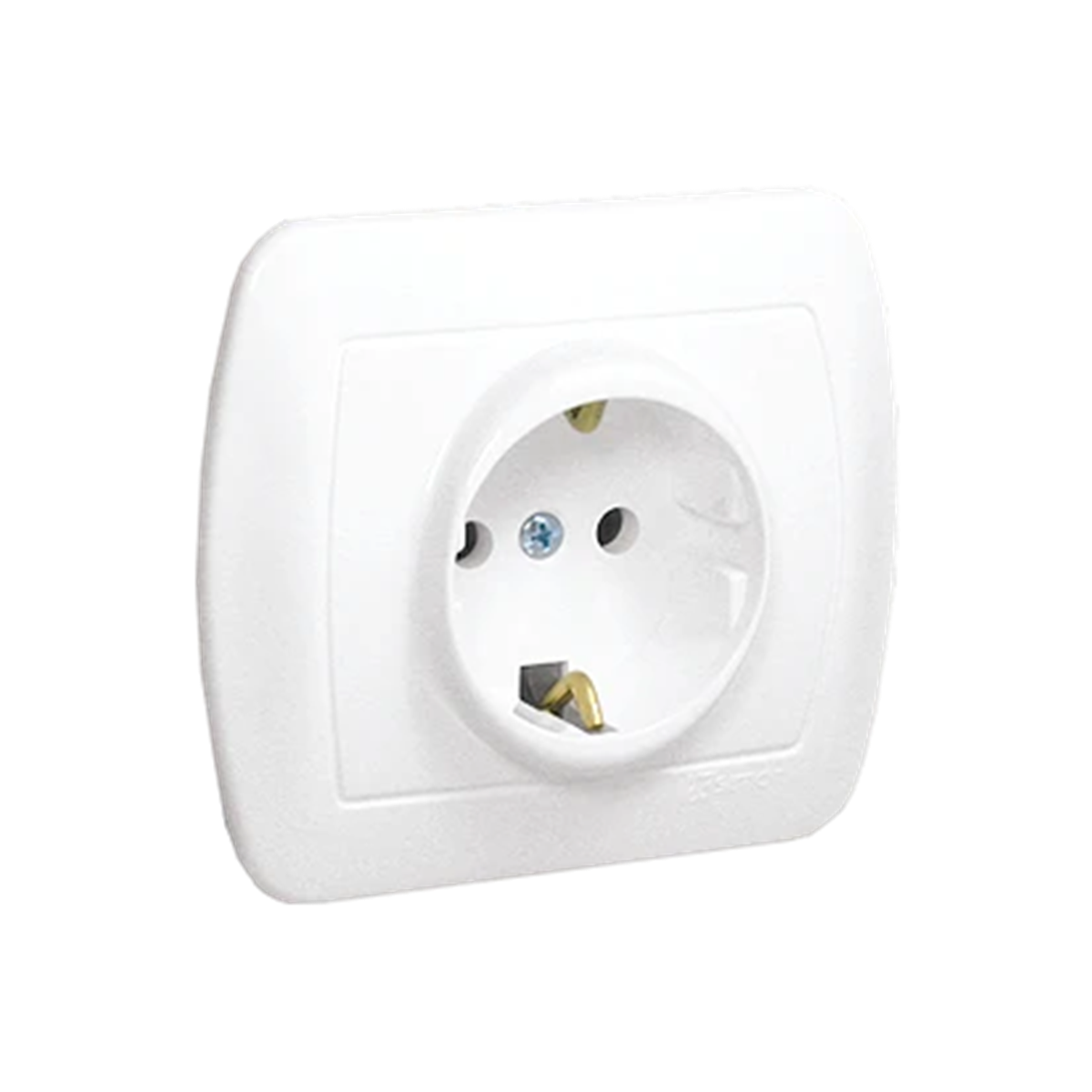

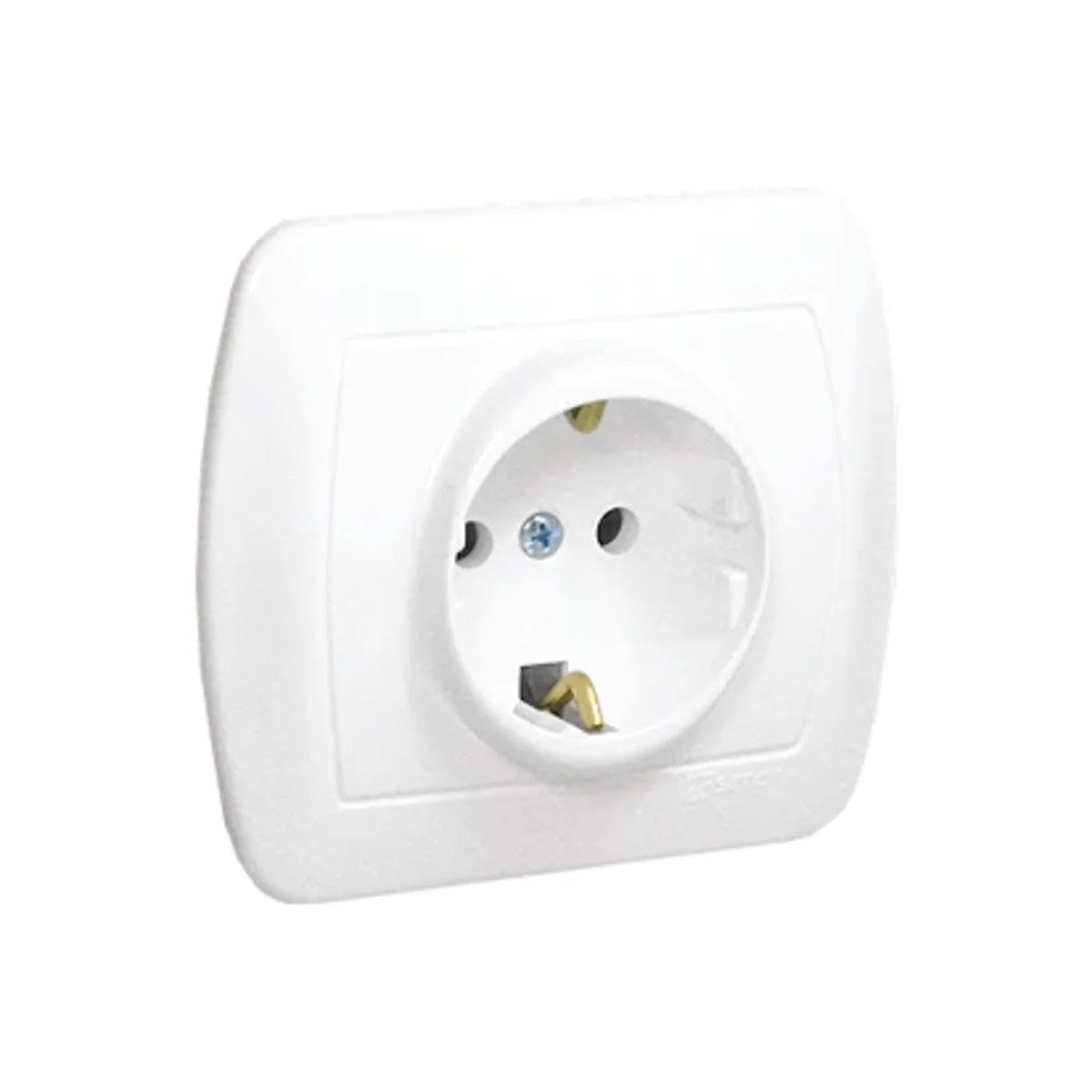

Socket with grounding, Schuko type, 16A, 250V, screw terminals, white AGSZ1E/11

local index:
MEE075KONT
Catalog No:
AGSZ1E/11
EAN code:
5902787569471
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of sockets: 1
Price:
3,78 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket from the Chord series, from the manufacturer Contact Simon. The product catalog number is AGSZ1E/11.



FEATURES

  • Single.
  • < li>Schuko ground.
  • Screw terminals.
  • Complete product; with frame.
  • Color white.
  • Rated current 16A.
  • < li>Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.
  • Dimensions: 80.5 x 90 mm (H x W).
  • Made of PC.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but sophisticated colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24.5
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    37.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,063 0,063 0,718
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,043 0,230
Depth (m) 0,038 0,160 0,100
