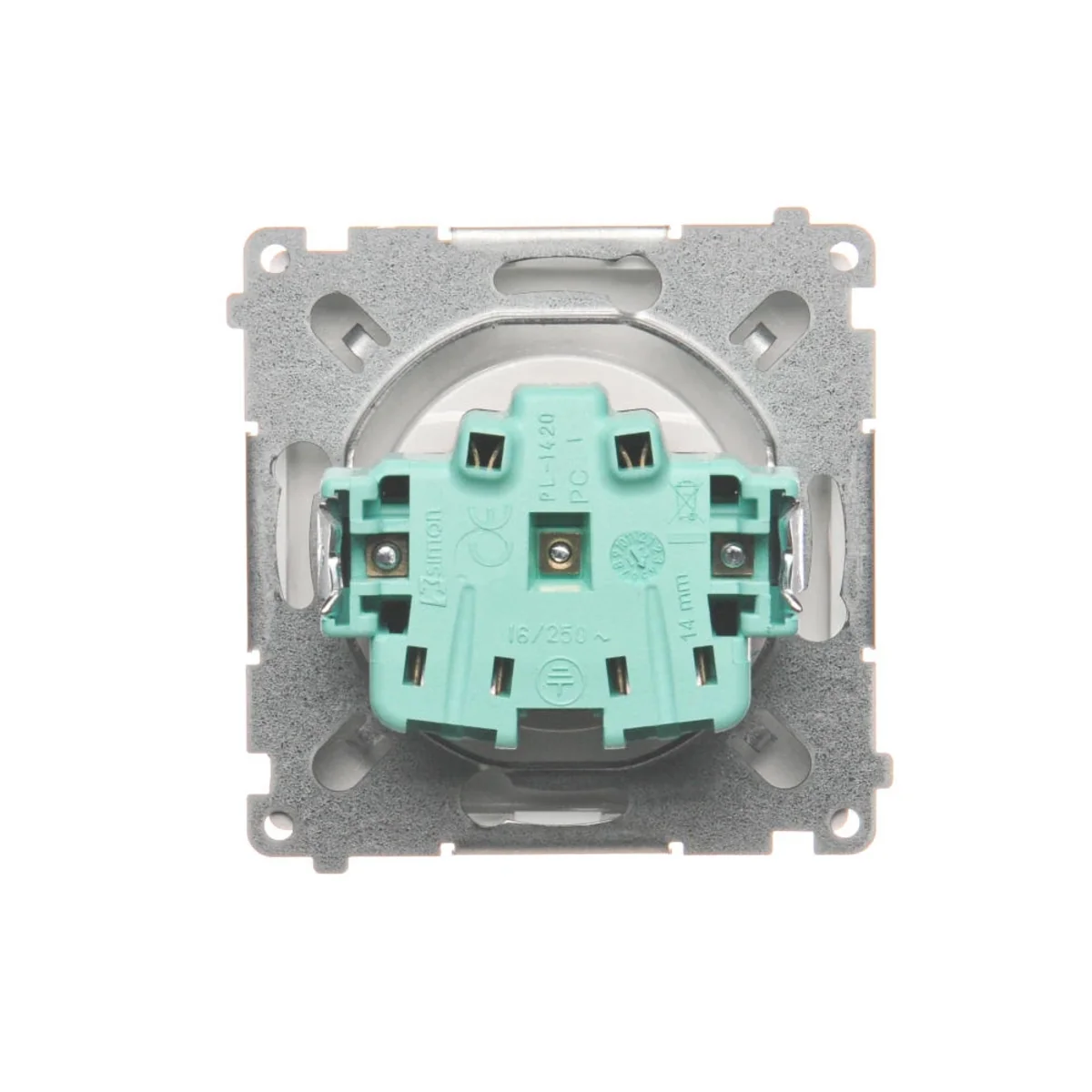

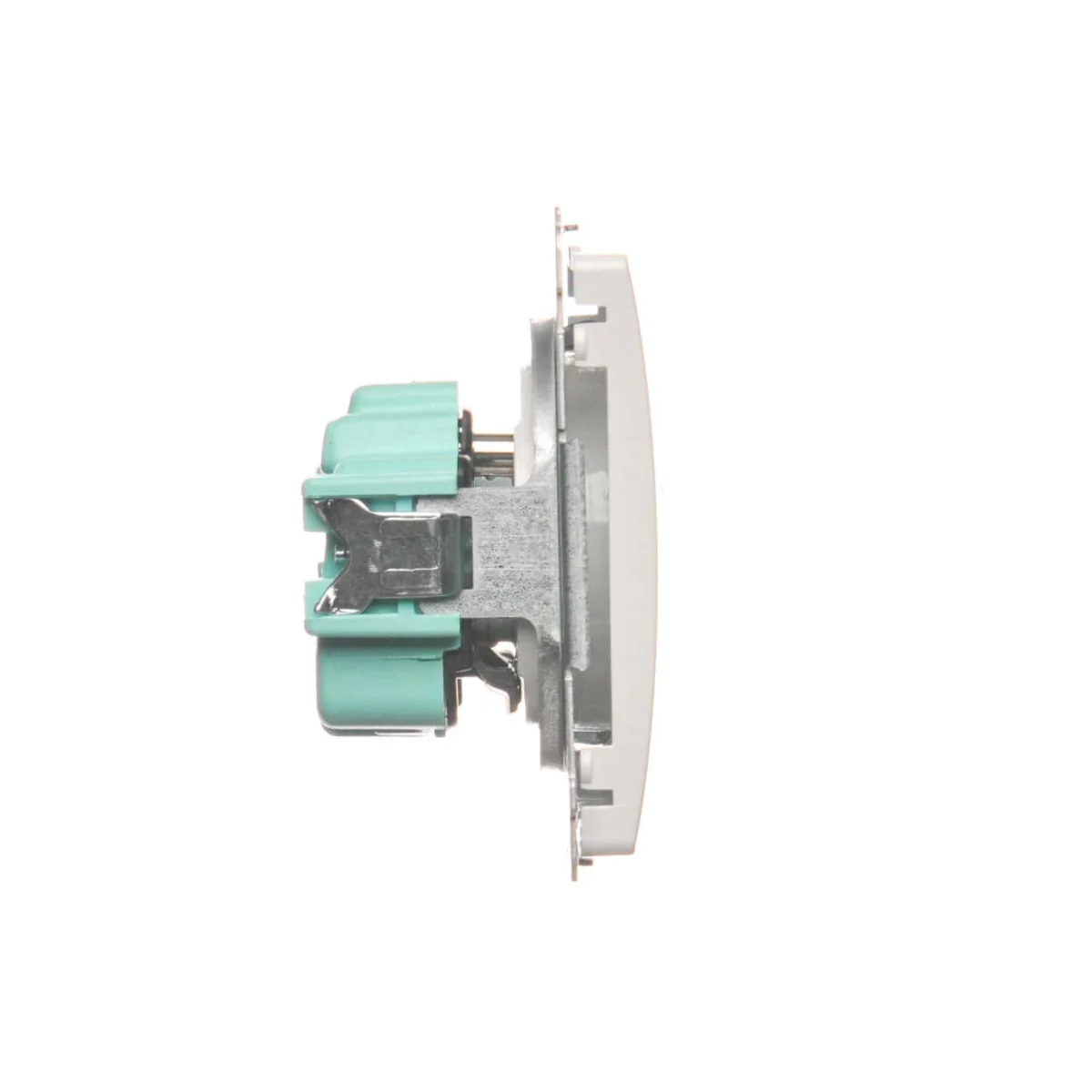

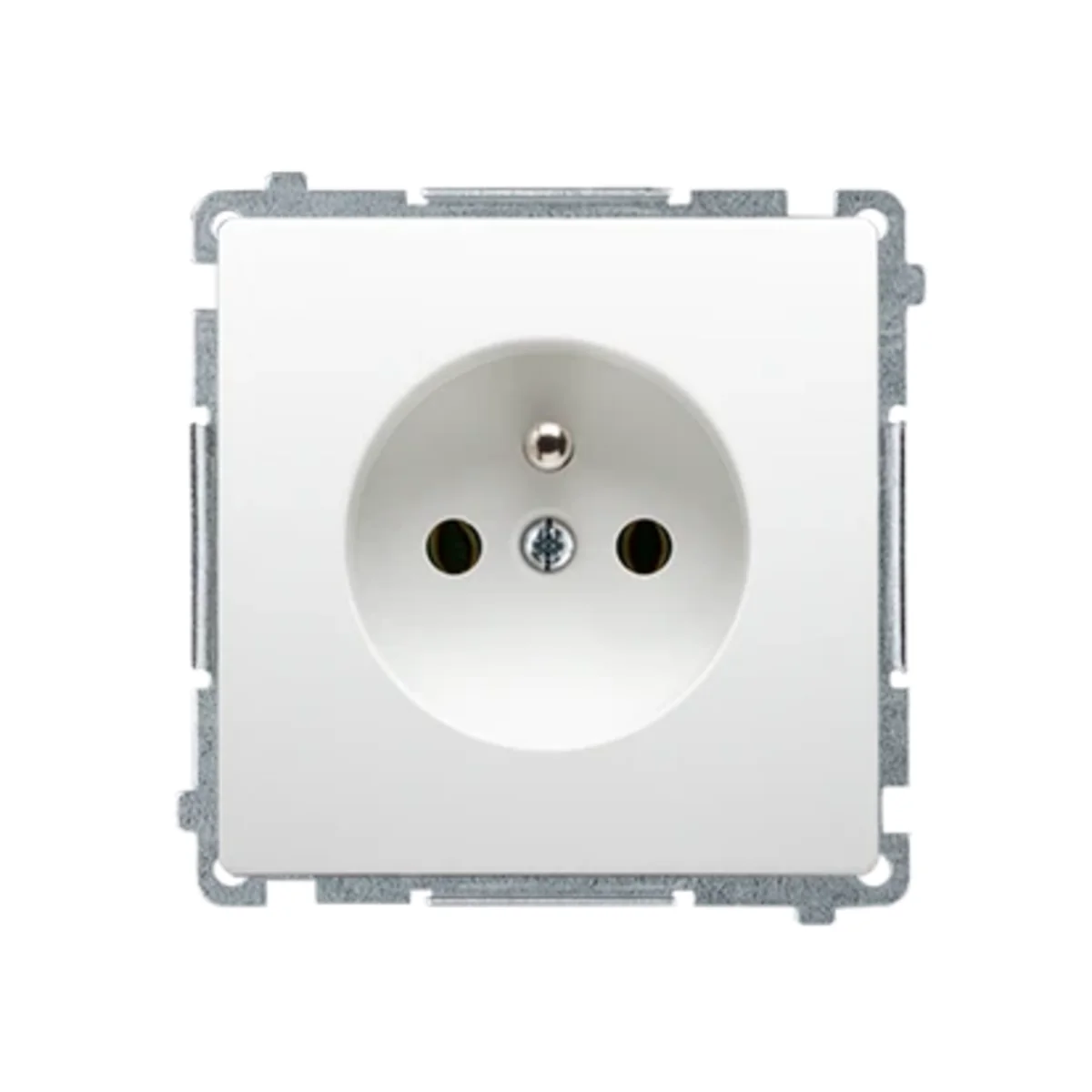

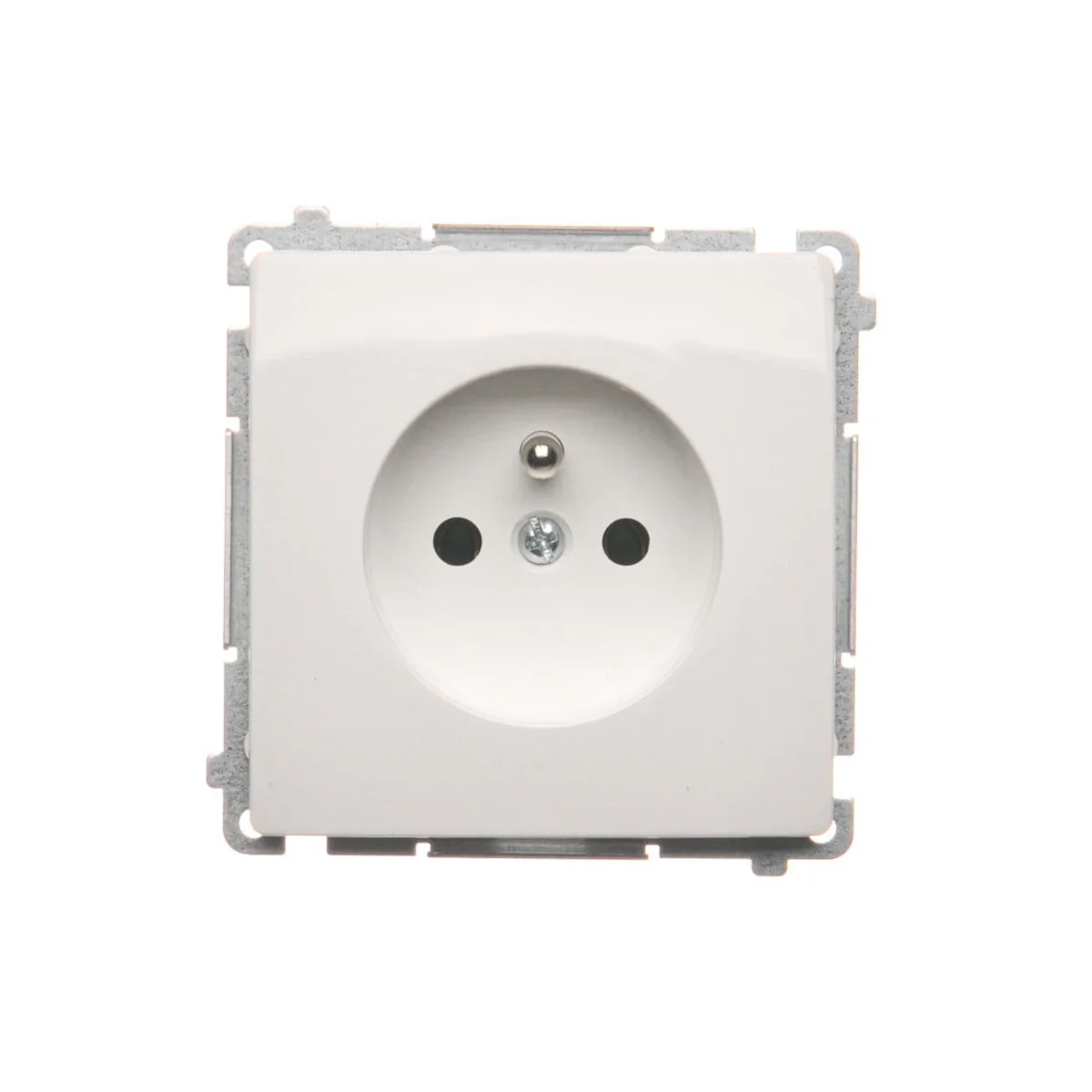

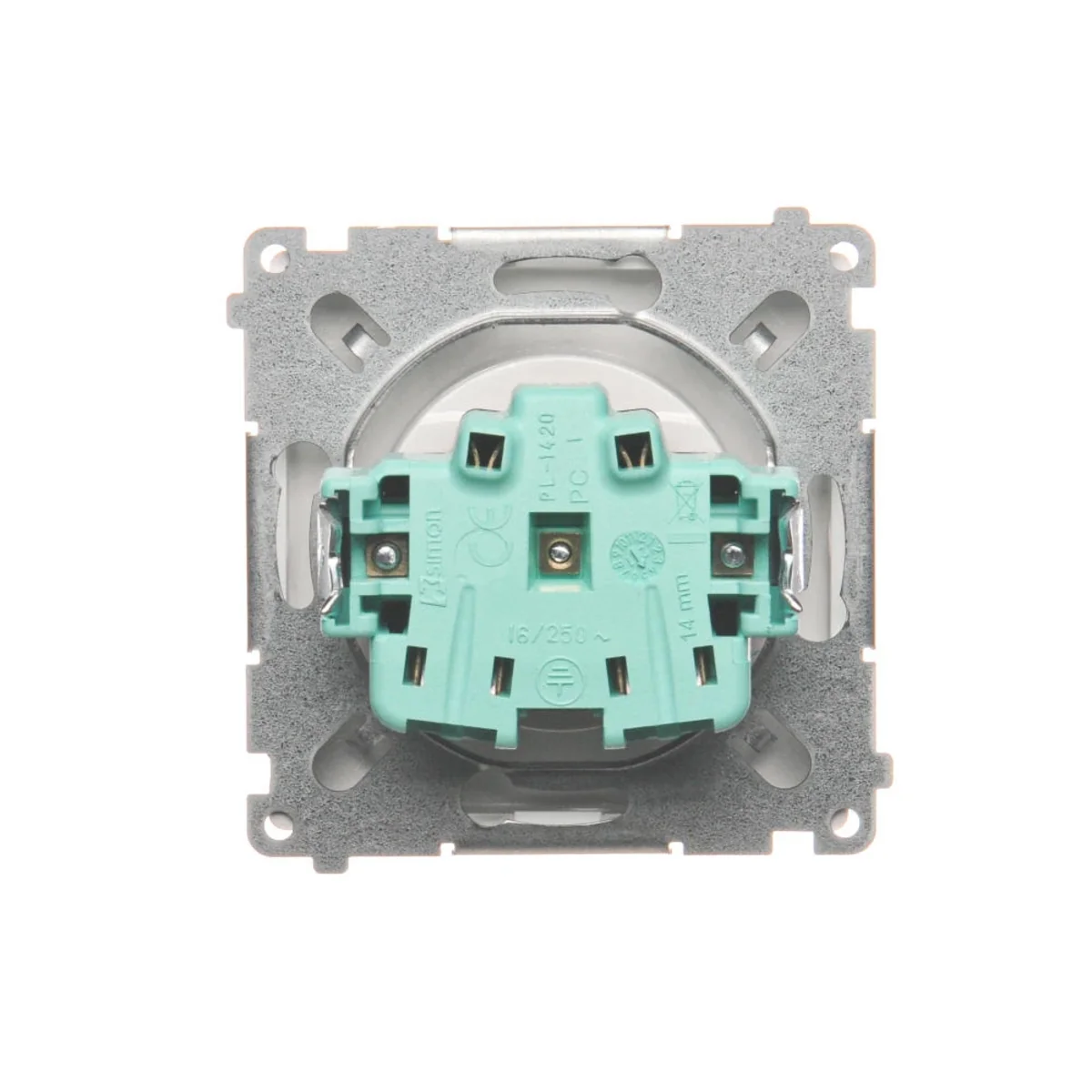

Socket with grounding (module) 230V, white quick connectors BMGZ1C.01/11

local index:
MEE192KONT
Catalog No:
BMGZ1C.01/11
EAN code:
5902787543150
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 40.5
Number of sockets: 1
Price:
3,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGZ1C.01/11.



FEATURES

  • Single.
  • Earthed, grounding pin.
  • Quick connectors.
  • To be equipped with frame .
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V< /strong>.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 75 x 75 mm (H x W).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    28
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    40.5
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Ground
    Hurt
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,075 0,075 0,836
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,046 0,230
Depth (m) 0,041 0,160 0,100
