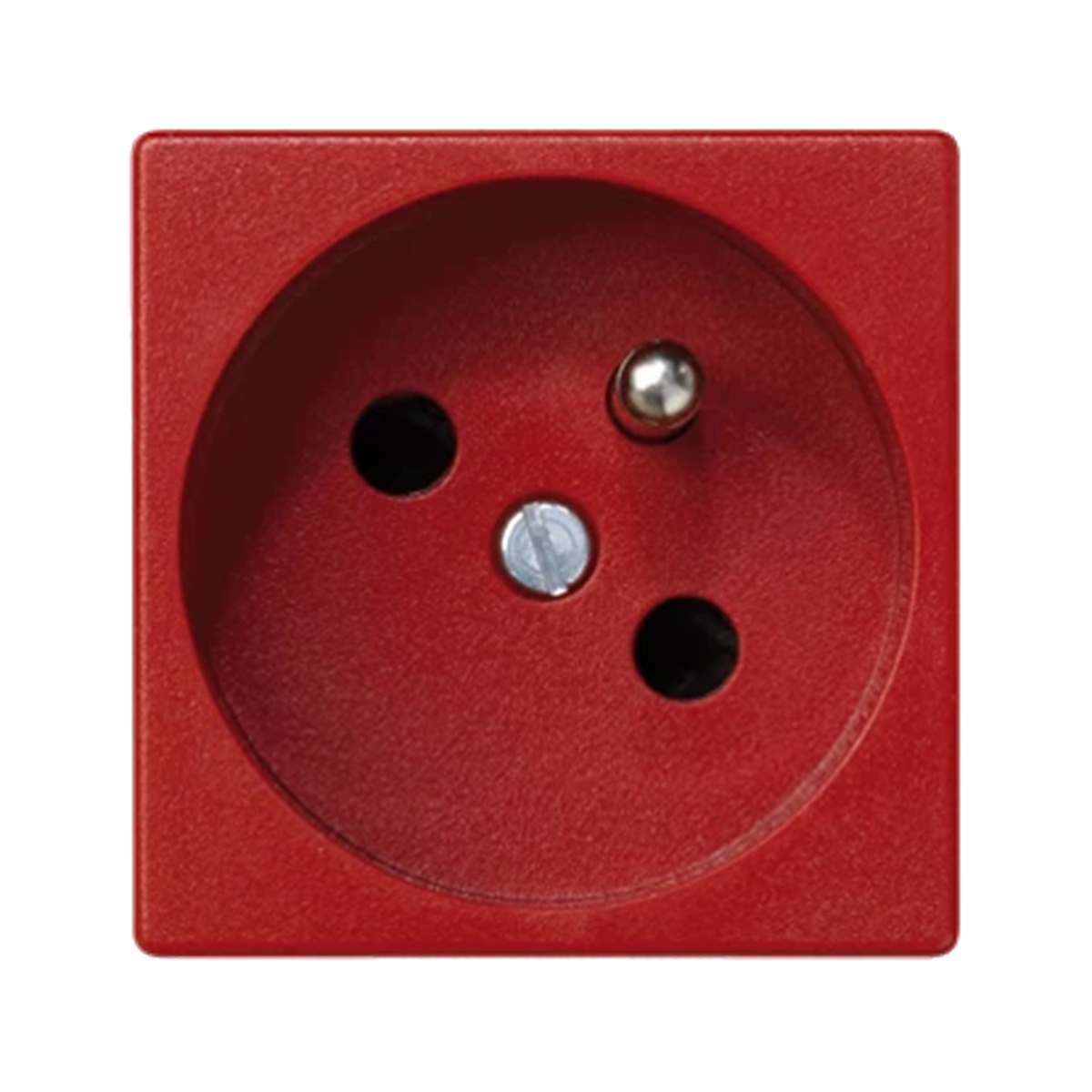

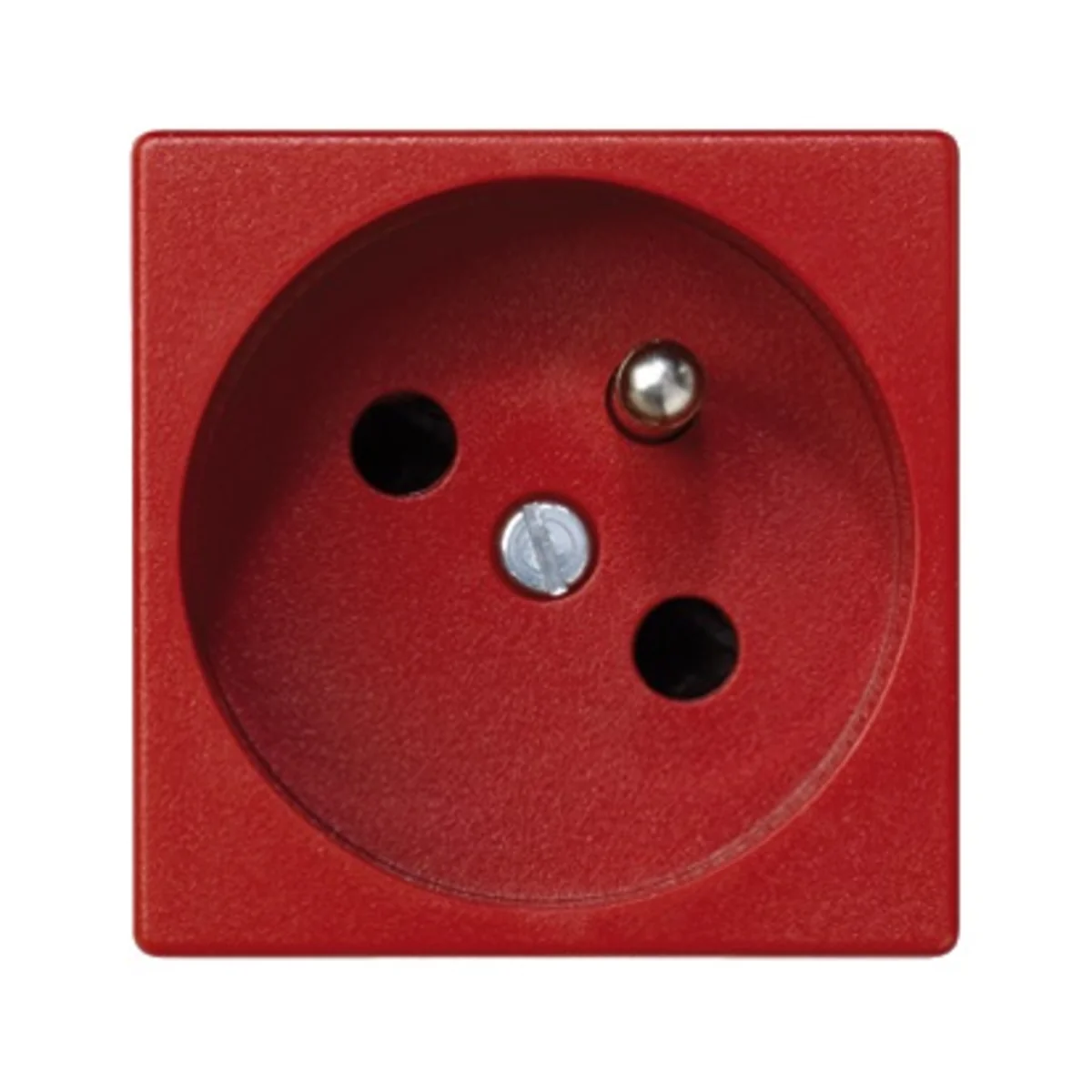

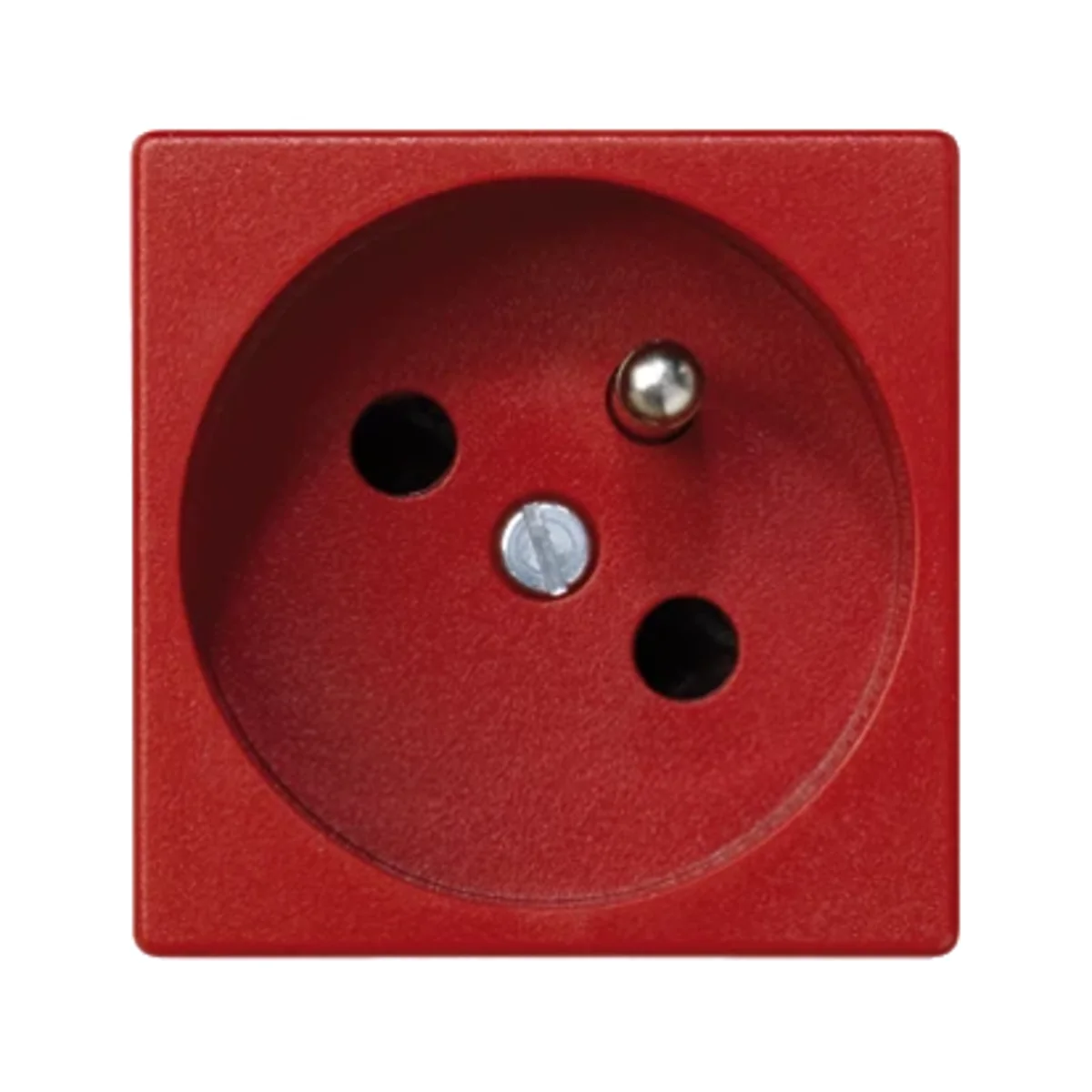

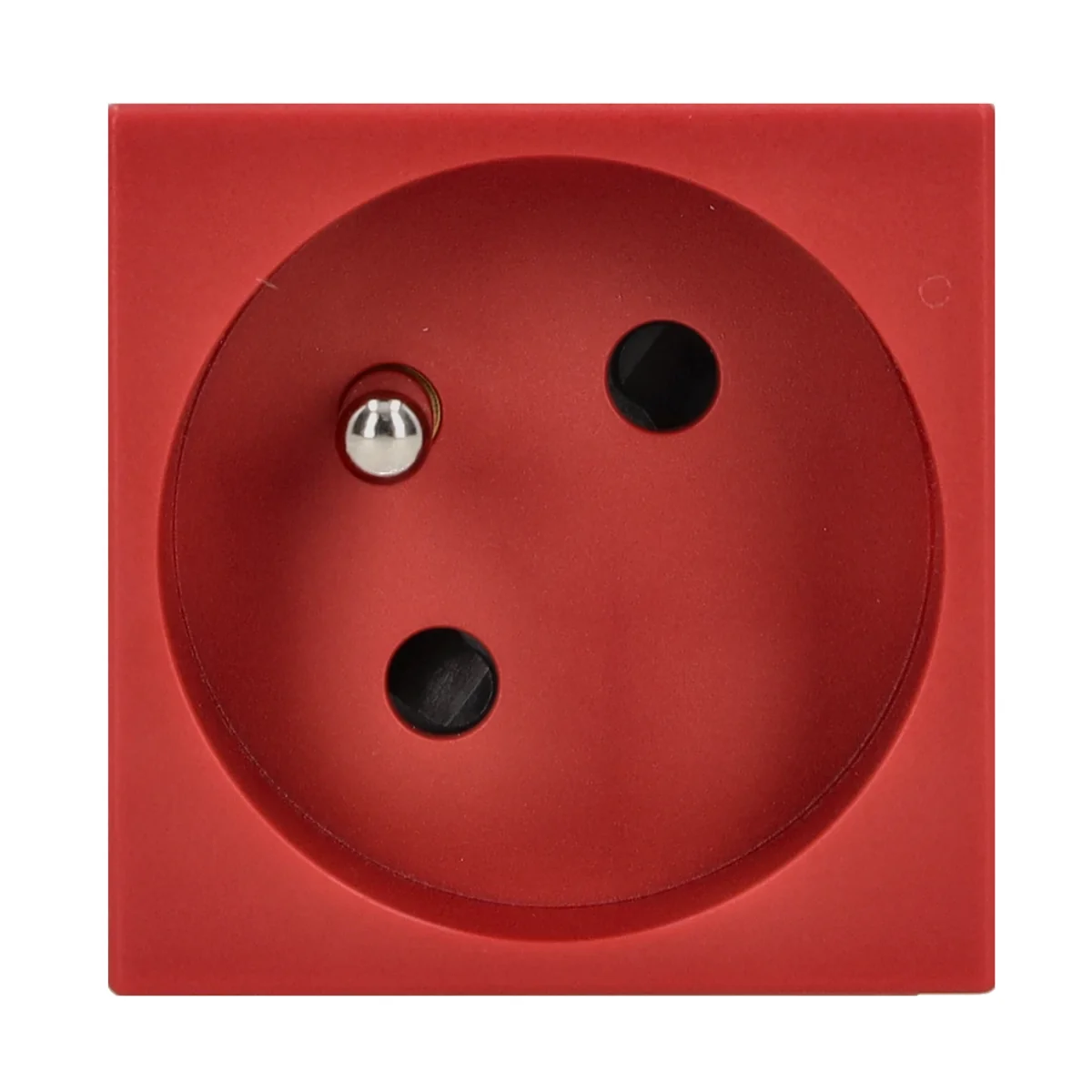

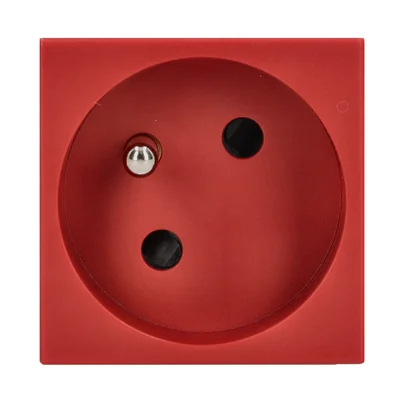

Socket K45 with grounding 16A, 230V, quick connectors, red K22/6
local index:
MGE015KONT
Catalog No:
K22/6
EAN code:
8426436022720
Price:
5,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electrical socket in standard K45, from the manufacturer Contact Simon. The product catalog number is K22/6.
FEATURES
- Single.
- Z grounding; ground pin.
- Complete product.
- Color red.
- Quick connectors.
- Rated current 16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Mounting dimensions 45 x 45 mm.
- Recessed.
SERIES DESCRIPTION
The electrical socket of the K45 standard has been designed so that it can in various installations, such as floor boxes, columns or installation channels.
Technical data
-
Halogen freeYes
-
Number of sockets1
-
ShapeSquare
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyK45
-
Width [mm]45
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
PKWIU27.33.13.0
-
Depth [mm]42.3
-
ColorRed
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
Height [mm]45
-
Surface finishmatte
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
Other technical data
-
Connection typePush-in clamp
-
Mounting methodBuilt-in installation
-
Surface protectionUntreated
-
Nominal voltage250 V
-
ColourRed
-
MaterialPlastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,061 | 0,061 | 0,550 |
| Width (m) | 0,045 | - | 0,101 |
| Length (m) | 0,045 | - | 0,245 |
| Depth (m) | 0,042 | - | 0,049 |
