Socket 16A 3P-N-E 380-415V IP44 50-60Hz PKY16F435

local index:
MKN003SCHN
Catalog No:
PKY16F435
EAN code:
3303432011017
Manufacturer: SCHNEIDER ELECTRIC
Level of security: IP44
Price:
12,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

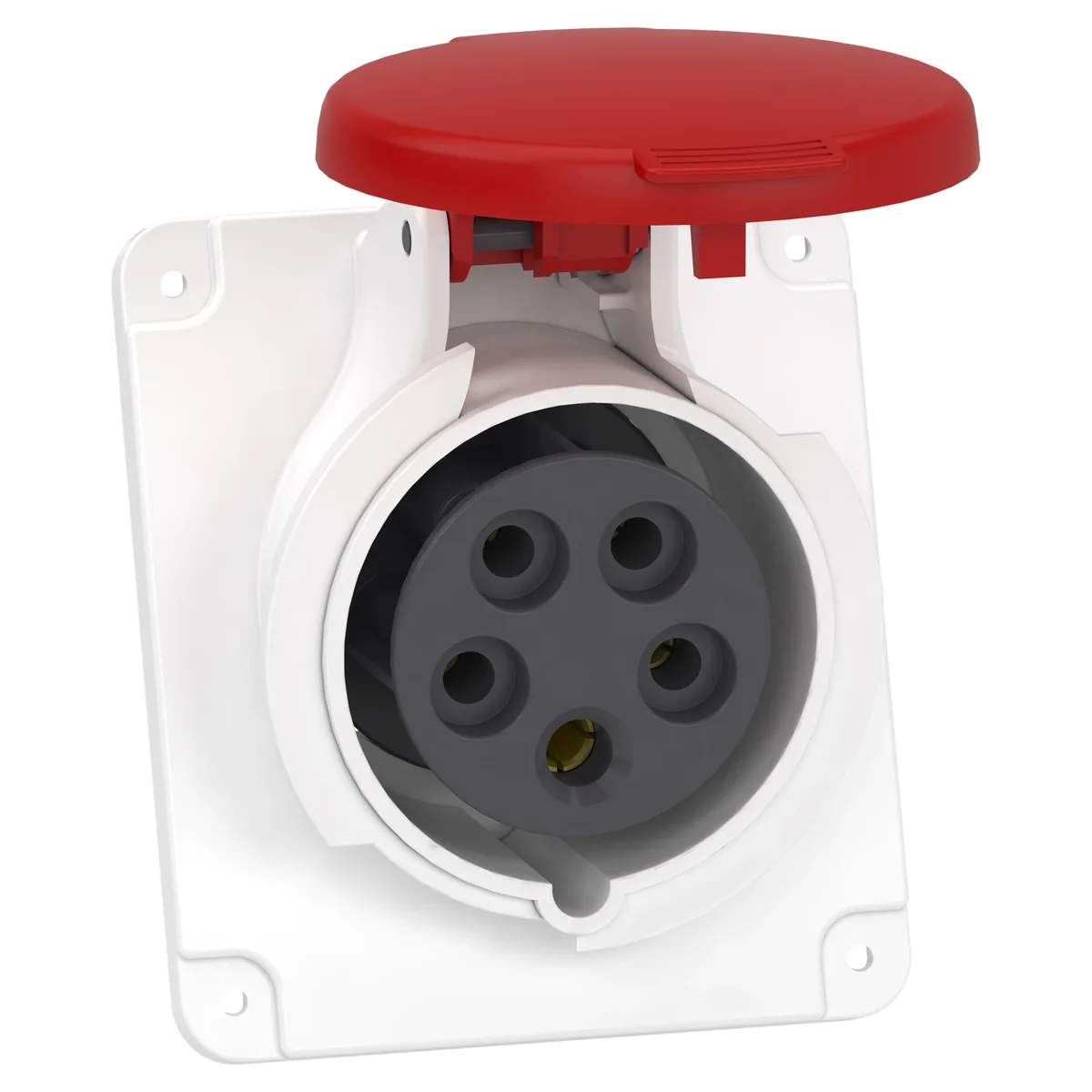

Socket 16A 3P-N-E 380-415V IP44 50-60Hz

Technical data

  • Level of security
    IP44
  • PKWIU
    27.33.13.0

Other technical data

  • IEC-amperage
    16 A
  • Rated voltage
    380 ... 415 V
  • Number of poles
    5
  • Identification colour
    Red
  • Degree of protection (IP)
    IP44
  • Insert direction
    Angled
  • Material
    Plastic
  • Flange size vertical
    100 mm
  • Flange size horizontal
    90 mm
  • Voltage according to EN 60309-2
    400 V (50+60 Hz) red
  • Rated frequency
    50 ... 60 Hz
  • Clock hour position
    6 h
  • RAL-number
    7035
  • Connection system
    Screw less terminal
  • Cable entry
    None
  • Military model
    No
  • Drill hole distance vertical
    85 mm
  • Drill hole distance horizontal
    77 mm
