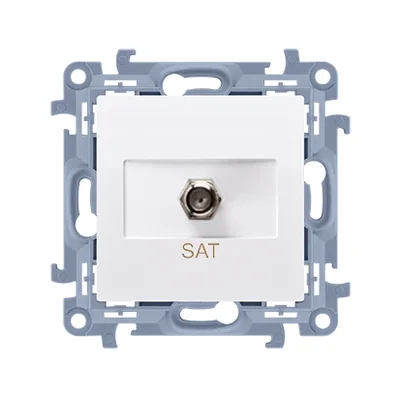

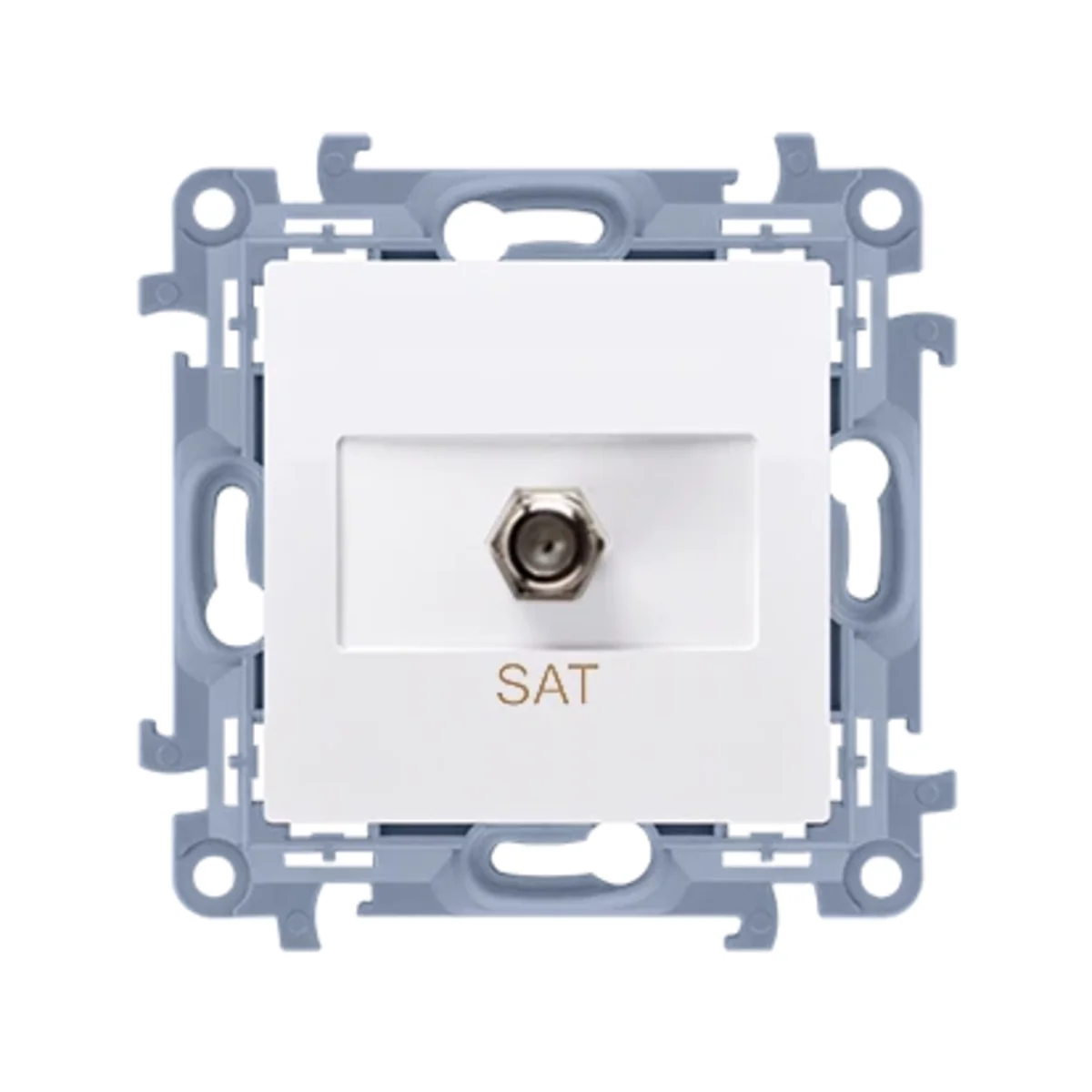

Single type "F" antenna socket (module) white CASF1.01/11

local index:
MEA139KONT
Catalog No:
CASF1.01/11
EAN code:
5902787843090
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 43
Number of sockets: 1
Price:
5,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

F-type antenna socket



SERIES DESCRIPTION

Simon 10 is an economical modular series for investment, where different colors are not required. Two basic colors: white and cream, as well as a full cross-section of the assortment of switches and sockets will allow for comprehensive equipment of any apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    Simon 10
  • Width [mm]
    77
  • Version
    Final
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    Yes
  • Exact material
    PC
  • Depth [mm]
    43
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24
  • Variant
    sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    End socket
  • Suitable for remote power supply
    Yes
  • Number of outlets
    1

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,032 0,032 0,411
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,048 0,230
Depth (m) 0,043 0,160 0,100
