Single socket with grounding 2P+E, IP 20 LGP-1ZP

local index:
MEE083KARL
Catalog No:
LGP-1ZP
EAN code:
5908257116008
Manufacturer: KARLIK
Depth [mm]: 41.5
Number of sockets: 1
Color: White
Price:
3,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

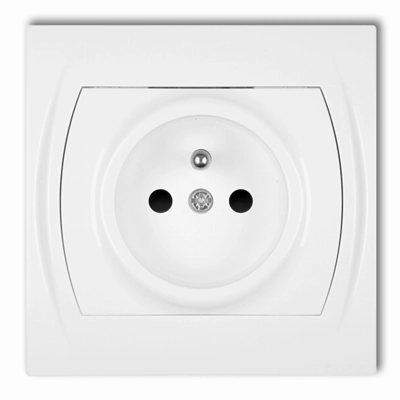

Electrical socket from the Logo series, from the manufacturer Karlik. The product catalog number is LGP-1ZP< /strong>.



FEATURES

  • Single
  • 2P + Z.
  • With grounding.
  • With shutters for current paths.
  • With frame ; "Monoblock".
  • Screw terminals.
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush installation.



SERIES DESCRIPTION

LOGO series accessories are a modern and universal solution that combines an aesthetic, elegant appearance with functional advantages. Electric socket has all the features of this unique series.

Technical data

  • Depth [mm]
    41.5
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    82
  • Terminal type
    Threaded
  • Shutters of current paths
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    LOGO
  • Width [mm]
    82
  • Ground
    Hurt
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Protrusion depth [mm]
    13.6
