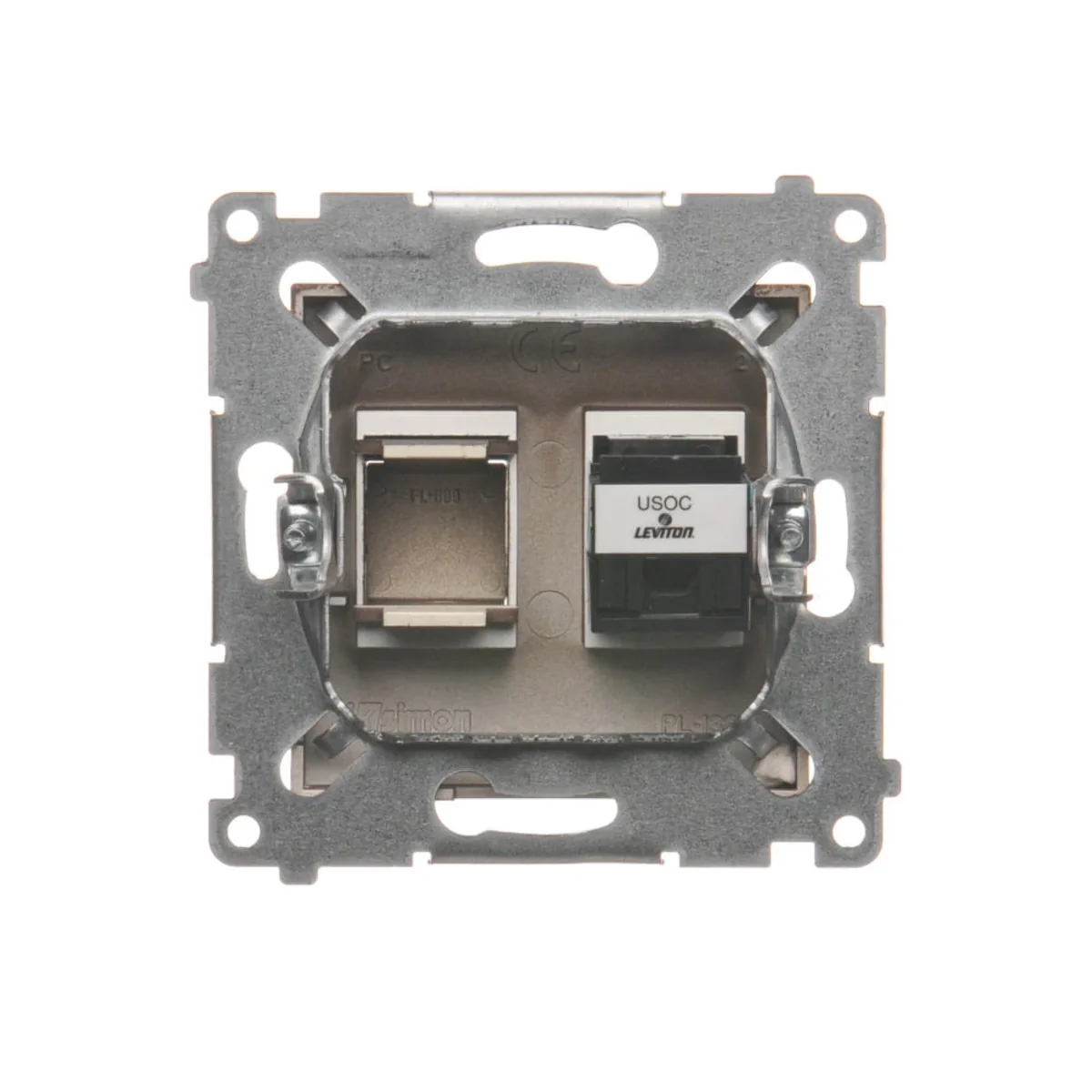

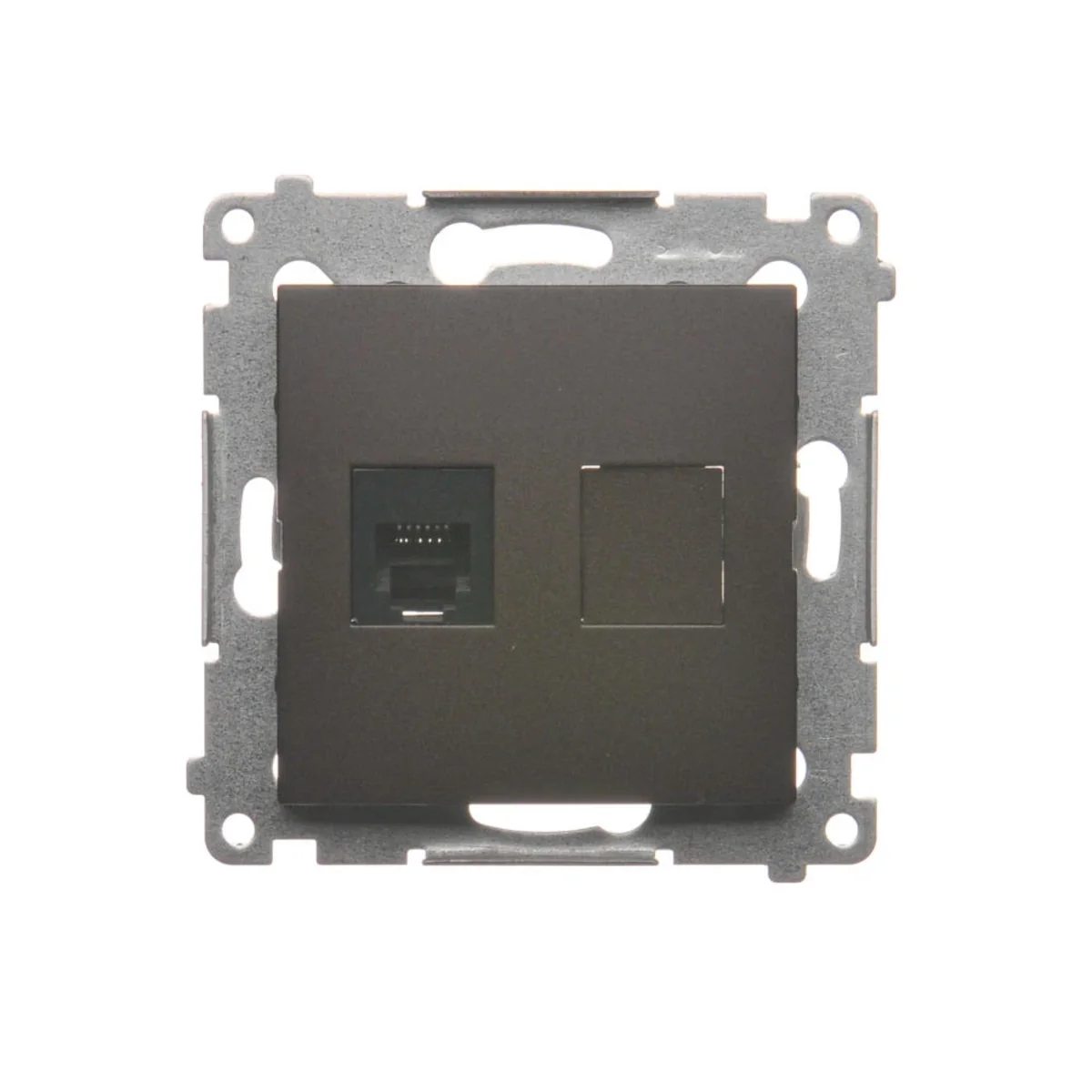

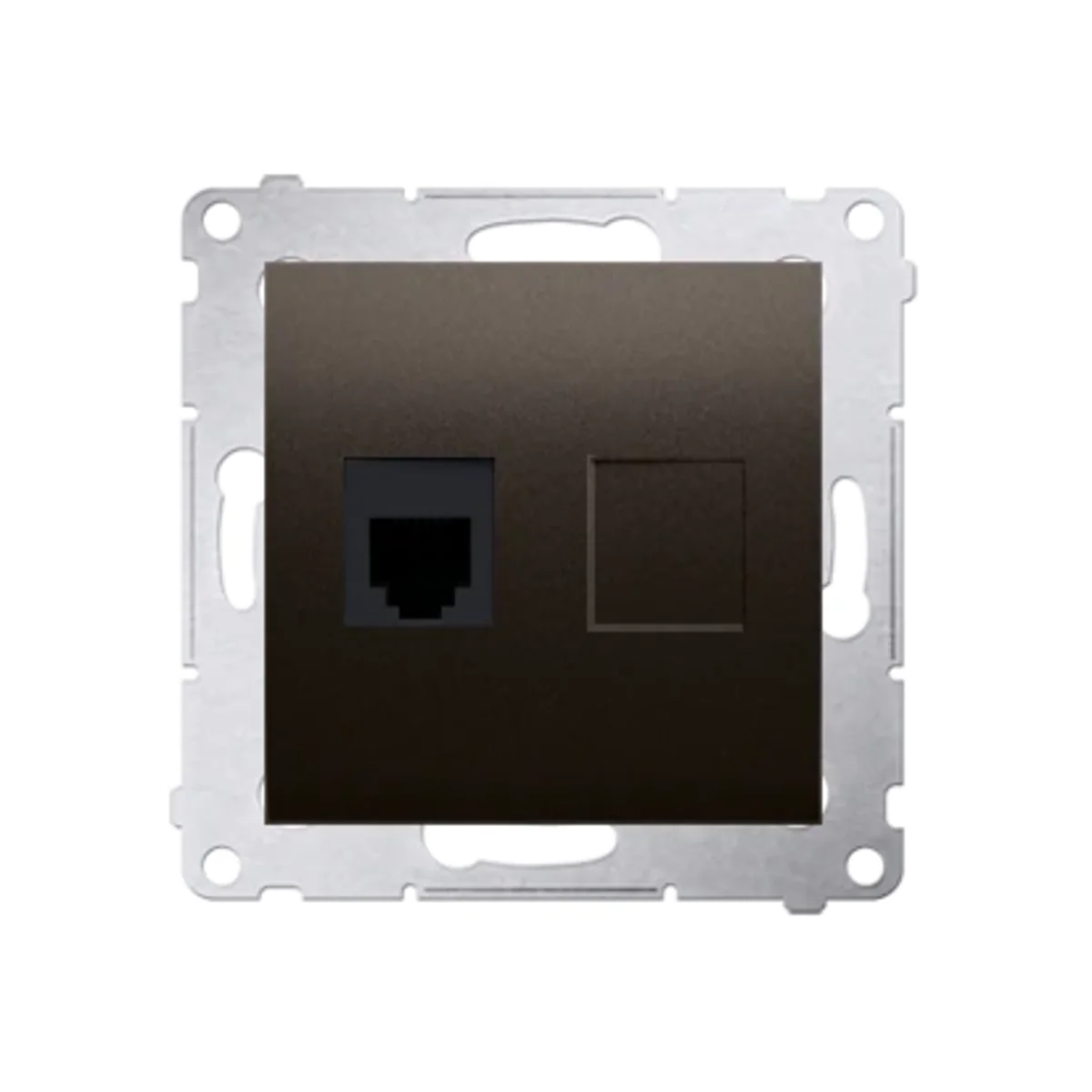

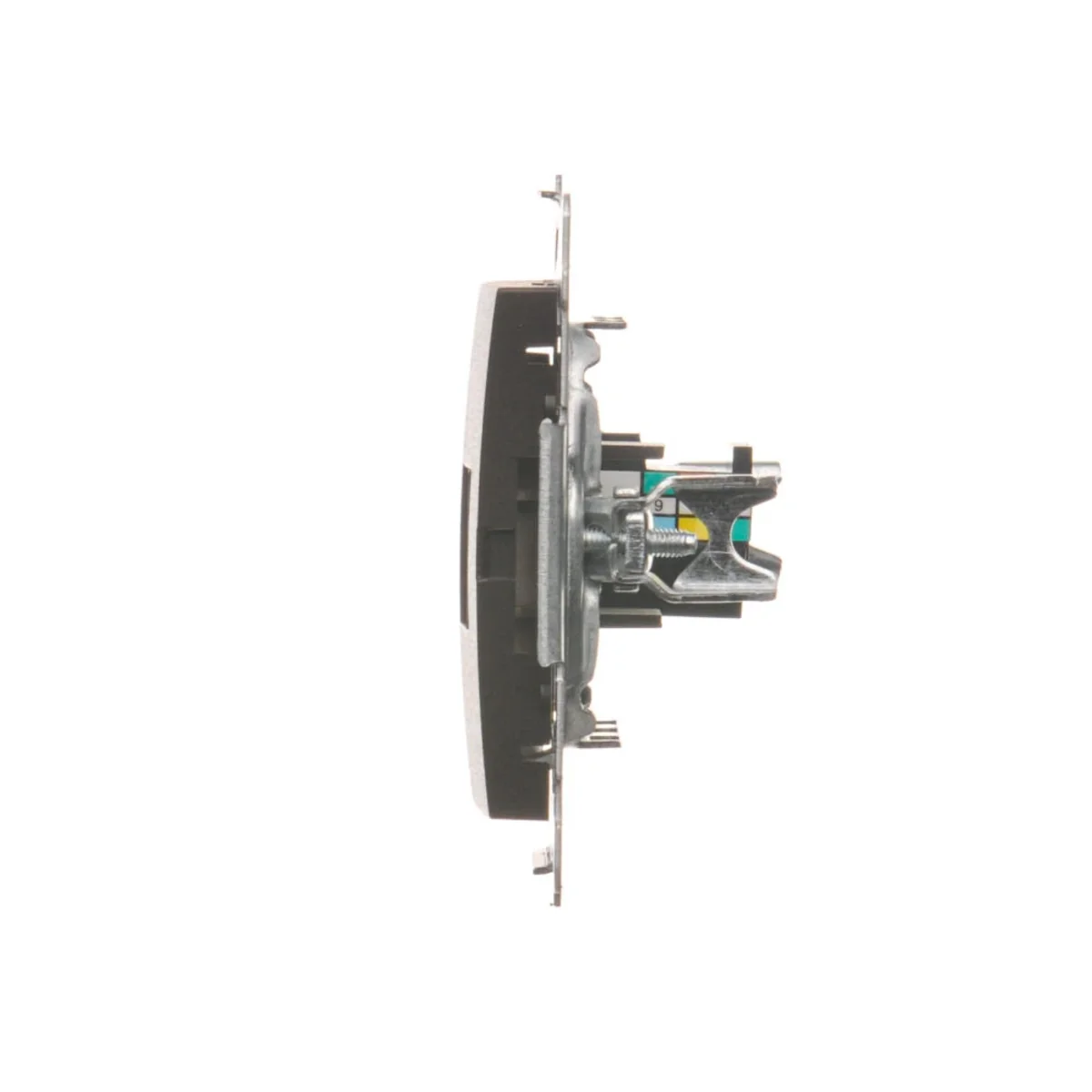

Single RJ12 telephone socket (module) brown matt metallic DT1.01/46

local index:
MET083KONT
Catalog No:
DT1.01/46
EAN code:
5902787832575
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 32
Number of sockets: 1
Price:
10,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Telephone socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DT1.01/46.



FEATURES

  • Single< /strong>.
  • RJ12.
  • Module without frame.
  • Piercing clamp insulation.
  • Colour matt bronze, metallised.
  • Protection rating IP20.
  • flushmount.
  • Dimensions: 75 x 75 mm (H x W).
  • Made of PC.< /li>



SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and user-friendly assembly mechanisms, distinguished by a noble form and rich colors.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Metallic bronze matt
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    Yes
  • Exact material
    PC
  • Depth [mm]
    32
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    Simon 54
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Mounting depth [mm]
    23
  • Variant
    RJ12
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0

Other technical data

  • Type of connector
    RJ12 6(6)
  • Outlet direction
    Straight
  • Colour
    Brown
  • With dust cover
    No

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,017 0,017 0,259
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,041 0,230
Depth (m) 0,032 0,160 0,100
