Single RJ11 telephone socket beige ATF1/12

local index:
MET028KONT
Catalog No:
ATF1/12
EAN code:
5902787570057
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 27
Number of sockets: 1
Price:
5,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

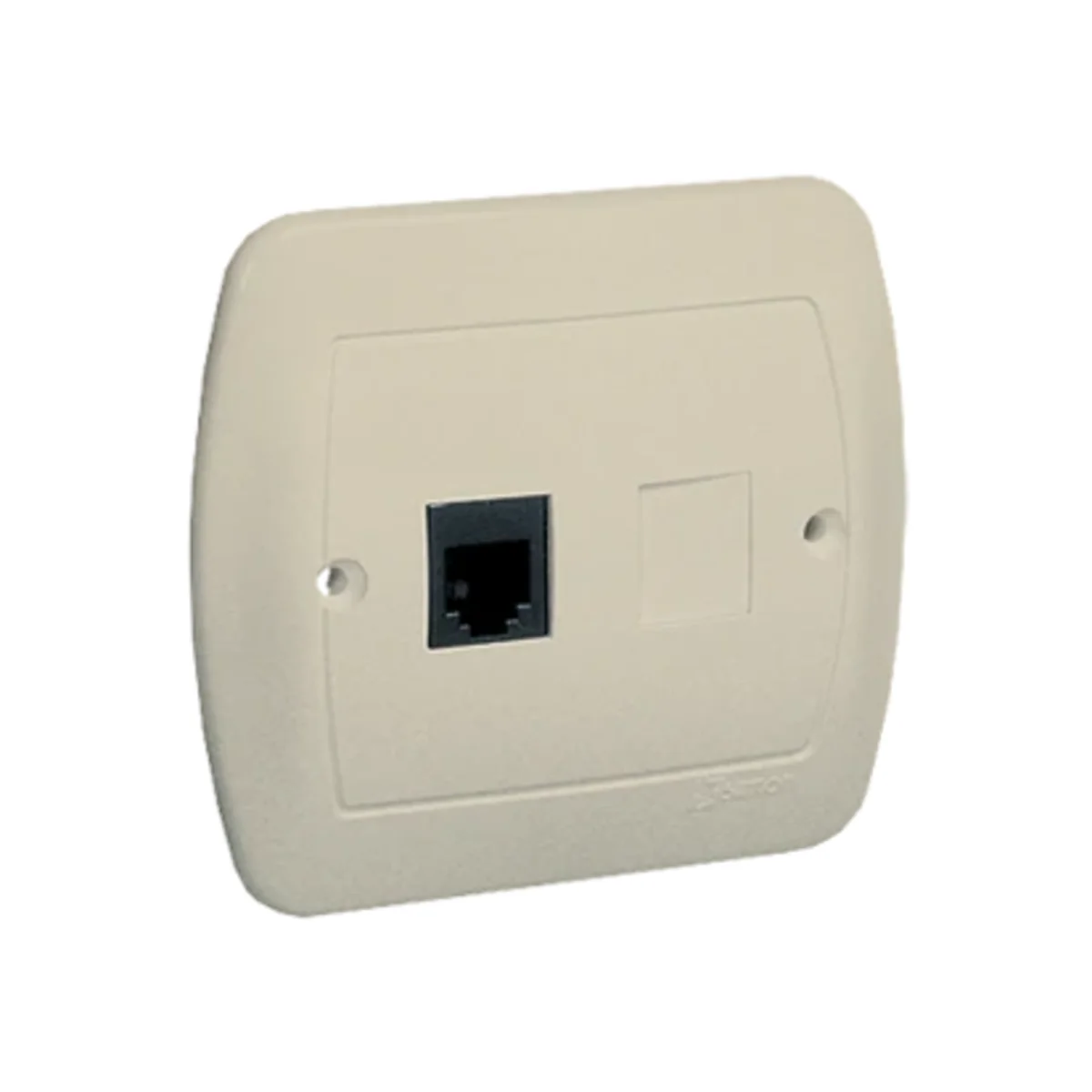

Telephone socket from the Simon Akord series, from the manufacturer Contact Simon. The product part number is ATF1/12.



FEATURES

  • Single.
  • < li>RJ11.
  • Complete product; with frame.
  • Insulation piercing clip.
  • Color beige.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 80.5 x 90 mm (height x width).
  • Made of PC.
  • Screw mounting (e.g. to a box).
  • RJ plug manufacturer: Kinsun.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Rectangular
  • Fixing
    Screws
  • Type
    by phone
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Mounting depth [mm]
    17
  • Variant
    RJ11
  • Extra socket
    Blank space
  • PKWIU
    27.33.13.0
  • Depth [mm]
    27
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Height [mm]
    80.5
  • Surface finish
    Shiny
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    NO
  • Exact material
    PC

Other technical data

  • Colour
    Beige
  • With dust cover
    No
  • Outlet direction
    Straight

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 14 pcs.
Weight (kg) 0,027 0,027 0,364
Width (m) 0,080 0,110 0,190
Length (m) 0,090 0,040 0,230
Depth (m) 0,027 0,160 0,100
