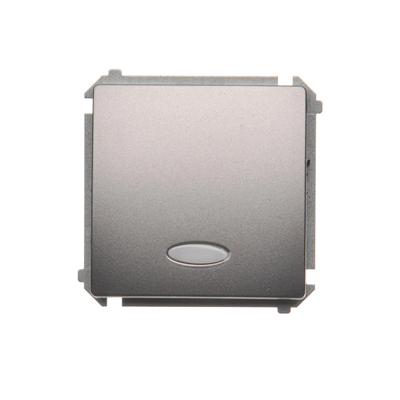

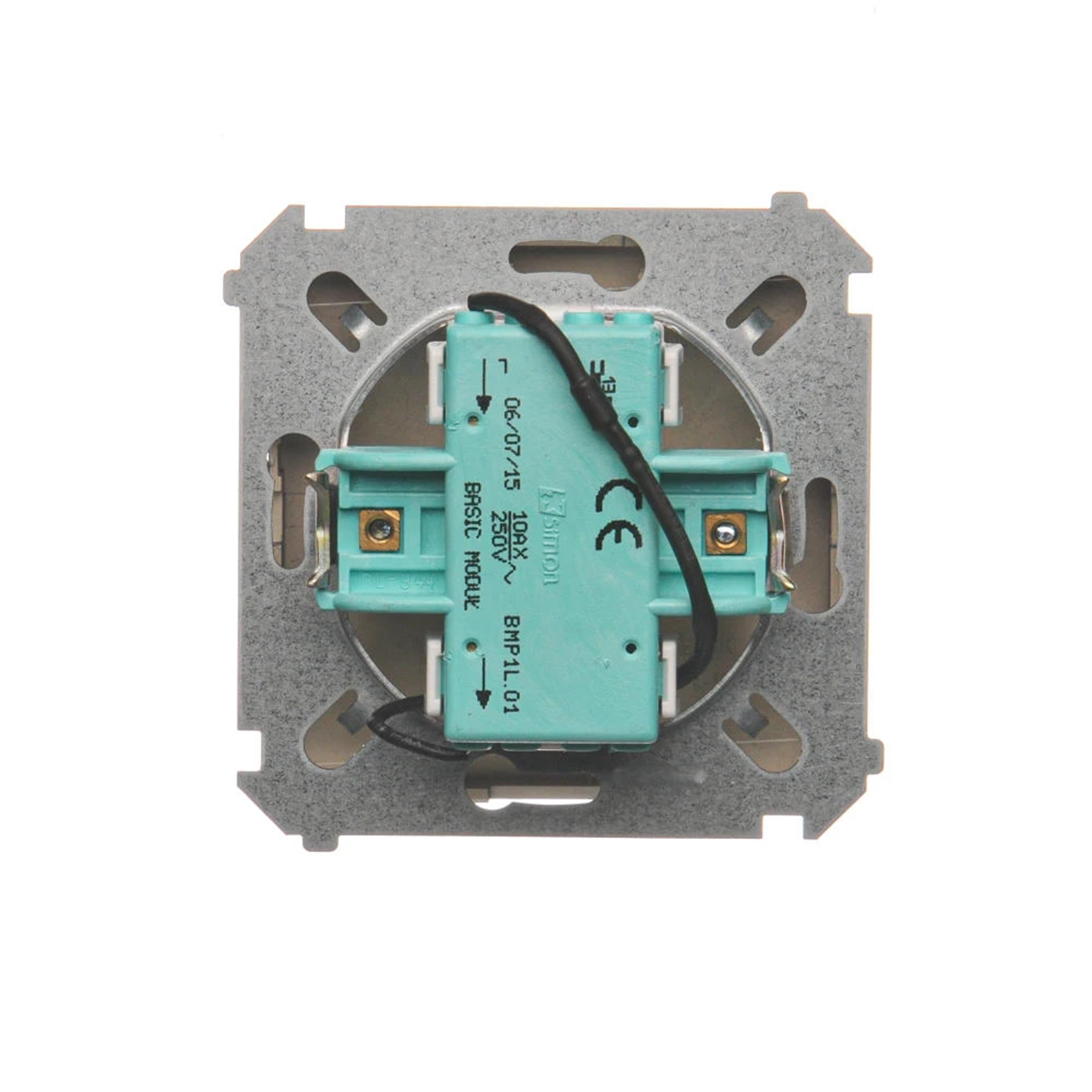

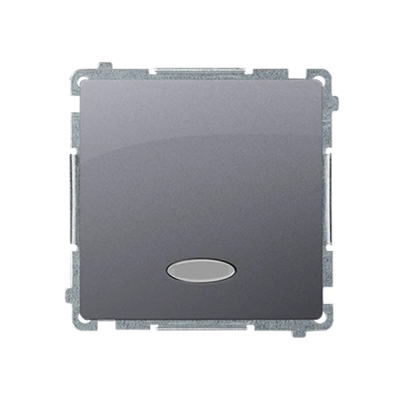

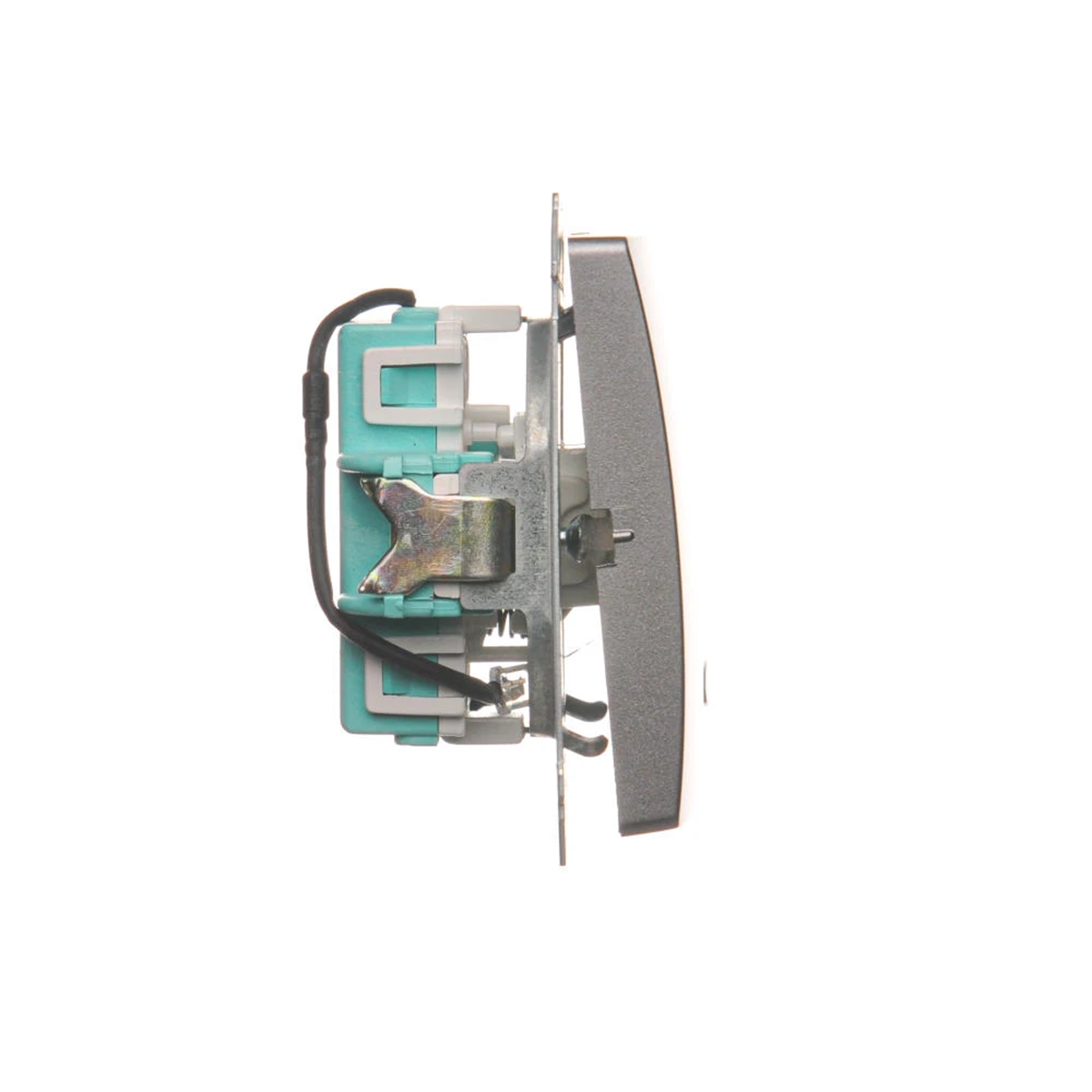

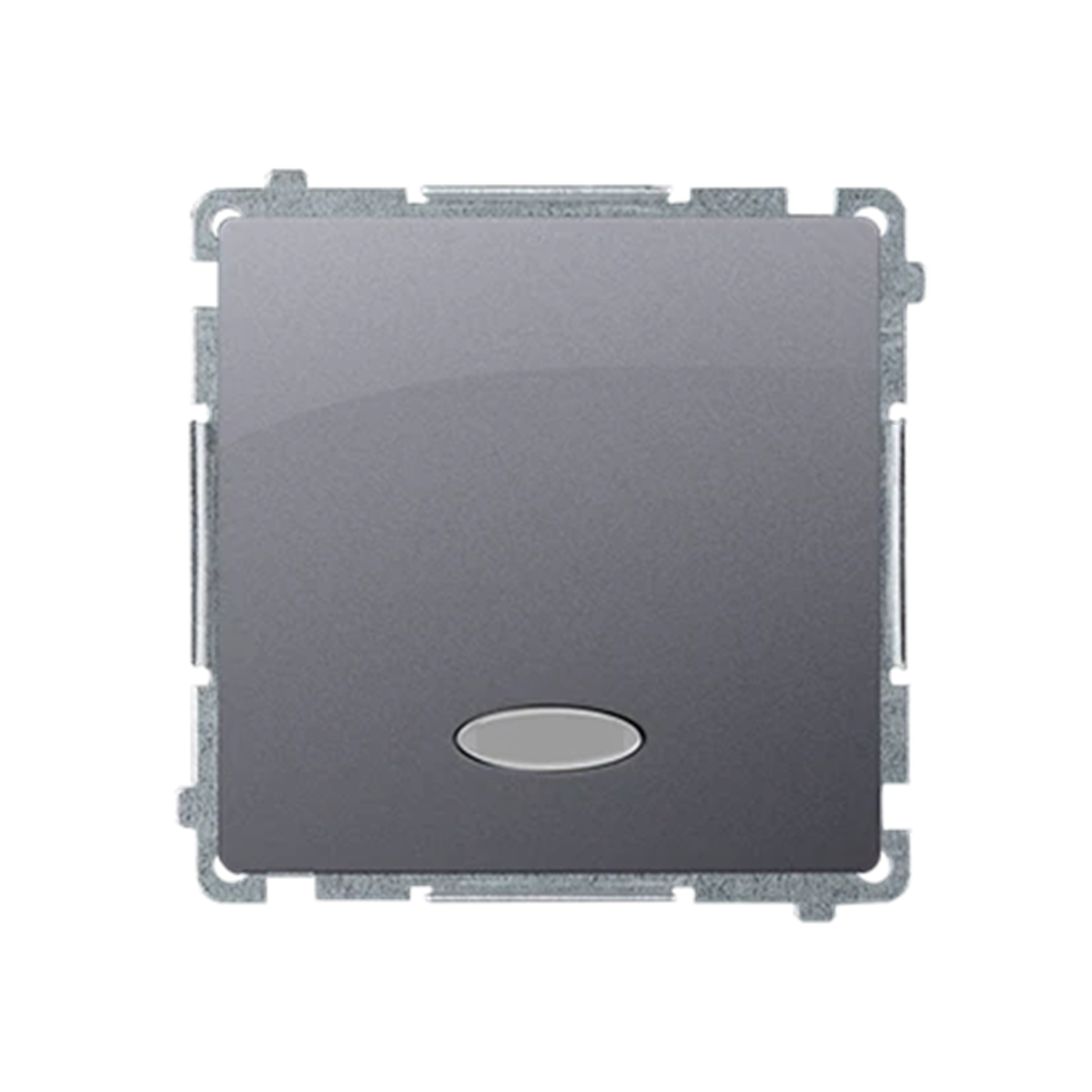

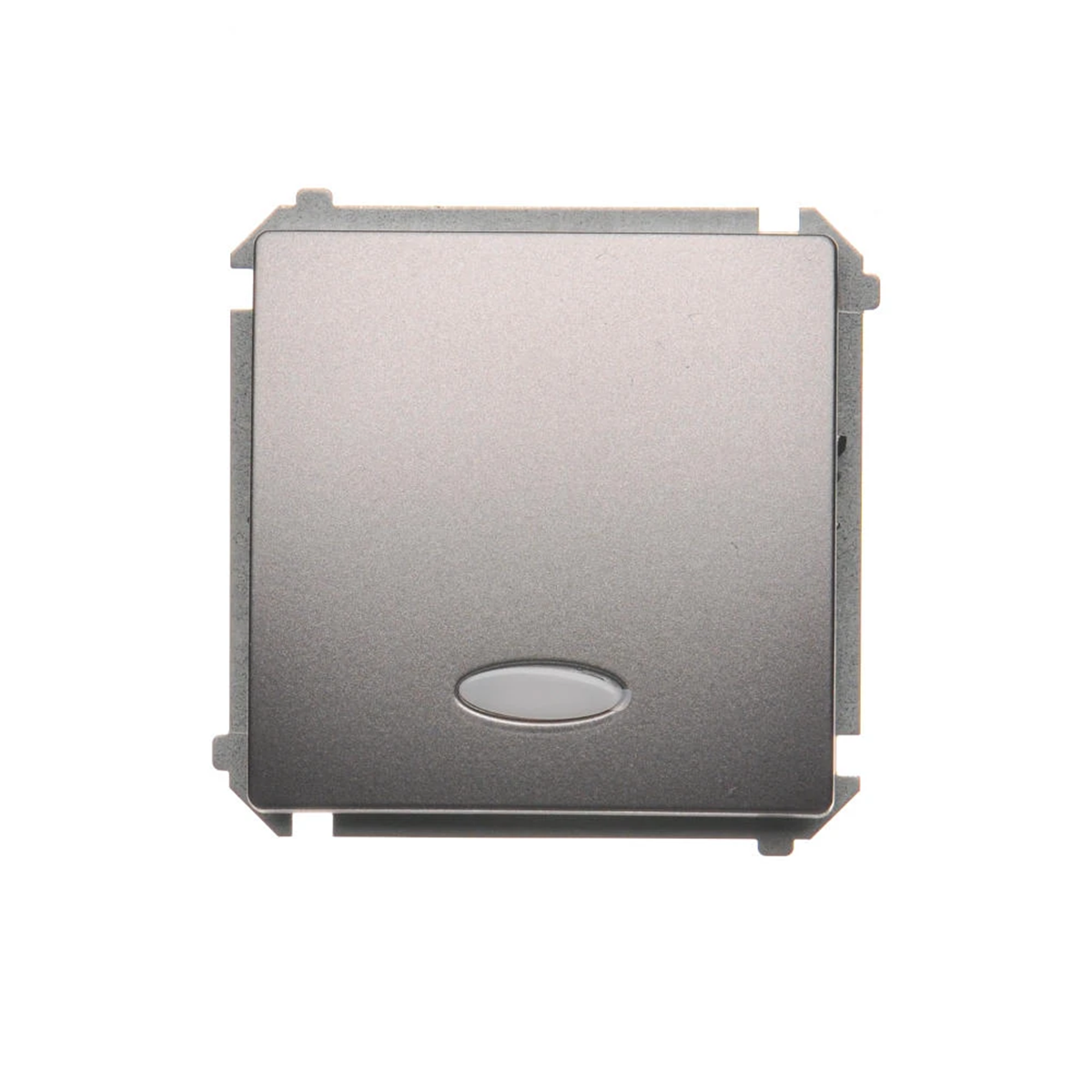

Single push-button without pictogram with backlight (module) 230V, metallic stainless steel BMP1L.01/21

local index:
MMZ045KONT
Catalog No:
BMP1L.01/21
EAN code:
5902787551933
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Price:
8,20 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Normal contact single with backlight, series Simon Basic, from the manufacturer Contact Simon. The product catalog number is < strong>BMP1L.01/21. Inox color, metallised.



FEATURES

  • Quick connectors.< /li>
  • Built-in, blue LED backlight (non-replaceable).
  • To obtain IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    Orientation LED
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Metallized stainless steel
  • Mounting depth [mm]
    24
  • Variant
    Ordinary
  • Exact material
    PC
  • Backlight color
    Blue

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,073 0,073 0,823
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
