Single push-button without pictogram with backlight (module) 10A 250V screw terminals white BMP1L.01/11

Name: Single push-button without pictogram with backlight (module) 10A 250V screw terminals white
Brand: KONTAKT-SIMON
SKU: MMZ117KONT
Price: 6.59 PLN

local index:

MMZ117KONT

Catalog No:

BMP1L.01/11

EAN code:

5902787551919

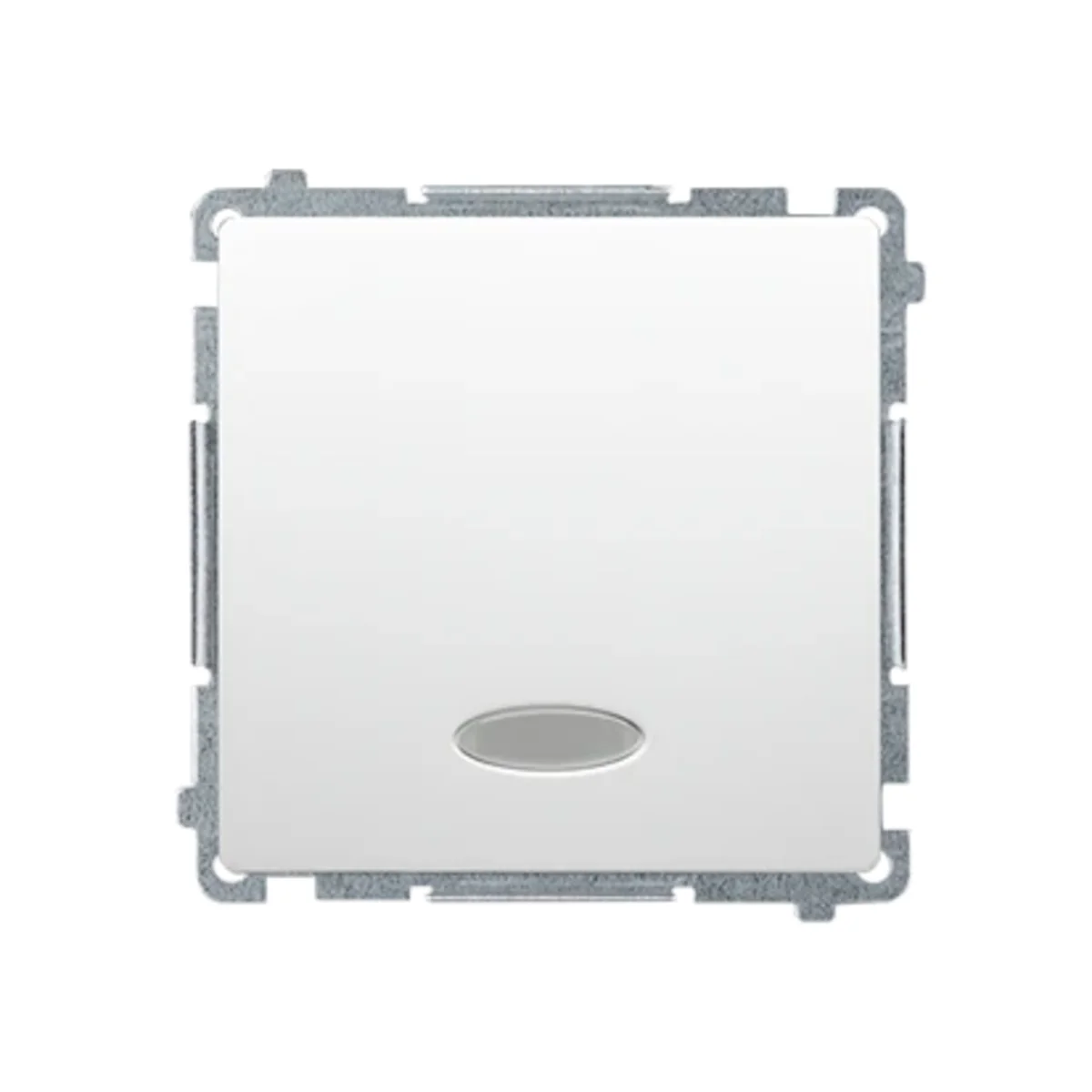

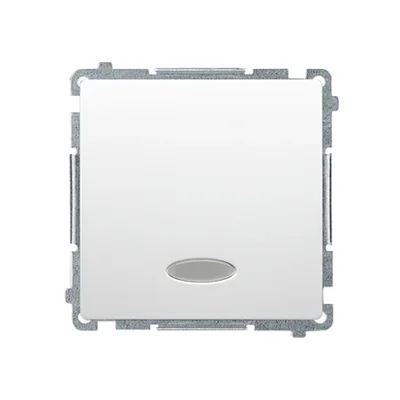

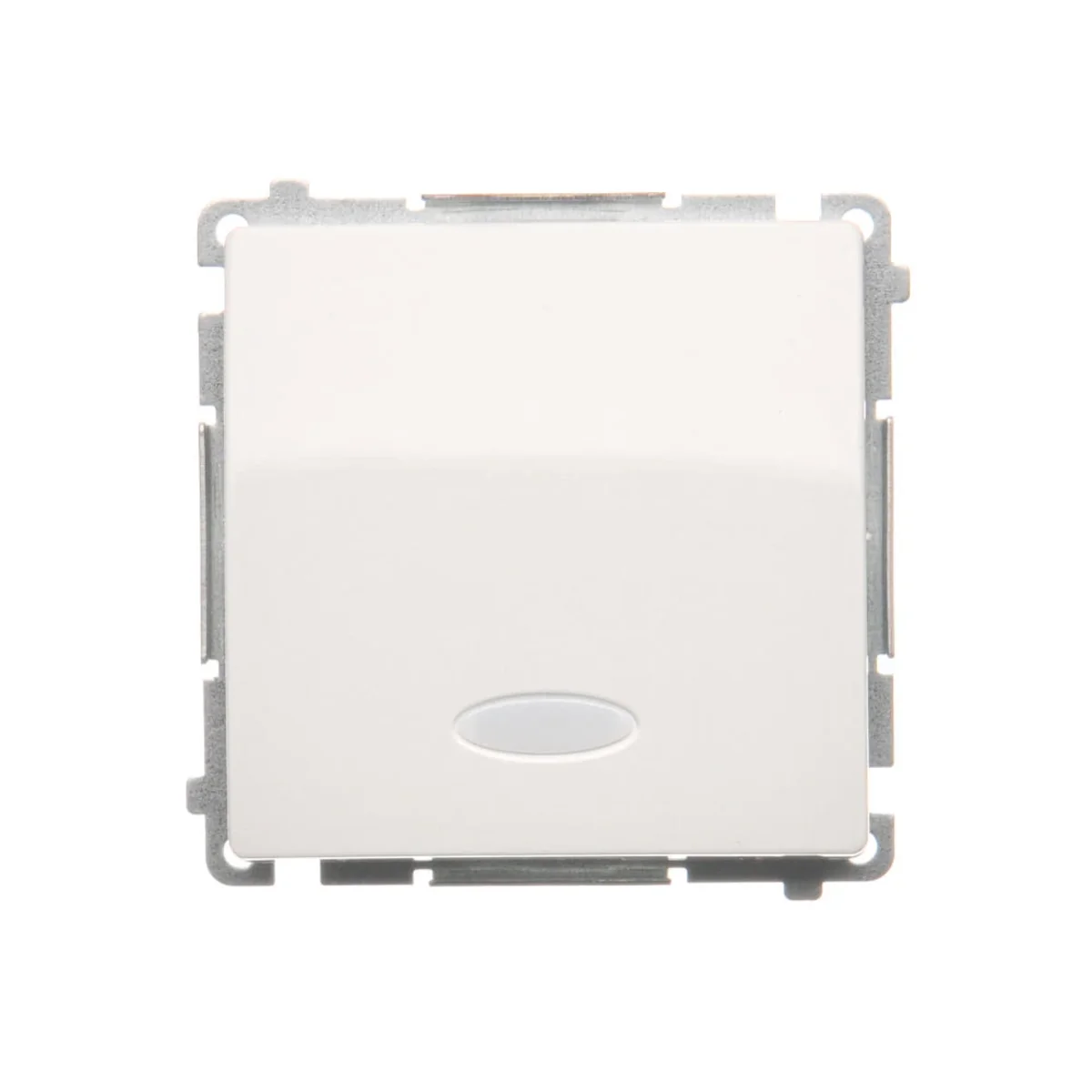

Single push-button without pictogram with backlight (module) 10A 250V screw terminals white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

6,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Operating buttonsingle with backlight, series Simon Basic, from the manufacturer Contact Simon. The product catalog number is < strong>BMP1L.01/11. In white.

FEATURES

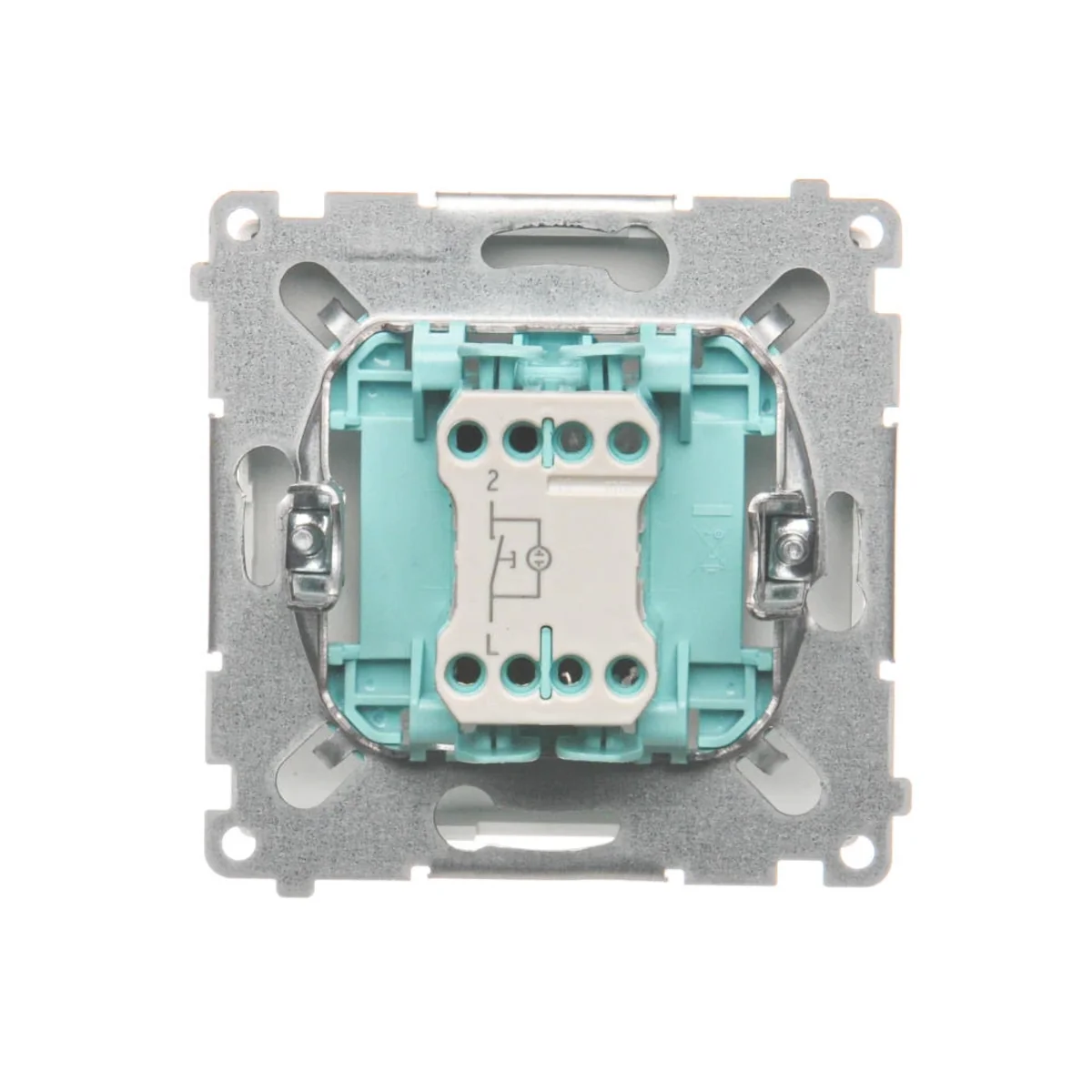

Quick connectors.
Built-in, blue LED backlight (non-replaceable).
To obtain IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..

SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

24
Variant

Ordinary
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Width [mm]

75
Version

Confident
Surface protection

Natural
Backlight

Yes
Terminal type

Threadless
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,073	0,073	0,823
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
