Single push-button without pictogram (module) 10A 250V gold quick connectors (metallic) DP1.01/44

Name: Single push-button without pictogram (module) 10A 250V gold quick connectors (metallic)
Brand: KONTAKT-SIMON
SKU: MMZ188KONT
Price: 7.59 PLN

local index:

MMZ188KONT

Catalog No:

DP1.01/44

EAN code:

5902787823382

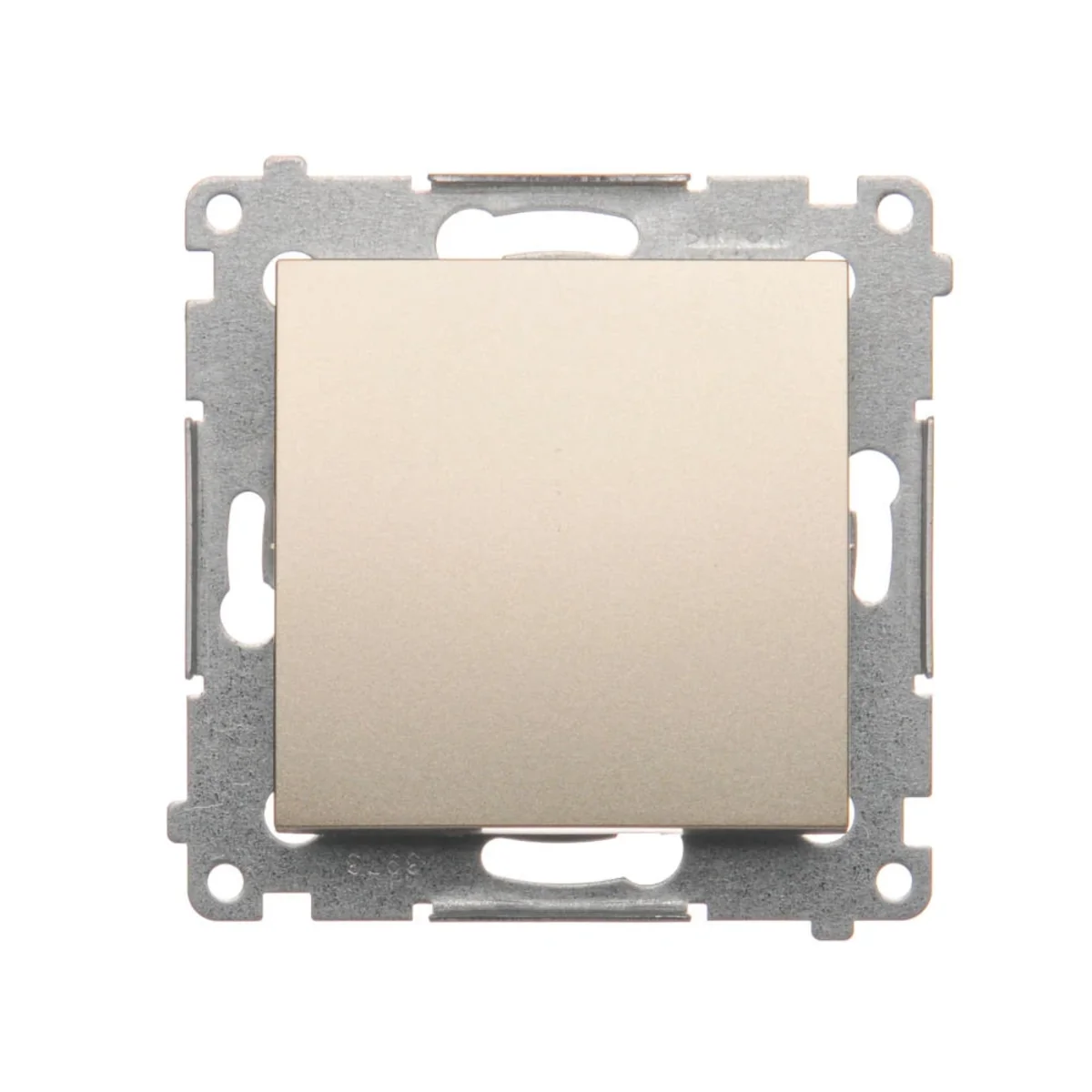

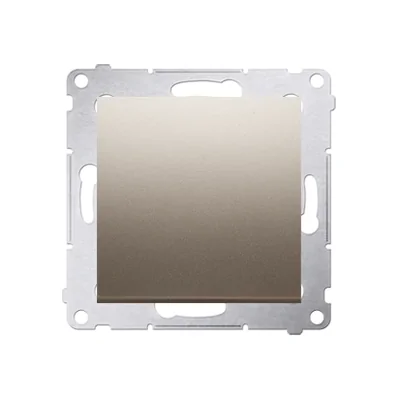

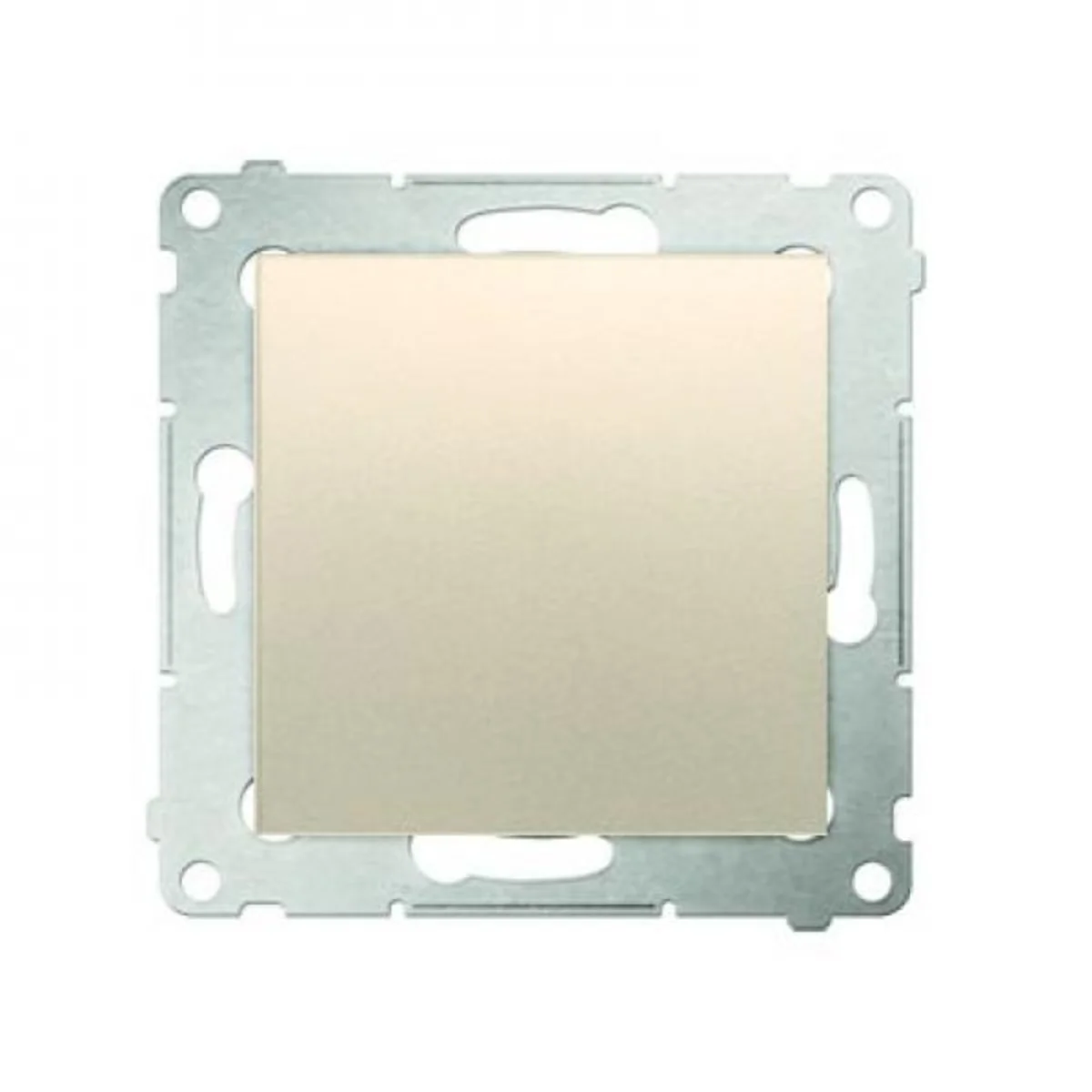

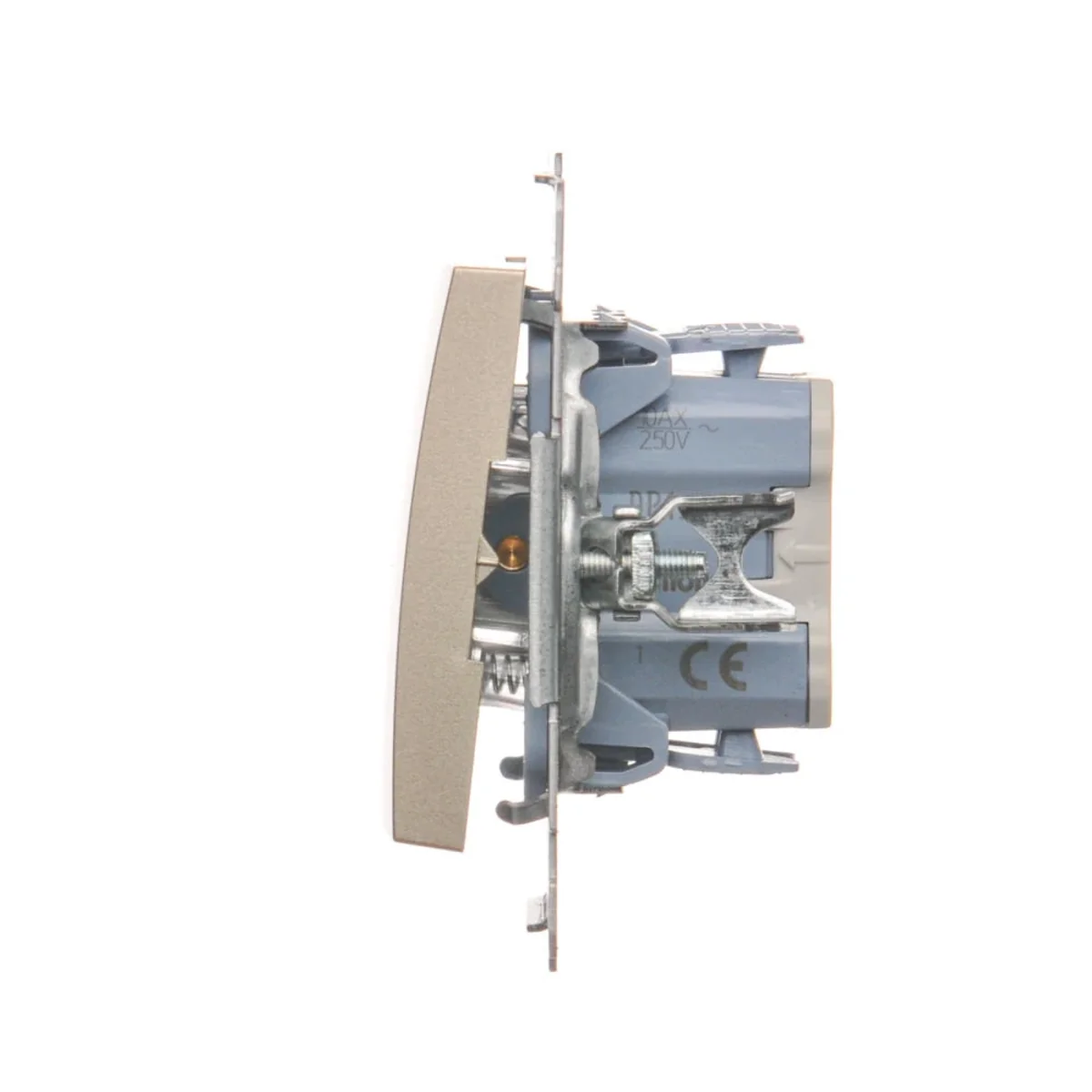

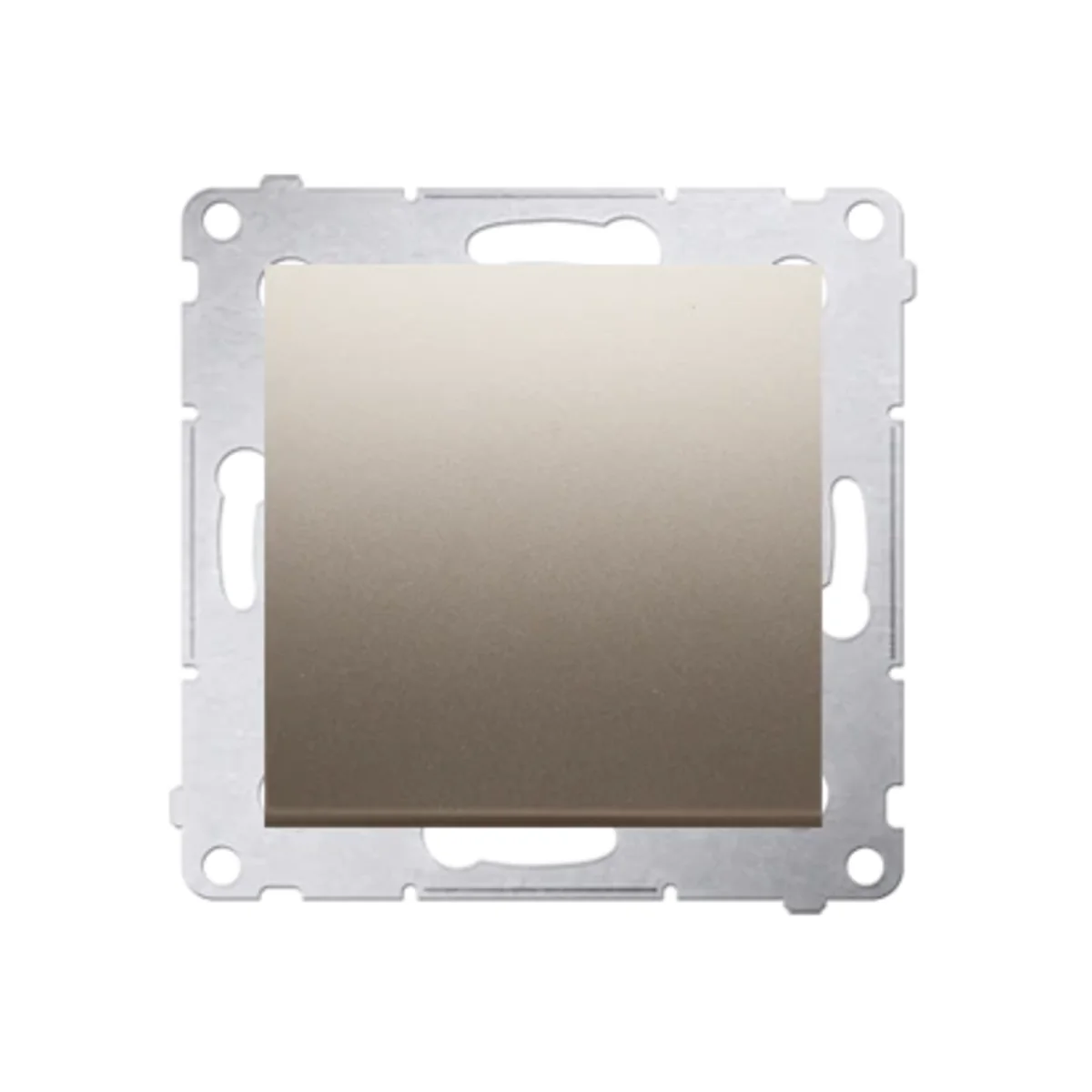

Single push-button without pictogram (module) 10A 250V gold quick connectors (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

7,59 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Operating pushbutton single Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DP1.01/44. Gold matt, metallised.

FEATURES

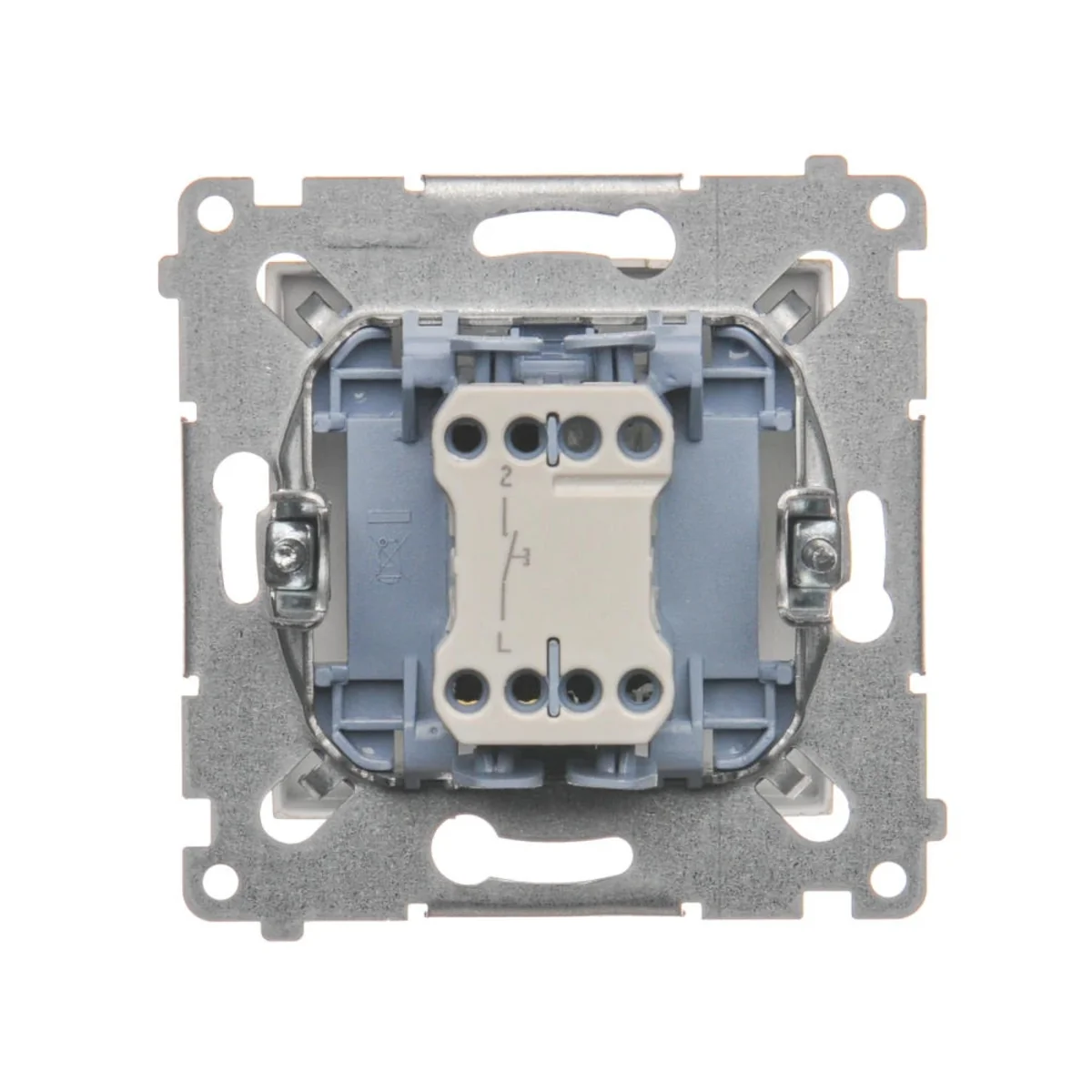

Quick connectors.
Without pictogram.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

Golden
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Version

Confident
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

26
Variant

Ordinary
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,686
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
