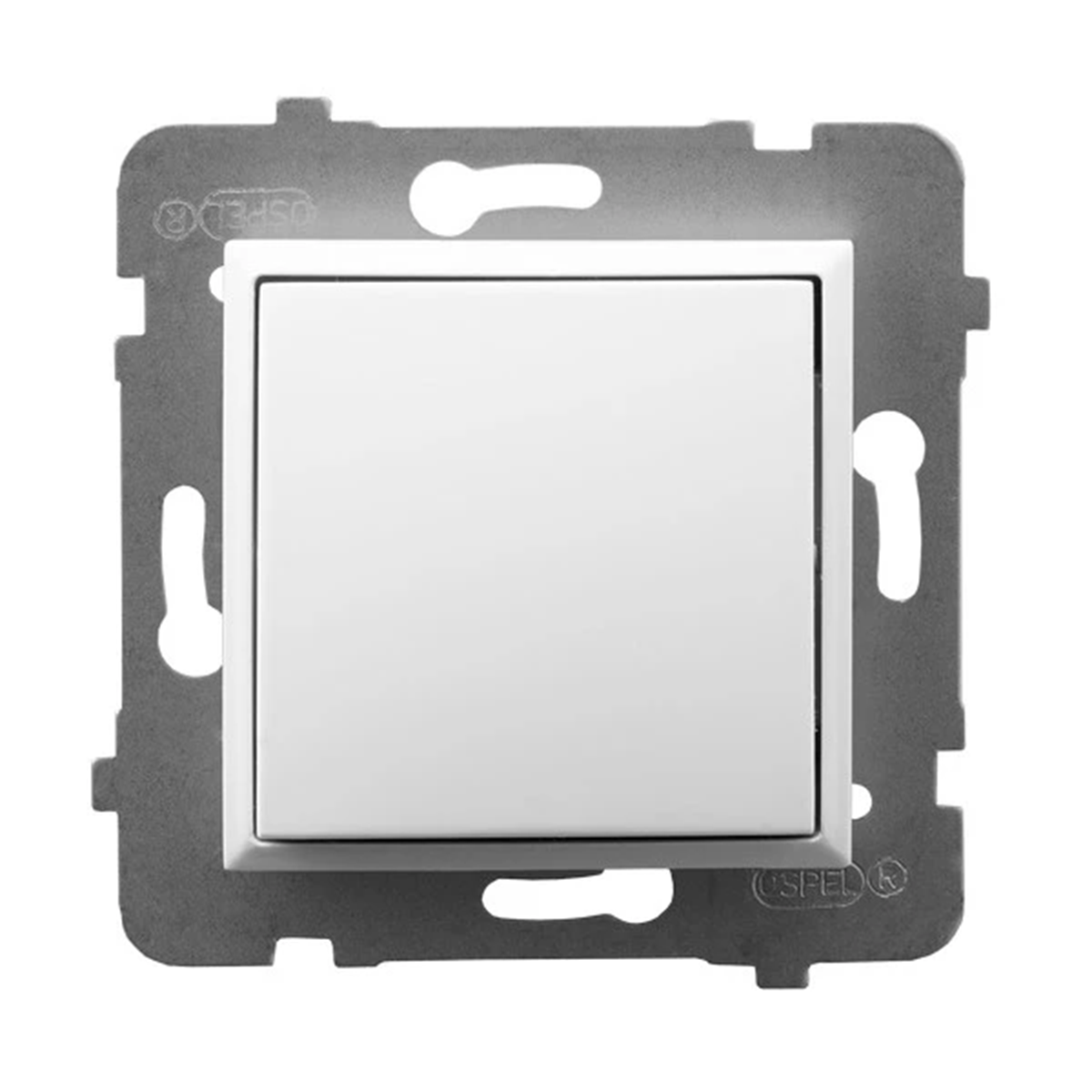

Single-pole white switch ŁP-1U/M/00

local index:
MMP108OSPE
Catalog No:
ŁP-1U/M/00
EAN code:
5907577482046
Manufacturer: OSPEL
Color: White
Material: Plastic
Installation: Flush-mounted
Price:
4,11 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 48 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-pole white switch

Technical data

  • Color
    White
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Mounting method
    Thread clamps
  • Type
    Fasteners
  • Dimension [mm]
    71x71
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Family
    ARIA
  • Level of security
    IP20
  • Fastener type
    Single
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    82 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    82 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Pudełko
Quantity 10 pcs.
Width (m) 0,162
Length (m) 0,237
Depth (m) 0,090
