Single-pole switch with LED signaling (module) 10A 250V quick connectors white DW1ZL.01/11

Name: Single-pole switch with LED signaling (module) 10A 250V quick connectors white
Brand: KONTAKT-SIMON
SKU: MMP097KONT
Price: 9.42 PLN

local index:

MMP097KONT

Catalog No:

DW1ZL.01/11

EAN code:

5902787822101

Single-pole switch with LED signaling (module) 10A 250V quick connectors white

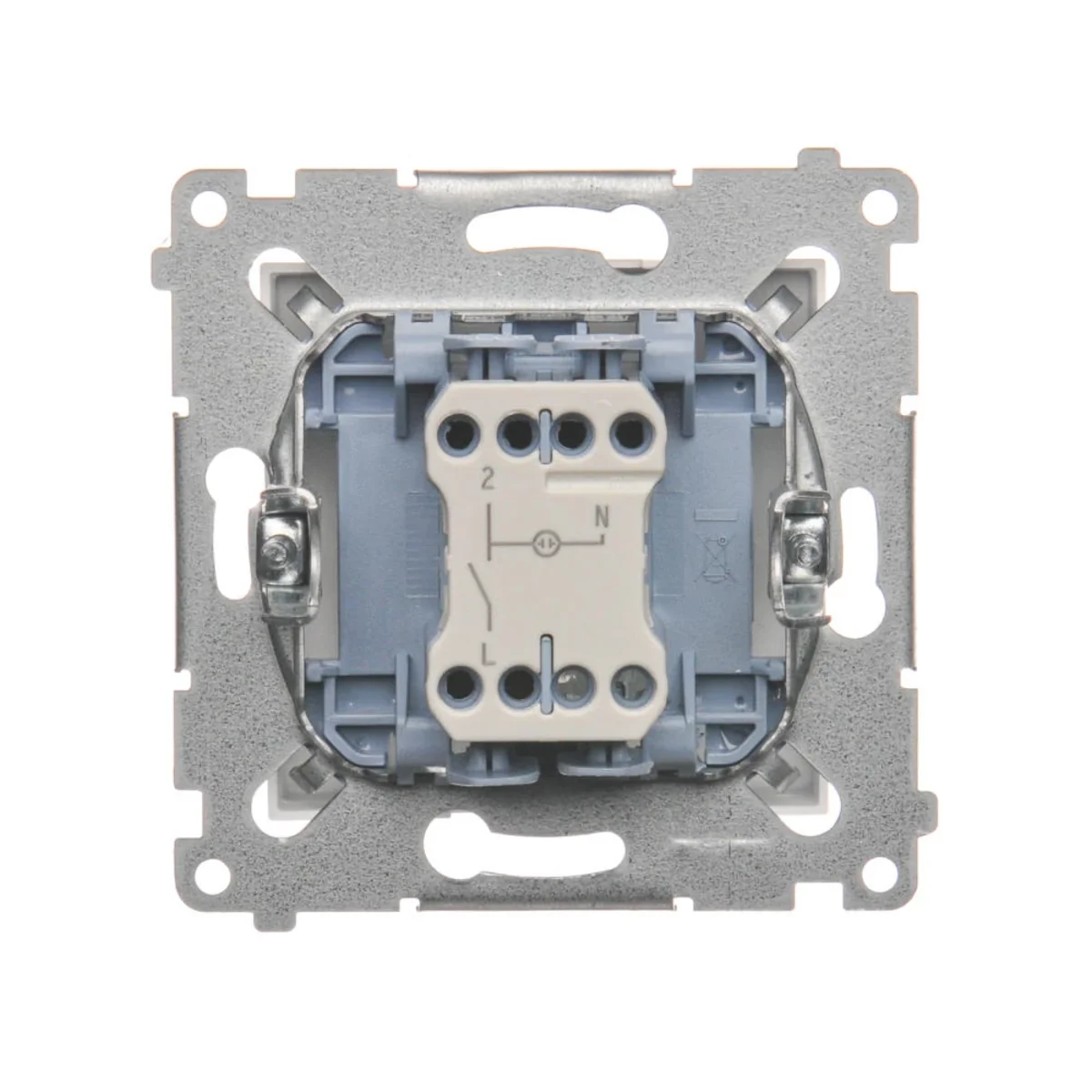

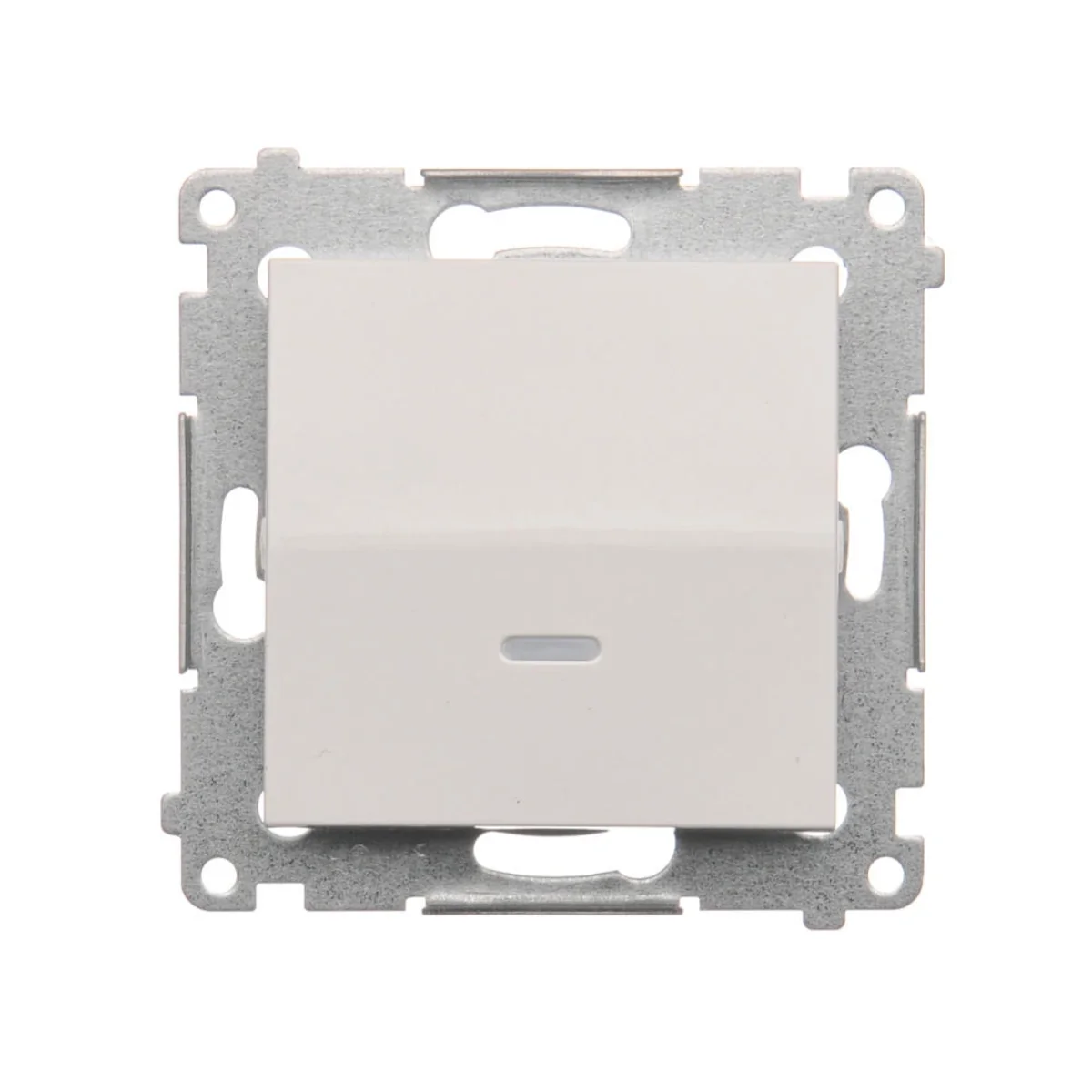

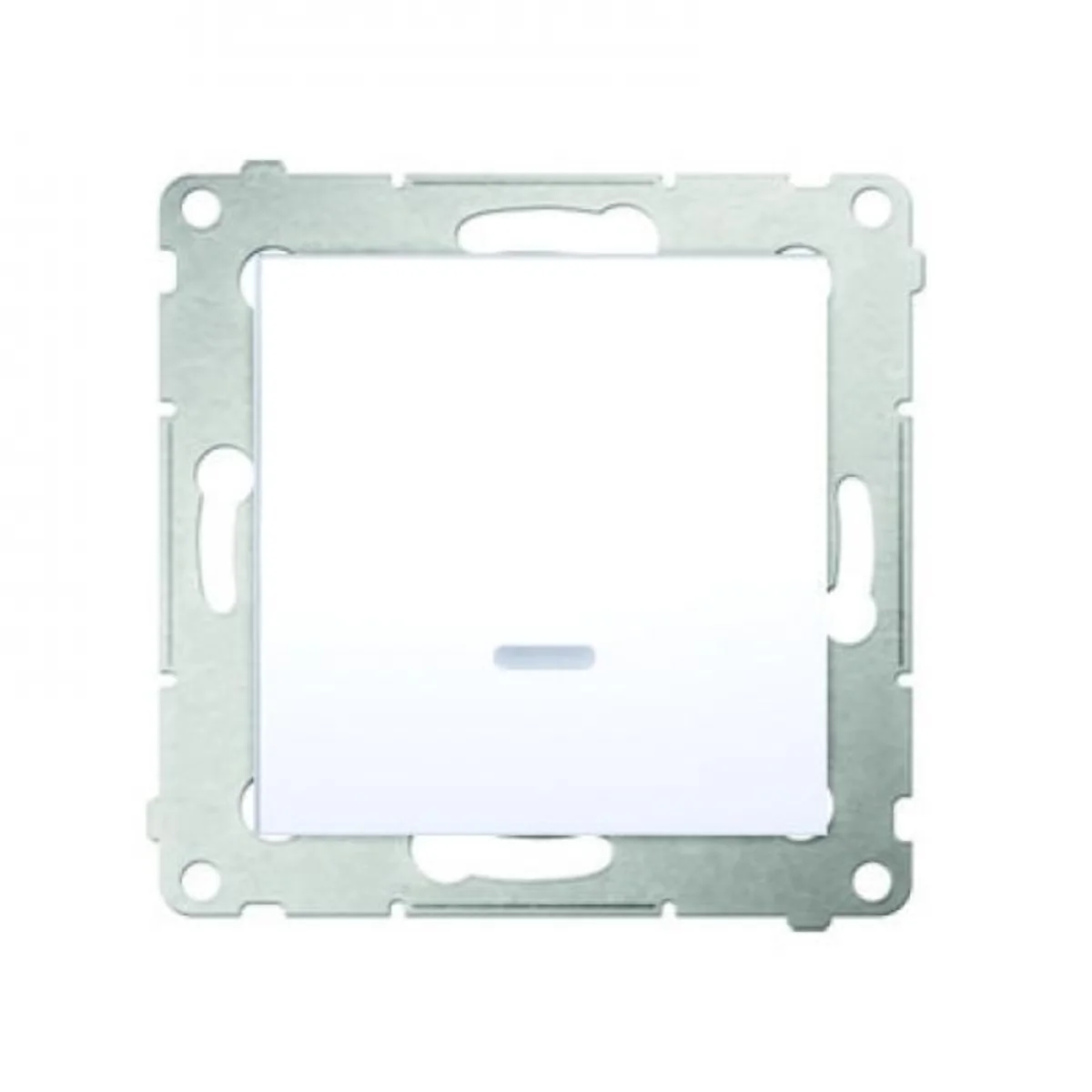

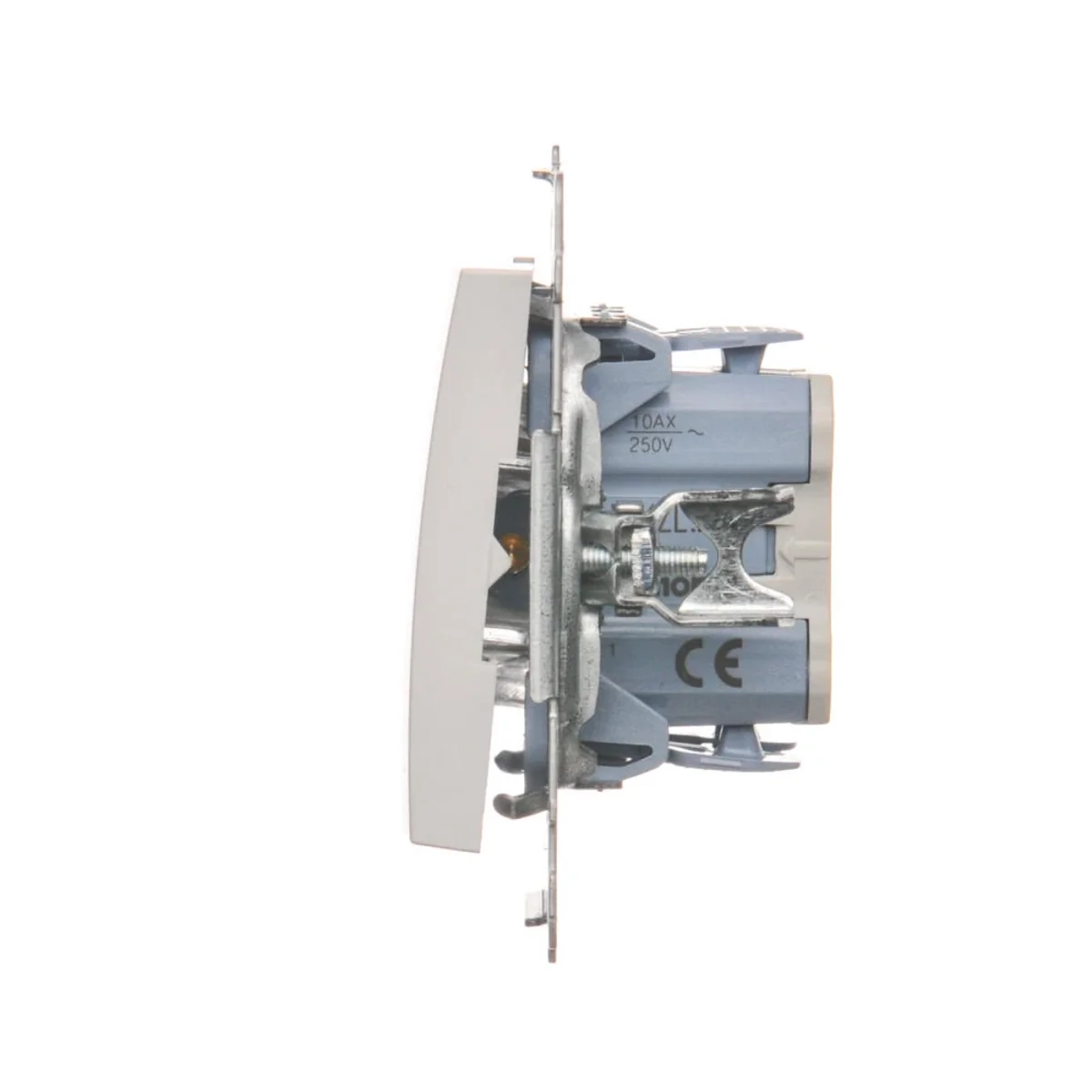

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

9,42 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Single-pole switch (bistable) of the Simon 54 series.

With signaling of activation LED (replaceable) .
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threadless
Exact material

PC
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Activation indication LED

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,058	0,058	0,669
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
